POWERHEAD
Page 4A-18 90-855347R1 JANUARY 1999
4. Remove exhaust manifold cover and seal.
5. Referring to Section 3B, remove air plenum/reed block/adaptor plate assembly from
cylinder block.
d
56166
a
c
b

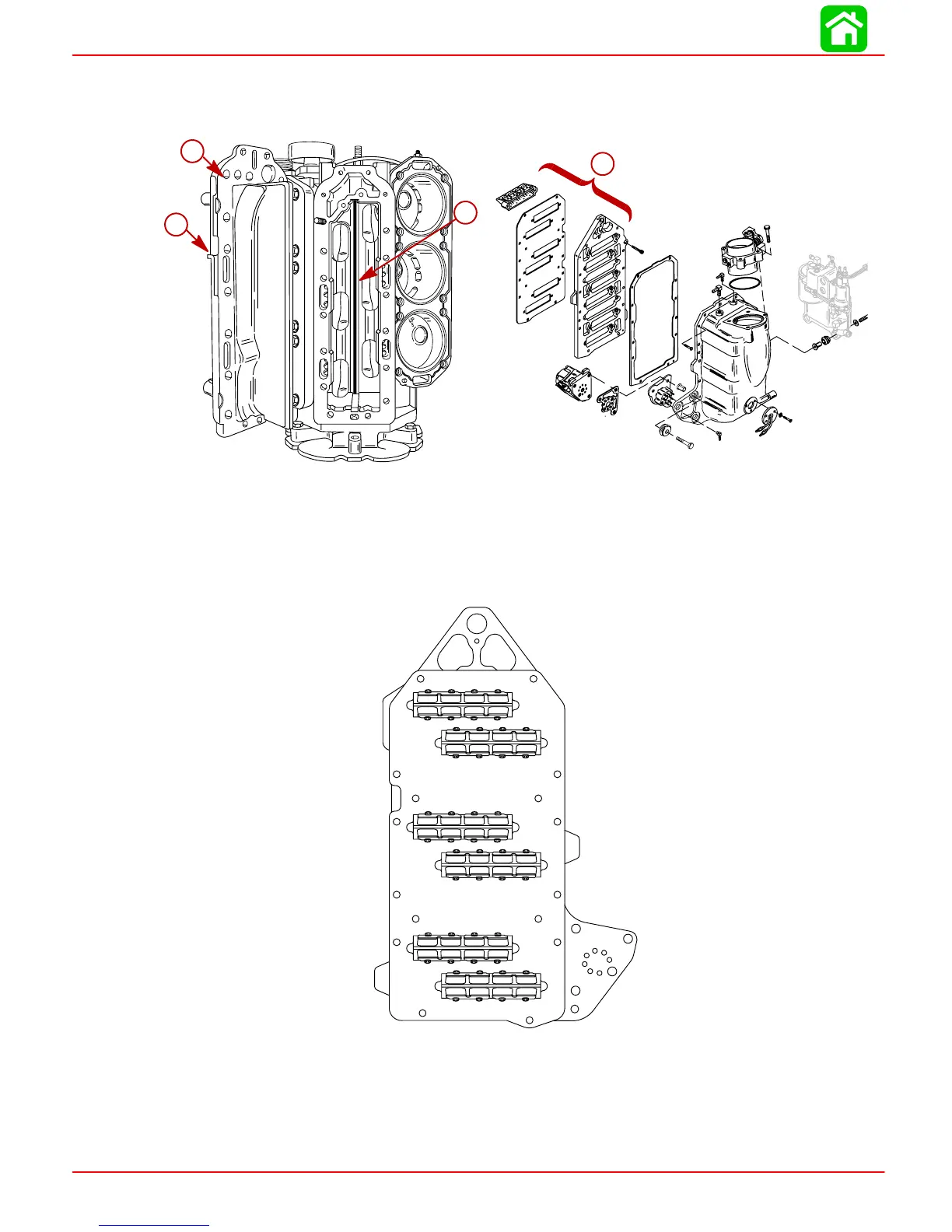

a-Exhaust Manifold Cover
b-Seal
c-Gasket
d-Reed Block/Adaptor Plate Assembly
6. Inspect reeds as outlined in “Cleaning and Inspection”.
56169
7. Remove bolts from end caps.
