POWERHEAD
90-855347R1 JANUARY 1999 Page 4A-19

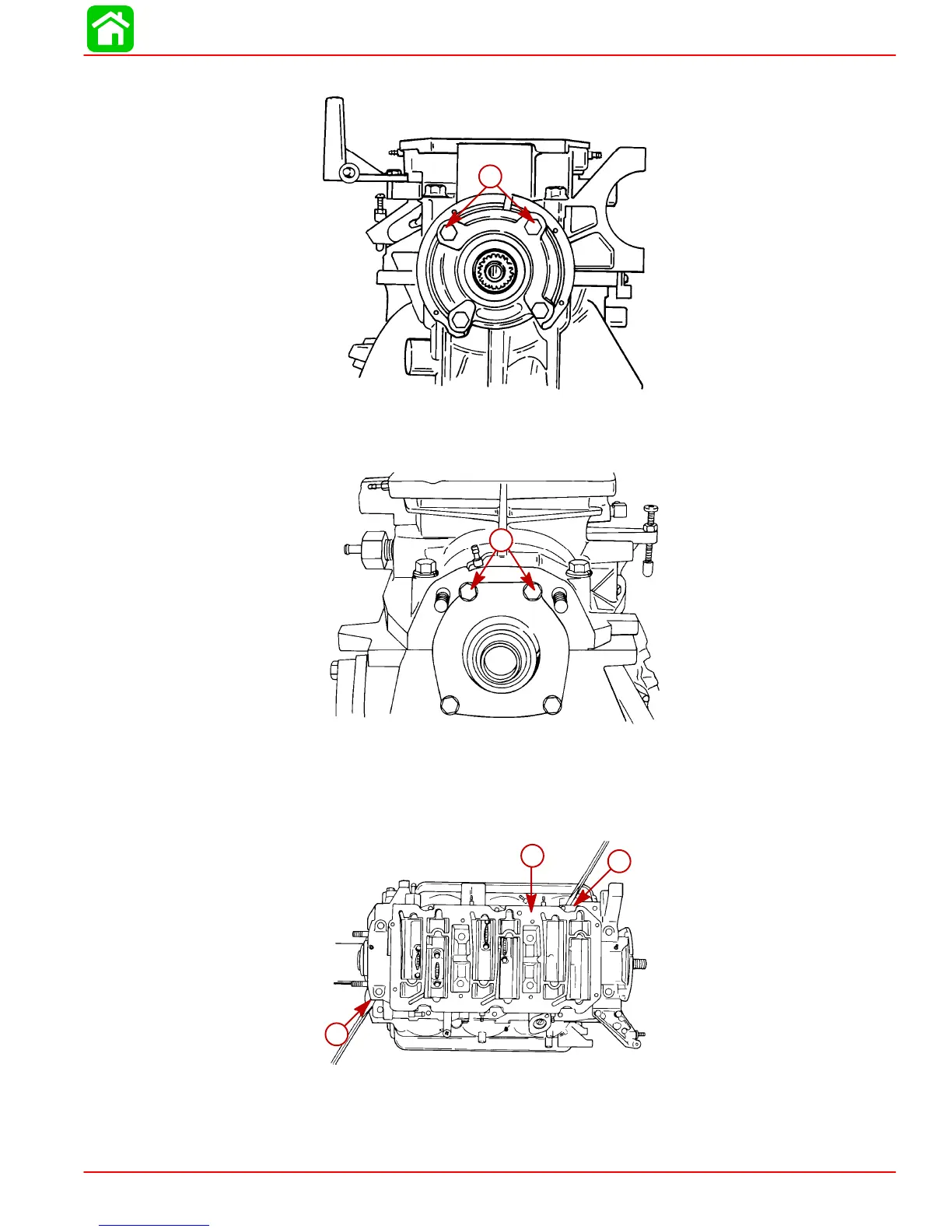

UPPER END CAP
51854
a
a-Crankcase Attaching End Cap Bolts
LOWER END CAP
51849
a
a-Crankcase Attaching End Cap Bolts
1. Remove bolts which secure crankcase cover to cylinder block.
2. Pry crankcase cover off cylinder block using pry bars in locations shown.
51845
a
b
a
a-Pry Points
b-Crankcase Cover
