Mercury Racing 500R User Manual

REPLACING THE TRIM THRUST GUIDE WEAR PADS
IMPORTANT:When replacing the trim thrust guide wear pads, replace both
pads and install new retaining hardware.

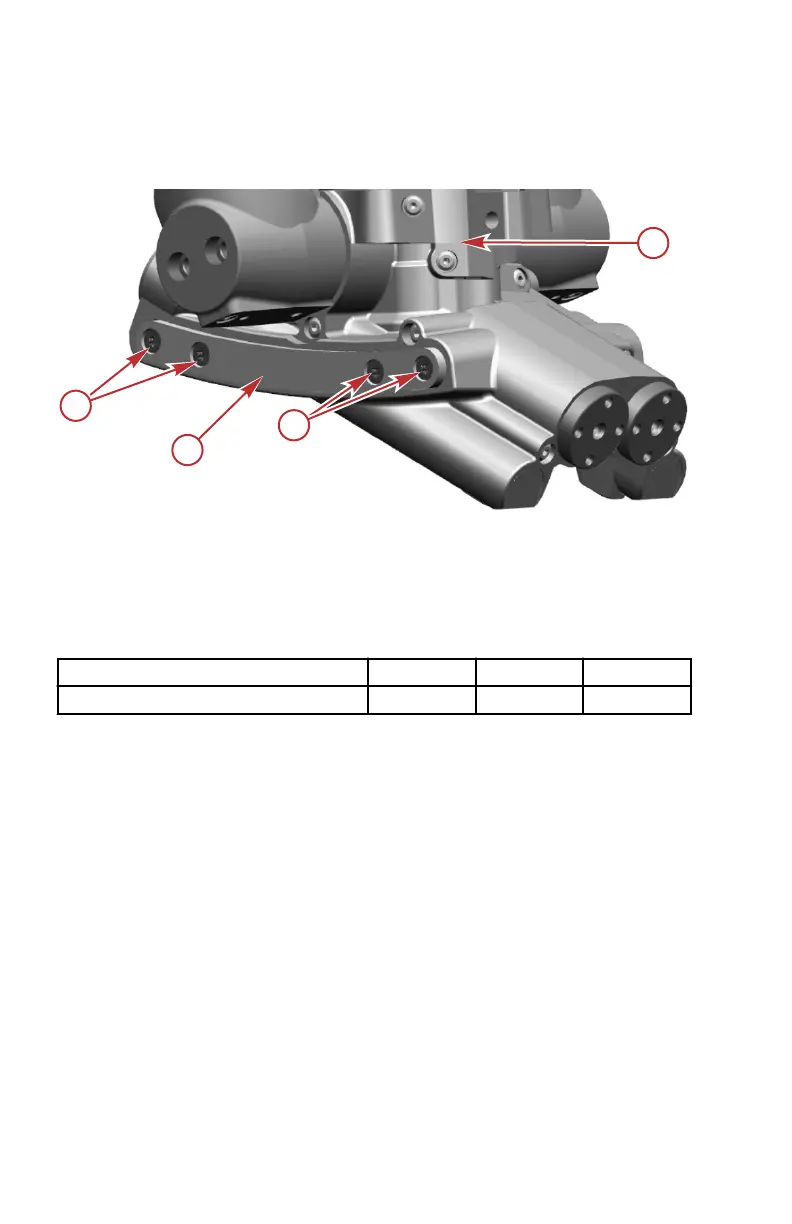

a - M6 x 20 screw with patch lock pad (8 quantity, 4 on each trim wear
pad)
b - Trim thrust guide wear pad (2 quantity)
c - Trim manifold
Description Nm lb‑in. lb‑ft
M6 x 20 screw (8) 6 53 –
Cooling System Strainers
IMPORTANT:Lower cowl removal is necessary to access the strainers.
Refer to the appropriate service manual section for lower cowl removal and
installation procedures.
SUPPLY HOSE STRAINER
IMPORTANT:The two cooling hoses attached to the strainer housing can
remain attached during disassembly and cleaning.
1. Remove the two M6 x 16 screws securing the elbow to the strainer
housing.
a
a
a
a
b
c
74679
MAINTENANCE
 112 eng

Mercury Racing 500R Specifications

General

Displacement	4.6L
Horsepower	500 hp
Full Throttle RPM	5800-6400
Fuel Induction System	Electronic Fuel Injection (EFI)
Steering	Electro-hydraulic power steering
Gear Ratio	1.60:1
Induction	Supercharged
Fuel Type	91 Octane (R+M/2) Premium Unleaded
Shaft Length	20 in (508 mm), 25 in (635 mm), 30 in (762 mm)
