4
300Mbps Whole Home Mesh Wi-Fi System
Halo S3
Chapter 2 Connect the Router
2.1 Position Your Router
• The product should not be located in a place where it will be exposed to moisture
or excessive heat.
• Place the router in a location where it can be connected to multiple devices as well
as to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do
not create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from devices with strong electromagnetic reference, such as
Bluetooth devices, cordless phones and microwaves.
2.2 Connect the Main Router
Follow the steps below to connect your router.

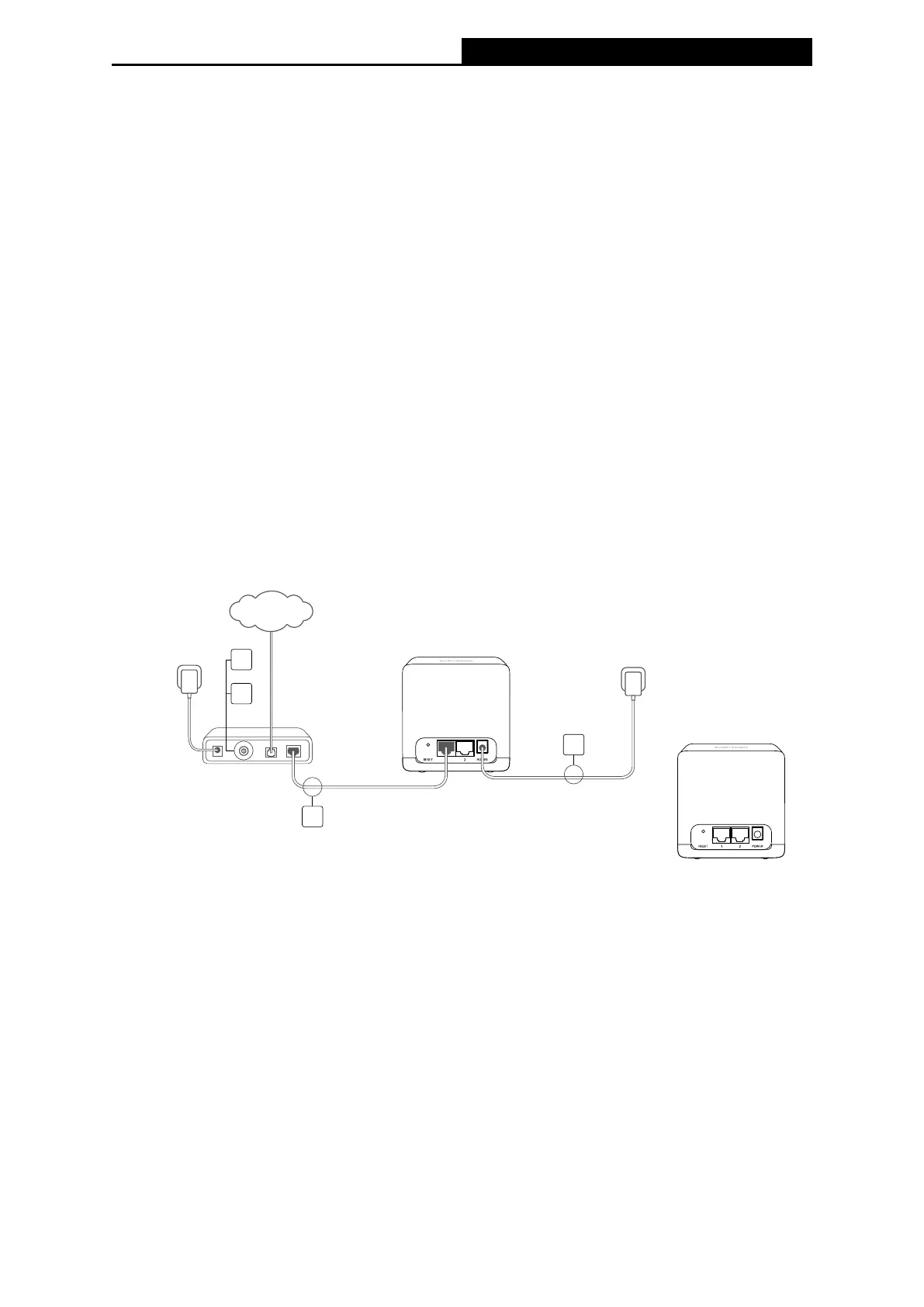

Connect the hardware according to the following diagram. If you have multiple mesh
routers, choose one to be the main router first.
Modem
Main Router
More Router(s)
Power Adapter
1
4
2
Power Adapter
3
INTERNET
*Images may dier from acutal products.
If your internet connection is through an Ethernet cable from the wall instead of
through a DSL/Cable/Satellite modem, connect the cable directly to either Ethernet
port on your router, and follow Step 3 only to complete the hardware connection.
1. Turn o the modem, and remove the backup battery if it has one.
2. Connect the modem to either Ethernet port on the router.
3. Power on the router, and wait for it to start.
4. Turn on the modem.
To Next Page
