7 Assembly

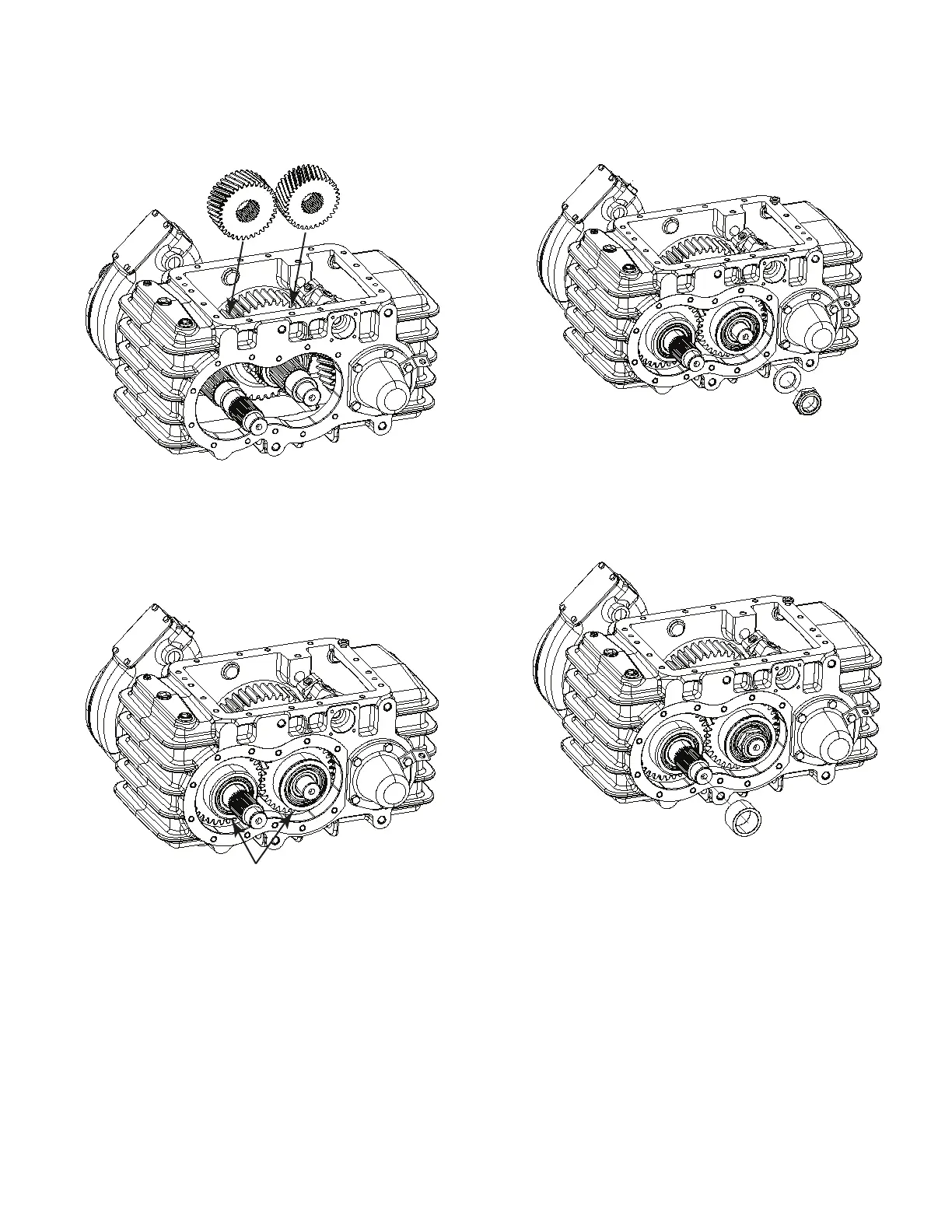

21. Install the direct drive gears onto the intermediate and rear output
shafts until the retaining rings are fully seated into the grooves on
both of the direct drive gears. Figure 7.45.
4018277a
Figure 7.45
22. Install the heated bearings onto the intermediate and rear output
shafts. Figure 7.46.
Bearings
4018278a
Figure 7.46
23. Install a washer and lock nut onto the intermediate shaft using
Loctite 290 threadlocker on the threads. Torque to specifi cation.
Figure 7.47.
4018279a
Figure 7.47
24. Slide the spacer onto rear output shaft. Figure 7.48.
4018280a
Figure 7.48
