7 Assembly

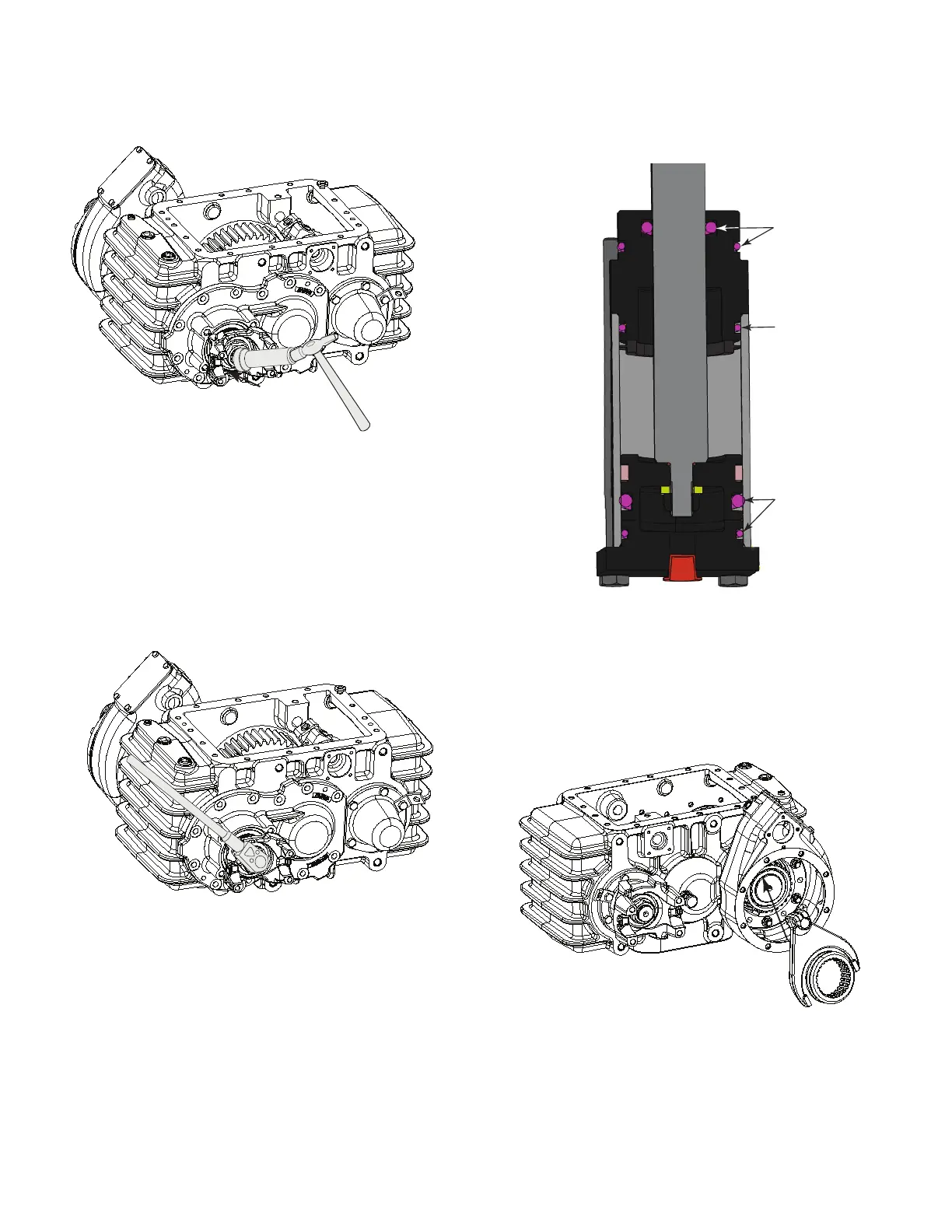

29. Tap rear output shaft toward the front of the case to seat the
bearing against the front declutch housing. Figure 7.53.
4018285a
Figure 7.53
30. Using a torque wrench on the yoke nut, check the output
shaft rolling torque is 65±8 lb-in. If the rolling torque is not
within specifi cation, the front declutch housing will need to be
removed and shims of a different thickness used to obtain the
specifi cation. Figure 7.54.
4018283a
Figure 7.54
31. Place new o-rings onto all shift cylinder components that were
disassembled. Coat all o-rings with Lubriplate or similar.
Figure 7.55.
O-rings
O-ring
O-rings
4018286a
Figure 7.55
32. Place the front declutch shift fork and collar into housing.
Figure 7.56.
4018287a
Figure 7.56
