Copyright Meritor, Inc., 2021
MM-2034 / Issued 02-21
Page 43 Printed in USA
7 Assembly

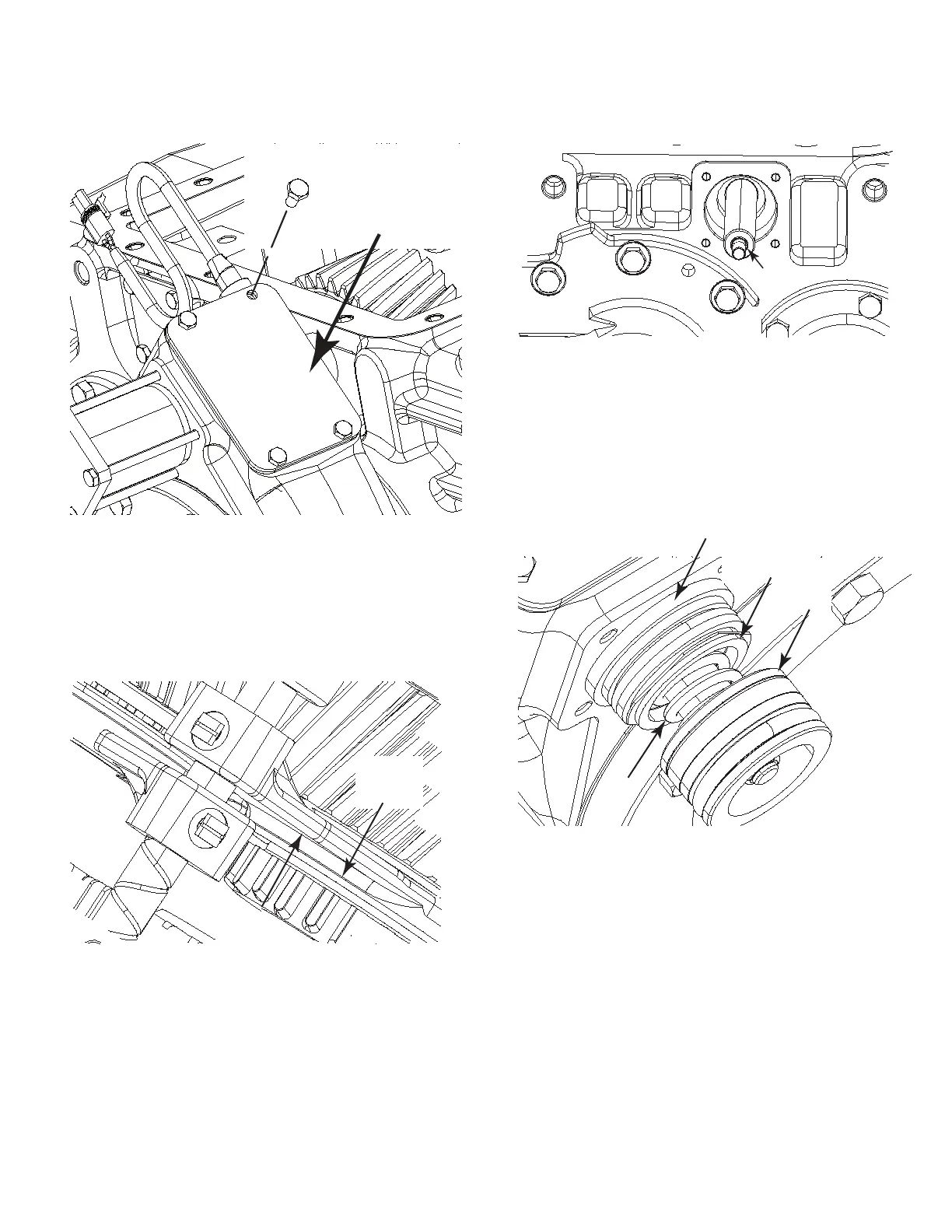

41. Install front declutch cover plate using Loctite 242 threadlocker
on the bolt threads. Torque to specifi cation. Figure 7.65.
Front Declutch
Cover Plate
4018206a
Figure 7.65
42. Place the range shift forks into the housing with the fl at sides
facing each other. Then insert the shift shaft in through the
housing and through the shift forks. Figure 7.66.
Flat
Side
Flat
Side
4018293a
Figure 7.66
43. Place a new o-ring on the shoulder of the shift shaft. Then coat
the o-ring with Lubriplate or similar. Figure 7.67.
O-ring
4018294a
Figure 7.67
44. Install the shift cylinder adapter to the housing. Then install
the nylon stop ring, spring, and piston onto the shaft using
Loctite 272 threadlocker on the retaining nut threads. Torque to
specifi cation. Figure 7.68.
Piston
Stop Ring
Adapter
Spring
4018205a
Figure 7.68
To Next Page
