Page 44
7 Assembly

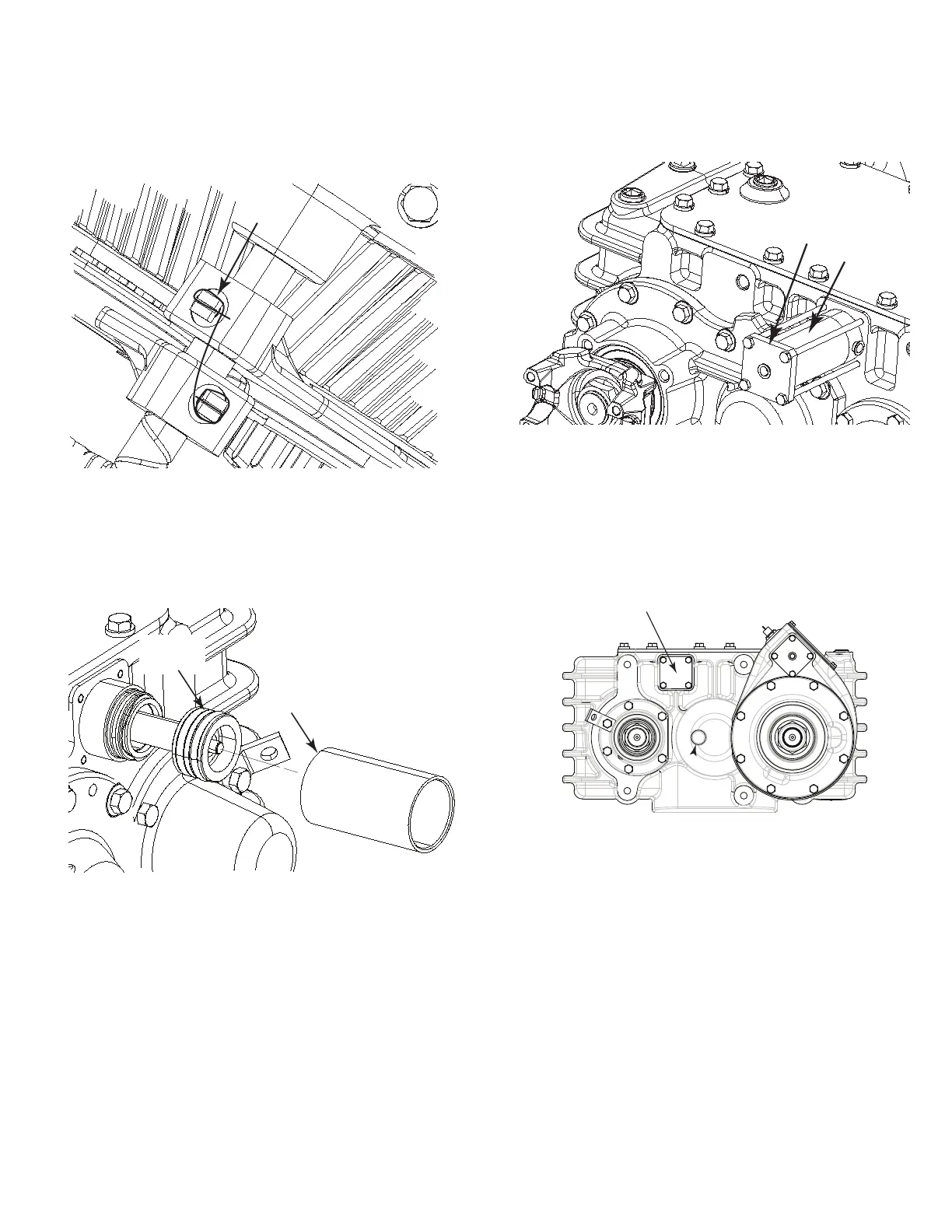

45. Align the grooves in the shift shaft with the holes in the shift forks.
Apply Loctite 272 threadlocker to the bolt threads and install the
bolts. Torque to specifi cation. Install the lock wire as shown below.
Figure 7.69.
Lock
Wire
4018197a
Figure 7.69
46. Install an oil soaked felt wiper in the large groove on the range
shift piston and slide the cylinder onto the piston. Figure 7.70.
Oil-Soaked
Felt Wiper
Shift
Cylinder
4018295a
Figure 7.70
47. Install the shift cylinder cap onto cylinder using Loctite 242
threadlocker on the bolt threads. Torque to specifi cation. Figure
7.71.
Shift
Cylinder
Shift
Cylinder
Cap
4018296a
Figure 7.71
48. Install the shift shaft cover plate using Loctite 242 threadlocker on
the bolt threads. Figure 7.72.
Shift Shaft
Cover Plate
4018297a
Figure 7.72
