Installation location requirements
Minimum space required

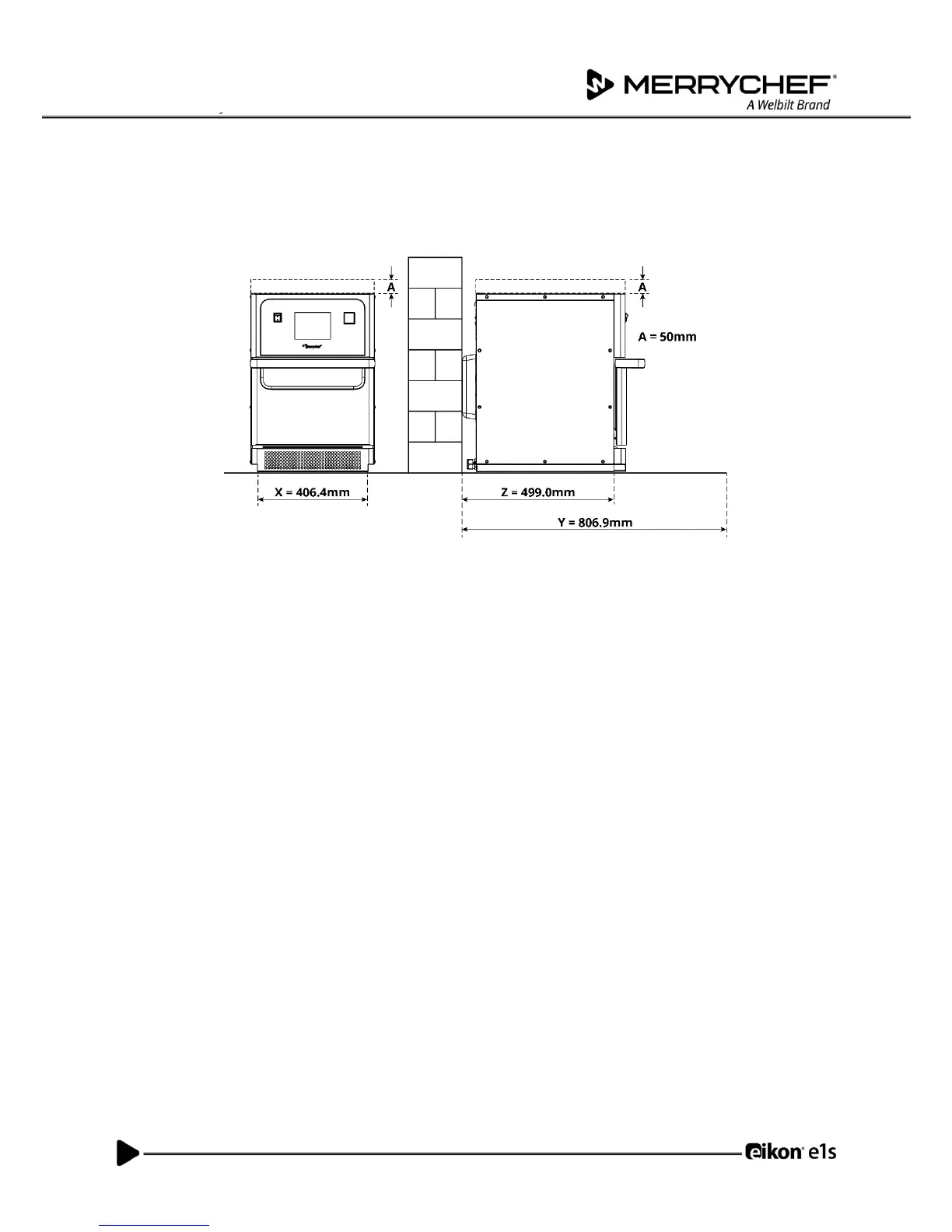

Figure 2.4 shows the space required to install the appliance. It also shows the minimum horizontal distances from
adjacent walls and surfaces. The safety clearance on the top must also always be complied with.
Figure 2.4: Minimum space requirements
• Safety clearance from the top (A) = 50mm (2”)
• Depth requirement:
Width of appliance (X) = 406.4mm (16”)
Total depth with door open (Y) = 806.9mm (31.8”)
Counter depth (Z) = 499.0mm (19.6”)
• Safety clearance on left-/right-hand side / at rear: 0mm
Actual space requirements
Far more room than the specified minimum space requirement is needed in front of the appliances to operate the
microwave combination ovens safely, in particular to handle hot food safely. Larger wall gaps are generally
recommended to provide access for servicing.
In the installation location, the following parts must not be covered, adjusted or blocked:
• Air vent on the rear of the appliance
• Air filter at the front of the appliance
Mounting the appliance on a work surface
The appliance can be mounted on a suitable work surface that can bear the weight.
Observe the following rules to ensure that the appliance is installed in a stable situation:
• The worktop must have a non-slip surface.
• The supporting surface must have the following properties:
• The supporting surface must be flat and level.
• The supporting surface must be able to bear the in-use weight of the appliance, plus the weight of
the structure supporting the appliance as follows: 50Hz = 46kg /101lbs and 60Hz = 45kg / 99lbs.
