ELECTRICAL INSTALLATION6
Establishments with standard (Type ‘B’) circuit
breakers are sensitive to ‘surges’ which occur on
switching on freezers, refrigerators and other
catering equipment, including microwave ovens.
Because of this, we strongly recommend that
a separate Type ‘C’ circuit breaker (designed
specically for this type of equipment) must be
tted. An individual, suitably rated circuit breaker
should be tted for each oven installed.
DANGER!
THIS APPLIANCE MUST BE EARTHED.
FAILURE TO DO SO MAY RESULT IN
ELECTRIC SHOCK AND DEATH.
The oven must be connected to a separate
electrical supply installed by a qualied and
approved electrician.
A suitably rated isolating switch with a 3mm
contact gap on all poles should be tted for
each oven installed.
WARNING: HIGH LEAKAGE CURRENT
EARTH CONNECTION IS ESSENTIAL.
If you are in any doubt about your electrical supply, seek the
advice of a qualied electrician.

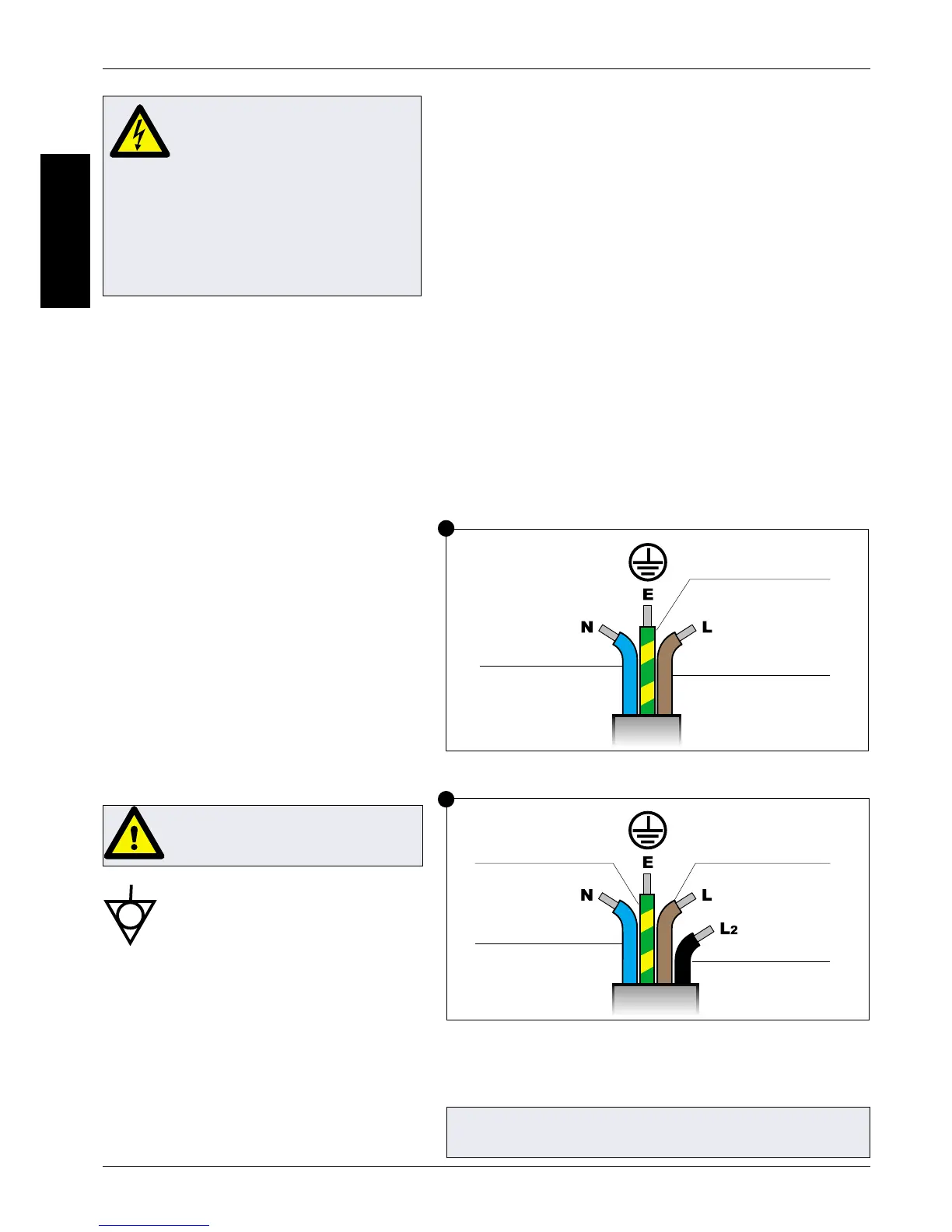

SINGLE PHASE
BLUE (NEUTRAL)
GREEN & YELLOW (EARTH)
BROWN (LIVE)
TWIN PHASE
GREEN & YELLOW (EARTH)
BLUE (NEUTRAL)
BROWN TO LIVE No.1
BLACK TO LIVE No.2
This equipment complies with EN61000-3-11,
however, when connecting sensitive equipment
to the same supply as the oven, the user should
determine in consultation with the supply authority,
if necessary, that a low impedance supply is used.
SINGLE PHASE (1)
UK models are tted with a Blue 32Amp Plug to IEC
60309 (EN 60309)
The Circuit Breaker should be rated at 40A (Type C).
TWIN PHASE (2)
Twin Phase models should be connected as shown.
The Circuit Breaker should be rated at 20A/Phase
(Type C).
EQUIPOTENTIAL
An Equipotential Earth point is provided
on the rear panel of the oven for
independent Earth (GND) connection.
POWER SUPPLY: EARTH LEAKAGE CIRCUIT
BREAKERS
If the oven is connected to an Earth Leakage Circuit
Breaker device, this should allow a minimum of 30
milliamperes earth current without interrupting the
circuit.
