Service & Parts Manual original Instructions

Part Number 32Z3809 GB

Issue 1

ELECTRICAL

CIRCUITS

N L

x2.1

x14.1

x14.2

x2.2

29 79

Filter 3

normally

closed

Filter 3

Temperature

thermocouple

Heat half Power

Relay

Heater Element

Filter 3. Connector view

Processor controlled

input for

Safety Heater Relay.

relay

Fuse 1

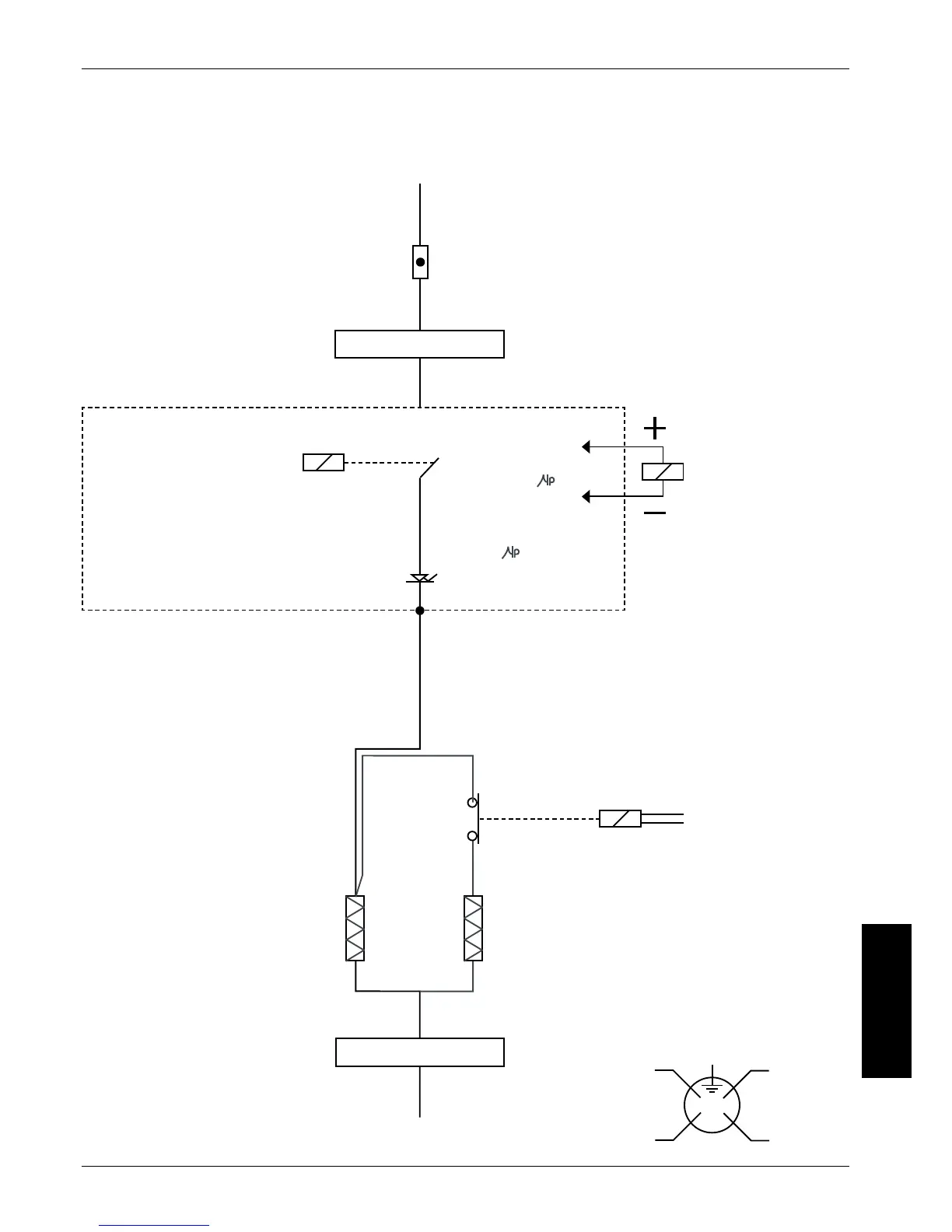

HEATER CIRCUIT e3EE25.5

20 Amp

Default Chapter3
- Table of Contents3
1 Safety Requirements4
- Important4
2 Product Overview & Functions5
3 Main Features6
4 Technical Specifications7
- Specifications7
- Serial Number (Rating Plate)7
- Compliances7
5 Installation9
- Oven Location and Positioning9
6 Electrical Installation10
7 Electrical Installation Guide11
- Phase Loading11
8 Quick Start Guide: Quick Service Oven12
- Start up12
- Using a Cooking Program13
9 Operating Guide: Full Service Oven14
- Easytouch MAIN MENU & KEYBOARD SCREEN14
- DEVELOPMENT MODE: CREATING Acook PROGRAM15
- Press & Go16
- Using a Cookbook Program16
- Changing the Oven Temperature17
- Viewing & Editing Programs17
- Adding a New Program Group18
- Move a Program Within Aprogram Group18
- Adding a Program to a Group19
- Managing Program Groups19
10 Oven Control Settings20
- Oven Mode/Navigation Settings (A)20
- Language Options (B)20
- Oven Temperature Settings and Labels (C)20
- Recipe Counters (E)21
- Date and Time Settings (F)21
- Sound Levels (G)21
- Oven Timer (H)21
- USB Oven Programs (J)22
- Restore Factory Defaults (K)22
- Temperature Band (L)22
- Change Password (M)22
11 Cooling the Oven down before Cleaning23
- Oven Cool down23
- Preparing to Clean the Oven23
12 Cold Oven CLEANING INSTRUCTIONS E324
13 Servicing the Oven25
- Servicing Procedure25
- Enter Service Mode25
14 Errors & Diagnostics26
- Error Messages26
- Copying Error Messages26
- Error Log26
- Oven Counters26
- Visual View27
15 Firmware Updates28
16 Oven Testing30
- Equipment Required30
- Earth/Insulation Test30
- Screen Calibration30
- Oven Tests31
- Microwave Power Test31
- Microwave Leakage Test32
- Temperature Control Test33
- Soak Test34
- Recommission Test34
17 High Voltage Components35
- Power Transformer Test35
- High Voltage Rectifier Test (Diode Board)35
- High Voltage Capacitor Test36
- High Voltage Magnetron Test36
18 Mains Voltage Components37
- Door Interlock Adjustment37
19 Oven Components38
20 SRB & BTS Circuit Boards40
- SRB Replacement40
- BTS Replacement40
- PM (Personality Module) Replacement41
21 Spare Parts Exploded View42
22 Spare Parts43
23 Error Codes Displayed46
24 SRB & BTS Circuit Boards48
- BTS Leds48
- BTS Terminal Locations48
- SRB Led's49
- SRB Terminal Locations50
25 Circuit Diagrams51
- E3 EE51
- E3 XE : E353
- POWER CONNECTIONS E355
- CONTROL CIRCUIT E3Ee, E3Xe & E3Xx56
- HEATER CIRCUIT E3Ee57
- HEATER CIRCUIT E3Xe & E358
- MICROWAVE CIRCUIT E3Ee59
- MICROWAVE CIRCUIT E3Xe & E3Xx60
26 Commissioning the Oven61
- Initial Installation61
- After Service61

Other manuals for Merrychef eikon e3

Installation And Operating Instructions29 pages

Quick Start Guide97 pages
