PRODUCT OVERVIEW & FUNCTIONS2
CONSTRUCTION
Stainless Steel cavity and casework.
CONTROL SYSTEM
Colour touchscreen, icon driven.
Storage for up to 1024 programs with 6 stages per
cooking program providing a user instruction for
each stage.
USB memory stick data transfer.
Support for optional remote communications
Ethernet module.
Safety system: ensures control area temperature is
within limits.
MICROWAVE POWER
Distribution system, rotating active antennae.
Microwave settings, o or 5-100% in 1% increments.
Safety system: Agency approved monitored
interlock door system, current monitoring and
overheat detection for magnetron.
CONVECTED HEAT
Temperature settings 0°C o and from 100°C to
275°C in 1° C steps.
Distribution system, convection fan.
Safety system: oven cavity overheat detection.

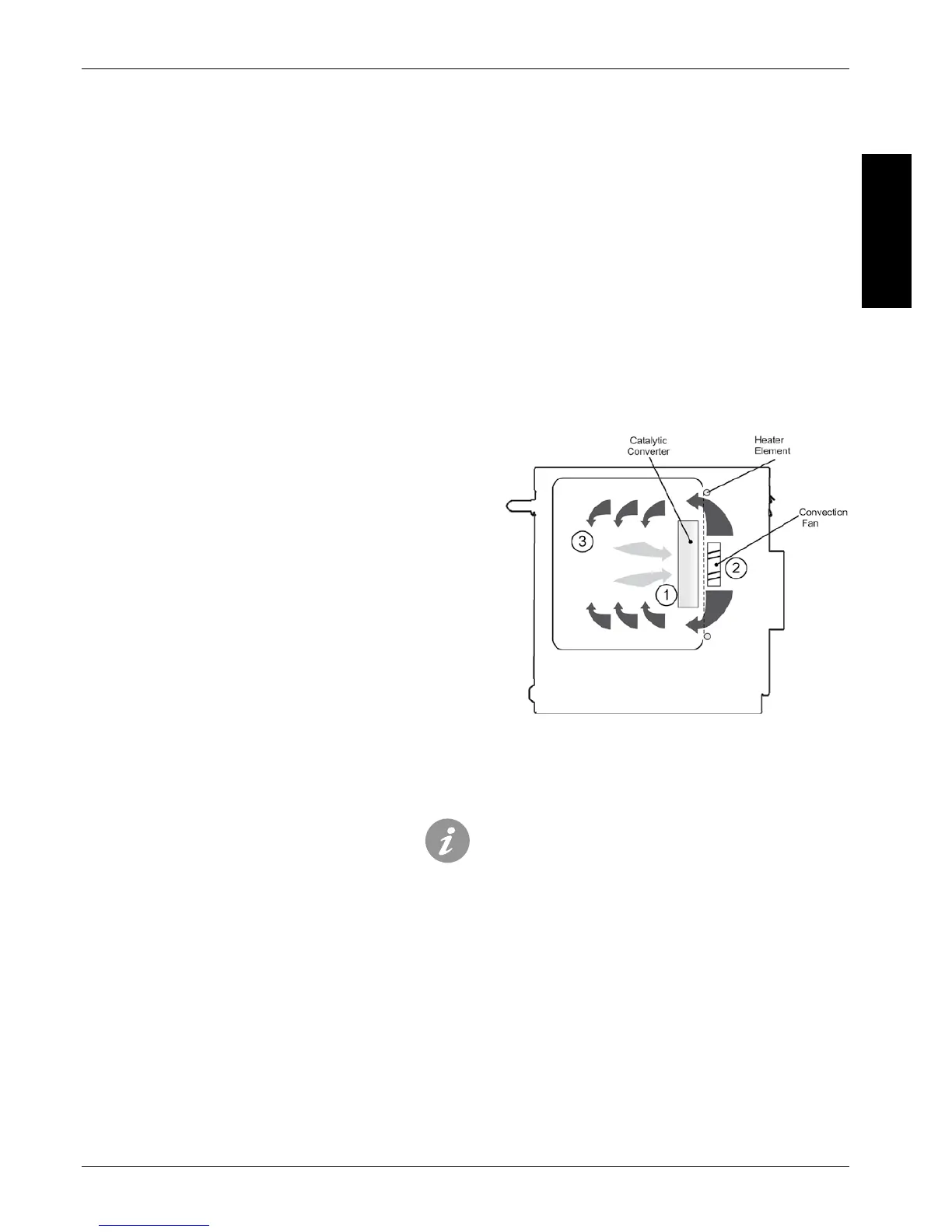

How it works:
Air in the oven cavity is cleaned by being drawn through the
catalytic convertor* (1) by the convection fan (2) and then
passes over the heater element and is circulated into the
oven cavity (3) at the set temperature.
* e3C models only.
Start up Sequence
With the oven switch in the OFF position and the
mains power ON, the BTS & SRB boards boot up.
When the oven switch is turned ON the splash
screen briey displays oven information and the
cabinet cooling fan is activated.
After completing a successful logic test, the safety
relay is energised and the oven preheats or displays
a preheat temperature choice. Once preheated the
oven displays the main menu if in FS mode or a
recipe selection if in QSR mode.
Shutting Down Sequence
When oven switch is turned OFF the screen displays
‘Shutting Down’ and the cooling fan operates until
the cabinet temperature has been suciently
reduced (cavity temperature of 50C).
The safety relay is de-energised and the BTS & SRB
boards remain active.
