4
1378 70 16 64 10 10 6 6 8 10 10
11 14 82 81 2
DANGER:
BEFORE REMOVING THE OVEN CASING,
ISOLATE THE OVEN FROM THE MAINS
ELECTRICITY POWER SUPPLY; SWITCH
OFF, DISCONNECT OVEN PLUG FROM
WALL SOCKET, TURN OFF ISOLATOR
SWITCH TO DISCONNECT FIXED WIRED
OVENS AND LOCKOFF.
WARNING:
ALLOW OVEN TO COOL AND
OBSERVE AND FOLLOW ALL SAFETY
PRECAUTIONS INCLUDING THOSE
DESCRIBED UNDER THE SAFETY
REGULATIONS SECTION OF THIS
MANUAL BEFORE ATTEMPTING A
SERVICE OR REPAIR.
CAUTION MICROWAVE
EMISSIONS:
DO NOT BECOME EXPOSED TO
EMISSIONS FROM THE MICROWAVE
GENERATOR OR PARTS CONDUCTING
MICROWAVE ENERGY.

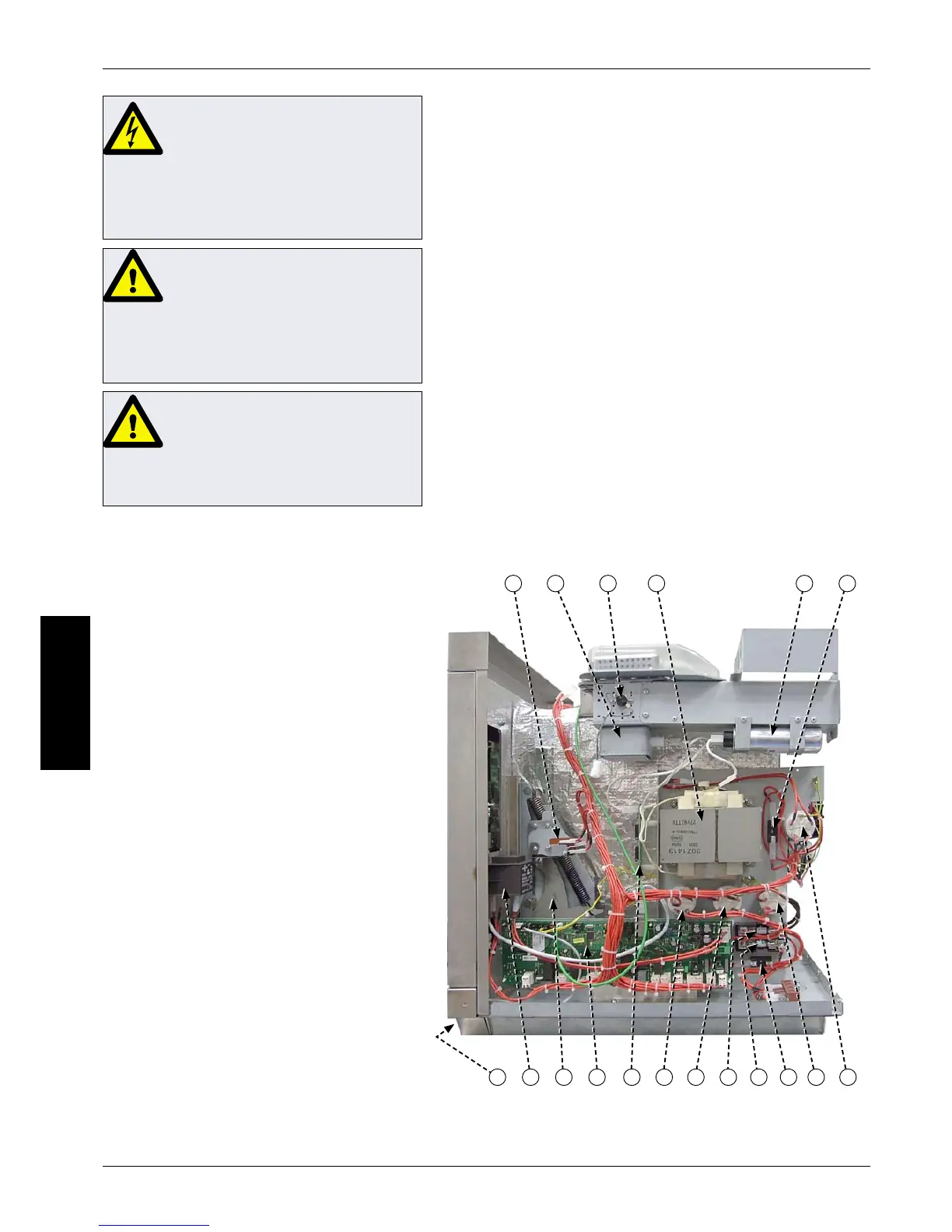

OVEN COMPONENTS19
4 Microswitch SW1, SW2
11 Magnetron
14 Overheat stat Magnetron
82 Transformer
81 HV capacitor
2 Fuse HT Transformer (10A)
78 Air intake lter (front)
13 Transformer (24V)
70 Hinge assembly door RH
16 SRB Smart Relay Board
64 HT Diode assembly PCB
6 Fuse (20A)
8 Fuse Control circuit (3A)
10 Filter (16A)
