Service & Parts Manual original Instructions
Part Number 32Z3809 GB
Issue 1
39

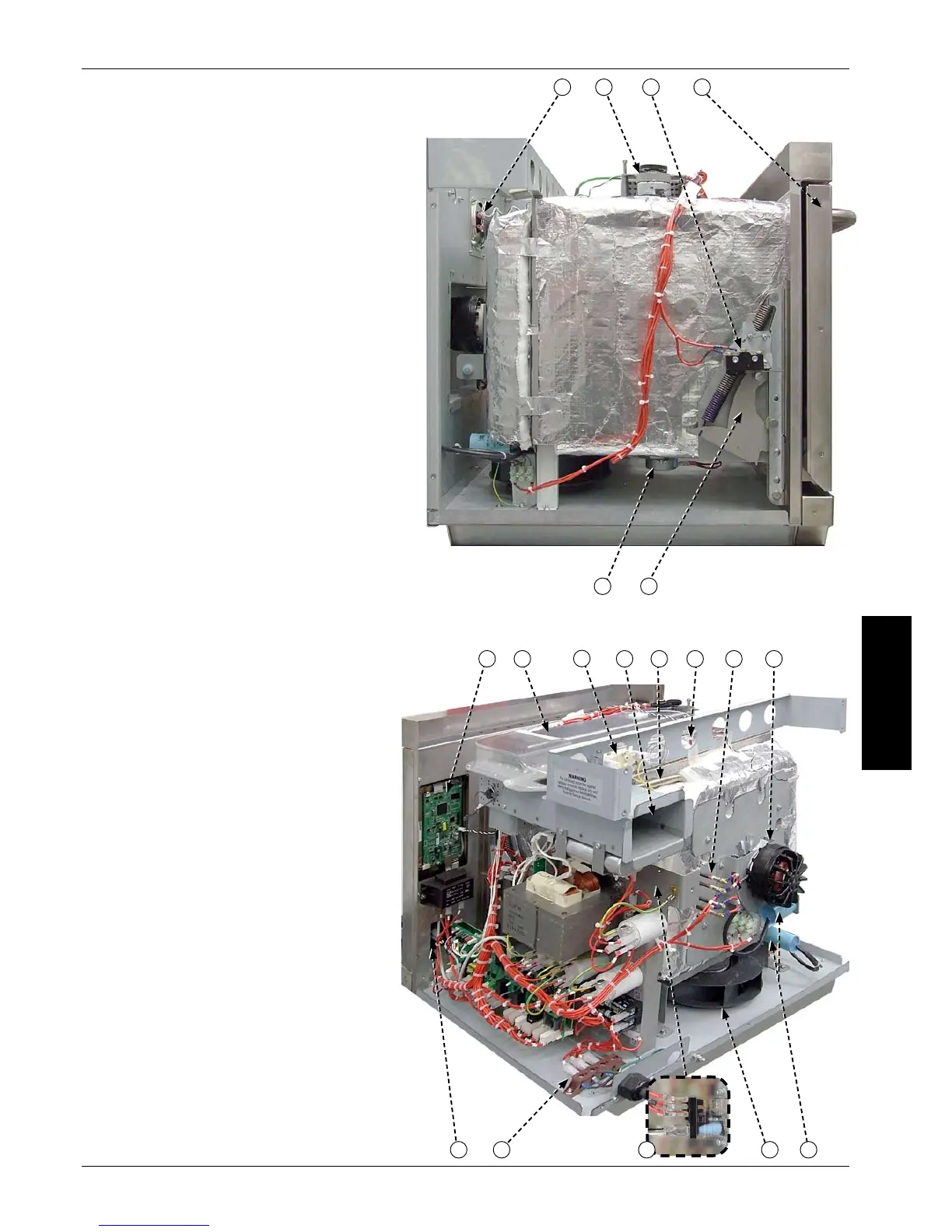

SPARES &
REPLACEMENT
47
5 21 83 12 9
17 69 76 58 45 38 68
46 65 15 67
74 72
46 Speaker unit
65 Stirrer motor assembly
15 Microswitch SW3
67 Door oven
74 Motor assembly turntable
72 Hinge assembly door LH
17 BTS Touch Screen Assy.
69 Wave guide
47 Overheat stat oven cavity
76 Cooling duct Magnetron
58 Vent steam outlet
45 Temperature sensor (Thermocouple) oven cavity
38 Heater element (connectors shown)
68 Motor assembly convection fan
5 Switch oven ON/OFF (rear connection)
21 Connector Terminal block Mains power supply
83 60Hz multi-voltage model - Voltage selection
relay. 50Hz EE model - half heat relay
12 Cooling fan
9 Capacitor (Blue) motor start
