Service & Parts Manual original Instructions
Part Number 32Z3809 GB
Issue 1
PRODUCT
DETAILS
1
5
8
10 11
12
2
6
9
3
4
7

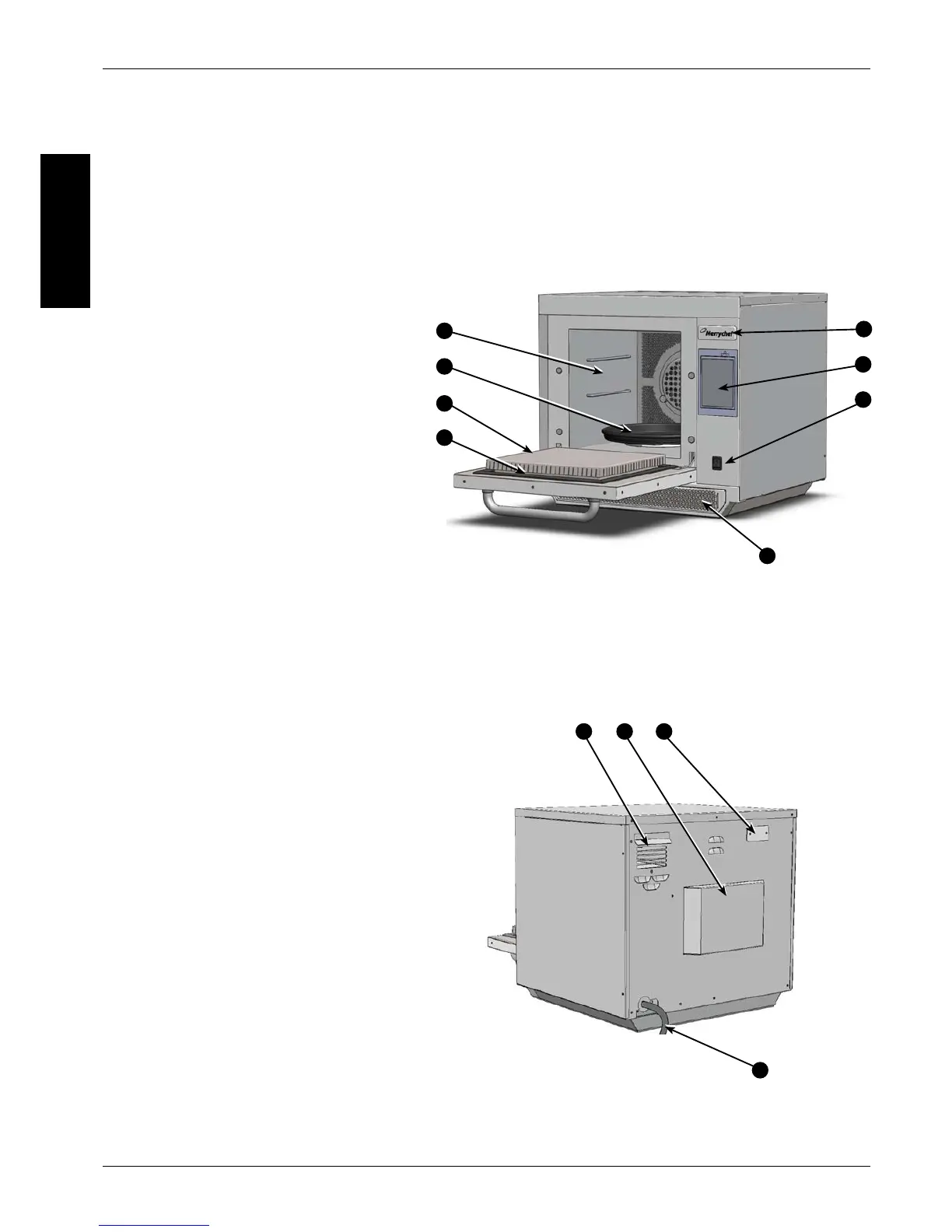

MAIN FEATURES3
ON/OFF SWITCH1
ON (I) activates the oven, OFF (0) switches the
oven to standby mode. IT DOES NOT ISOLATE
INTERNAL WIRING FROM THE MAINS SUPPLY.
CONTROL PANEL
2
Touch sensitive controls (easyToUCH) for
controlling oven functions, including diagnostics
and service mode.
USB menuKey
3
A socket, located under the logo, allows a USB
menuKey to be used to update the cooking
programs and oven rmware on the pcbs.
OVEN CAVITY
4
The oven cavity is mostly constructed from
stainless steel panels which must be kept clean
to avoid contamination of food products and
allow the oven to perform at peak eciency.
TURNTABLE
5
A torque motor drives the turntable rotating it
in opposite directions when the motor torque
reaches maximum. The tray and turntable
require cleaning as per instructions.
OVEN DOOR
6
The twin-skinned door has a thermally insulated
inner section to lower the surface temperature
and incorporates a microwave choke.
DOOR SEAL
7
Provides a tight seal around the door and
must be kept clean. The seal must be checked
regularly and replaced if worn or damaged.
AIR FILTER
8
The air intake provides cooling air for internal
components and must be cleaned daily and
must NOT be obstructed. The lter must be in
place for the oven to function.
STEAM VENT
9
Vents steam from the oven cavity.
HOT AIR FAN
10
Circulates hot air through the catalytic
convertors (where tted) and oven cavity.
RATING PLATE
11
The rating plate, located on the rear oven cover,
states the Model, Serial Number, Electrical
Ratings and Manufacturers telephone number.
MAINS ELECTRIC POWER CABLE
12
Located on the rear of the oven and must be
replaced if worn or damaged.
