Merrychef eikon e3 Service & Parts Manual

Service & Parts Manual original Instructions
Part Number 32Z3809 GB
Issue 1

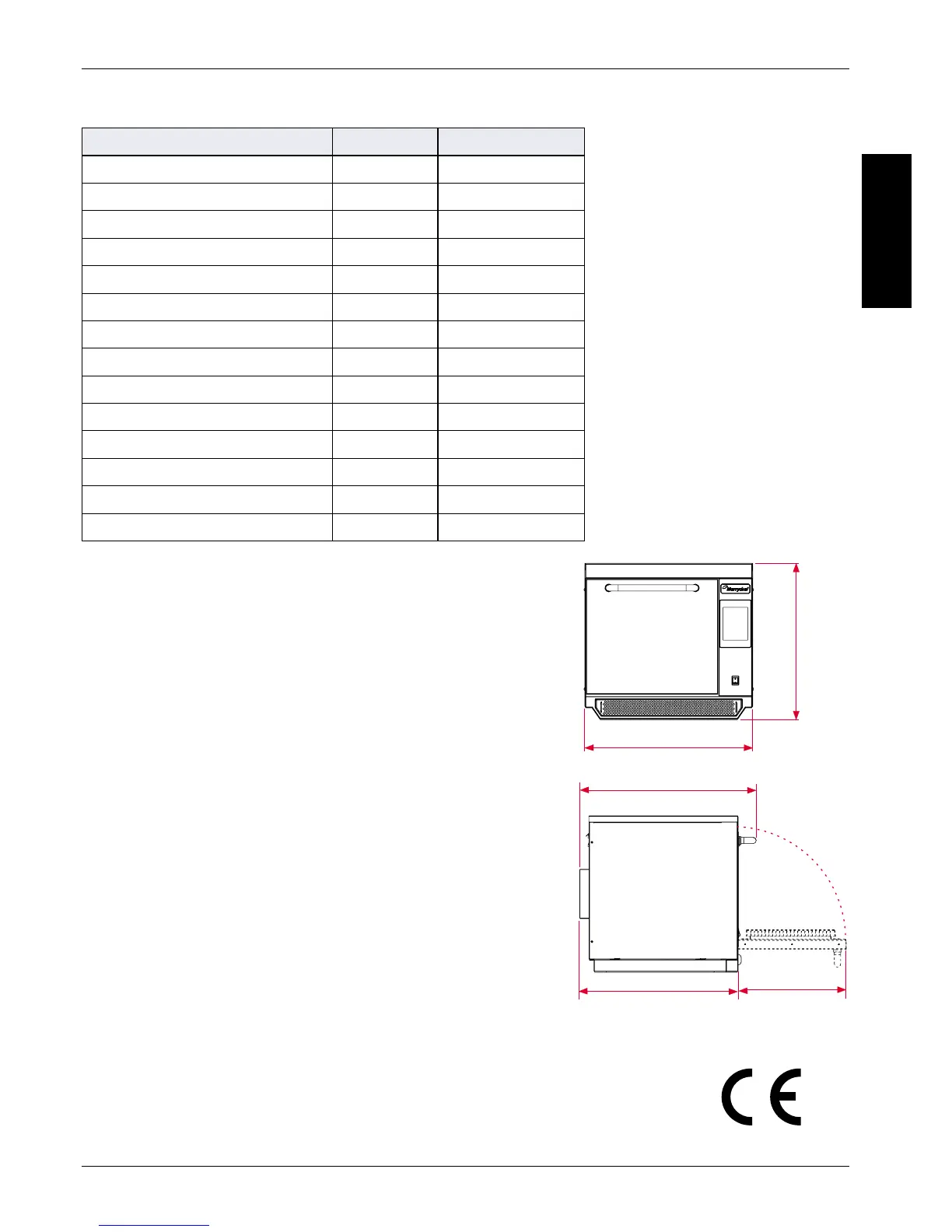

7
551mm
21.7in
598mm
23.5in
381mm
15.0in
558mm
22.0in
24.5in
622mm
PRODUCT
DETAILS
TECHNICAL SPECIFICATIONS4
Specications4.1
Serial Number (Rating Plate):4.2
Serial number: MM YY SITE SERIAL
i.e. 06 10 2070 12345 (0610207012345)
Oven manufactured in June 2010 at Sheeld (UK),
production number 12345.
Model Number: MODEL CONVECTION MICROWAVE
VOLTAGE HERTZ LEAD PLUG COMMUNICATION
VERSION CUSTOMER/ACCESSORY COUNTRY
i.e. e4C S V 30 5 H E U 1 GM EU
(e4CSV305HEU1GMEU)
model e4C, 3200W, 1500W, 230V, 50Hz, L+N+E(4mm
EU), 3-pin plug, USB, 1, General Market, European.
Compliances:4.3
EU Directives
EMC 2004/108/EC
LVD 2006/95/EC
RoHS 2002/95/EC
MD 2006/42/EC
Description unit
Touch screen controls programs
Ambient operating temperature °C
External HxWxD mm
External HxWxD inches
Internal HxWxD mm
Internal HxWxD inches
Cooking chamber Ltr (cu.ins)
Power output microwave Watts
Power output convection kW
Power supply Hz
Power supply kW
Unpackaged oven weight nett Kg (lbs)
Sound pressure level dB(A)
Stacking (with kit) oven
e3
1024
<40
551x598x622
21.7x23.5x24.5
319x332x325
12.6x13.1x12.8
34.4 (2113)
700/1000
3 (3/1.5 EE)
50 & 60
3(EE) 4.3(XE) 4.7(XX)
62.5 (138)
<70
0
