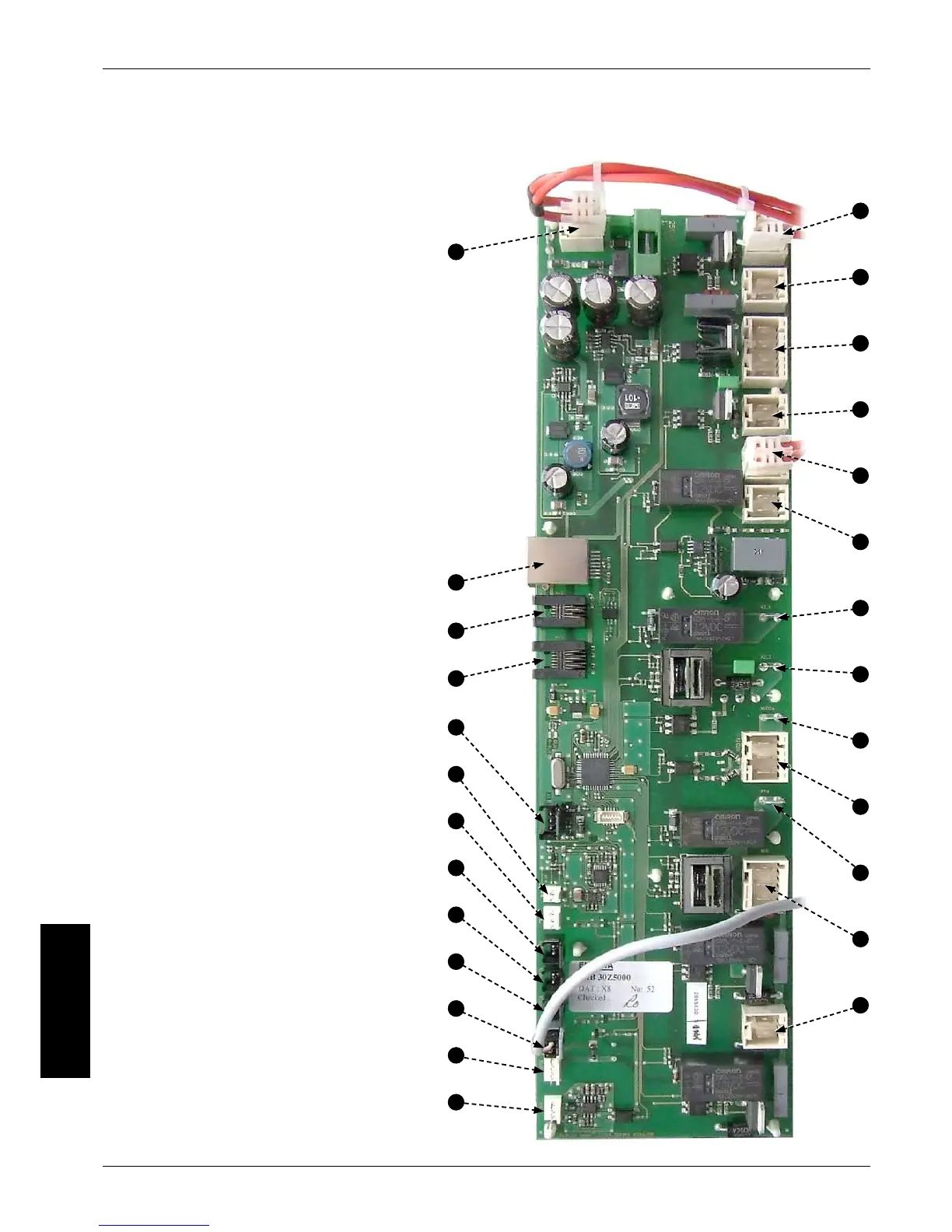

SRB Terminal Locations:24.4
X3 - Not used.1
X101 - Voltage Selection Relay coil feeds.2
X18b - Air intake Filter Reed Switch.3
X18e - Not used.4
X18d - Magnetron overheat thermostat.5
X18c - Cavity Overheat Thermostat.6
X18a - On/O Switch.7
X14 - Cavity Temperature Thermocouple.8
X5 - Fan RPM Input.9
X13 - P Bus, Ethernet Port.10
X12 - C Bus, Development PC Port.11
X11 - P/C Bus, BTS Cable.12
X1 - 24V supply from Low Voltage Transformer.13
X8 - Cooling Fan.14
X17 - Convection fan.15
X20 - Turntable motor.16
X9 - Mains Output, Magnetron stirrer motor.17
X103.1 - Mains Output to Low Voltage 18
Transformer.
X103 - Mains Input, Live & Neutral.
19
X2.1 - Mains Input, Live for Heaters.20
X2.2 - Mains Output, Live to Heaters.21
X102a - Mains Input & Monitor Door Switch.22
X102b - Mains Output, Neutral to Magnetron 23
Transformers & Monitor Door Switch.
X4a - Door Switch signal from Secondary Door
24
Switch (Live for Magnetron Transformers).
X10 - Connector Block for door switches.
25
X4b - Live for Magnetron Transformers.26
