METER AQUALAB TDL Manual

23
AQUALAB TDL/TDL 2

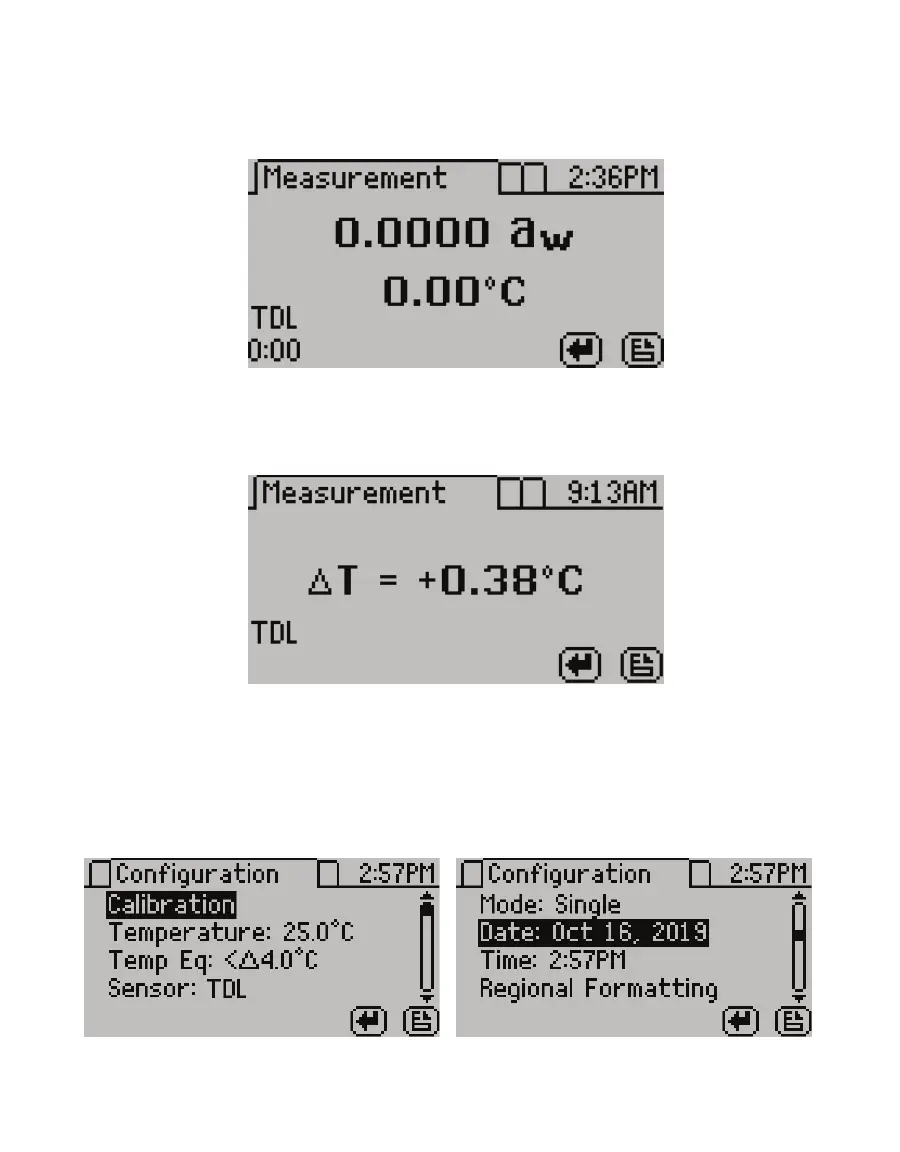

3.2.4.1 MEASUREMENT TAB
The Measurement tab (Figure24) is the main screen and must be visible to start a reading.
Measurement results are displayed on this screen.
Figure24 Measurement tab
Using the RIGHT or LEFT buttons changes the display to a temperature equilibration screen
(Figure25). This screen shows the temperature difference between the sample and the lid.
Figure25 Temperature equilibration
3.2.4.2 CONFIGURATION TAB
The Configuration tab provides a menu of configuration options (Figure26). Use UP and
DOWN to move the selection through the various configuration options or LEFT and RIGHT to
page through the options. Use ENTER to select the highlighted option.
