Introduction

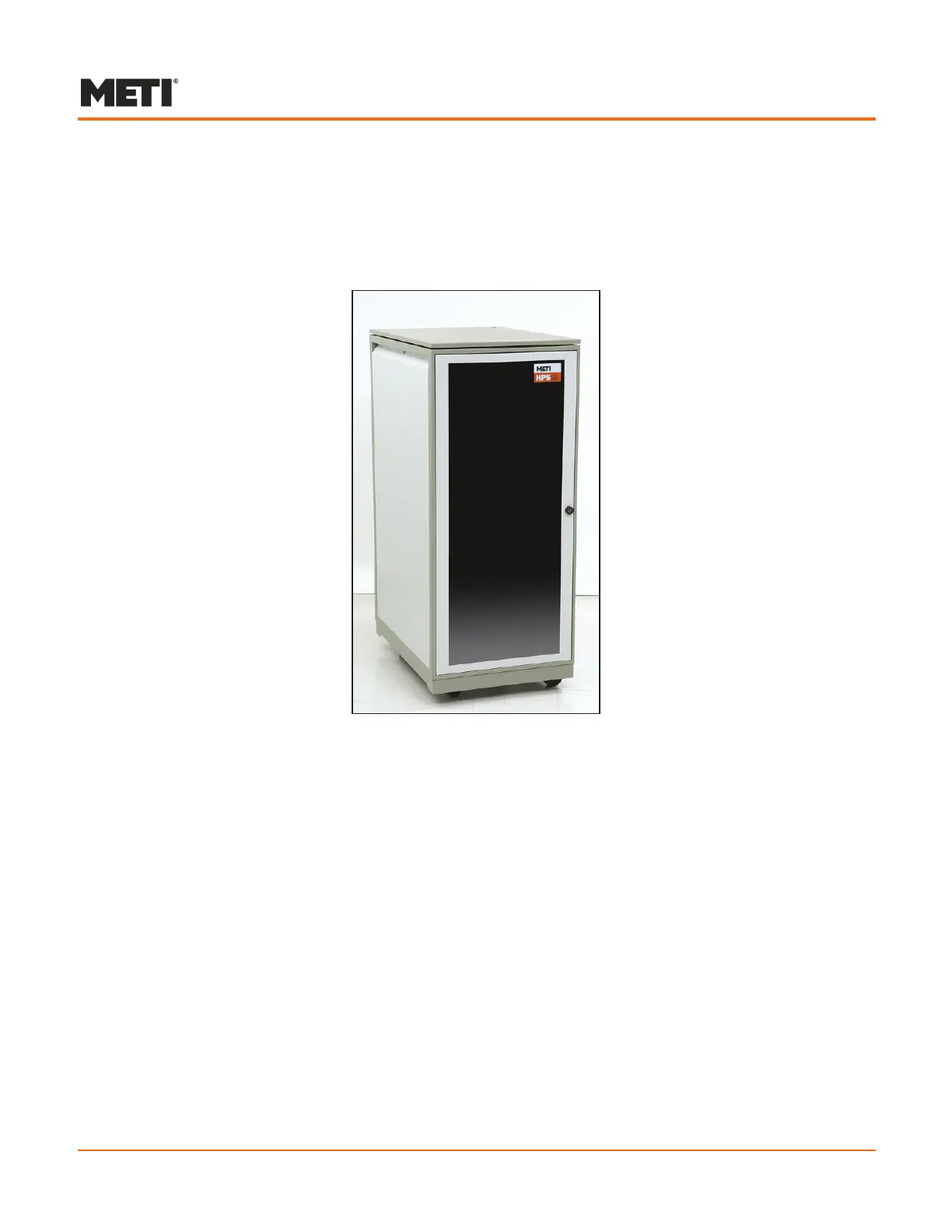

HPS Lab Rack
The HPS Lab Rack is the hub of communication, power and pneumatics for the HPS
system. It contains a central power supply, an Ethernet switch, lung bellows and other
essential components that drive the simulator’s physical responses.
HPS Lab Rack
The following descriptions explain the configuration of the HPS Lab Rack. The Human
Patient Simulator - HPS Lab Rack includes all of the components listed below and on
the following pages. The Health Science HPS includes most of the components below,
but some are optional. Components that are optional for the Health Science HPS are
marked with an asterisk.
To Next Page
