MI 3295 Step Contact Voltage Measuring System Measurements
28
Current measurements
Current measurement is intended for measurement of AC currents (leakage currents, load
currents, noise currents) using the iron current clamps or flex clamps.

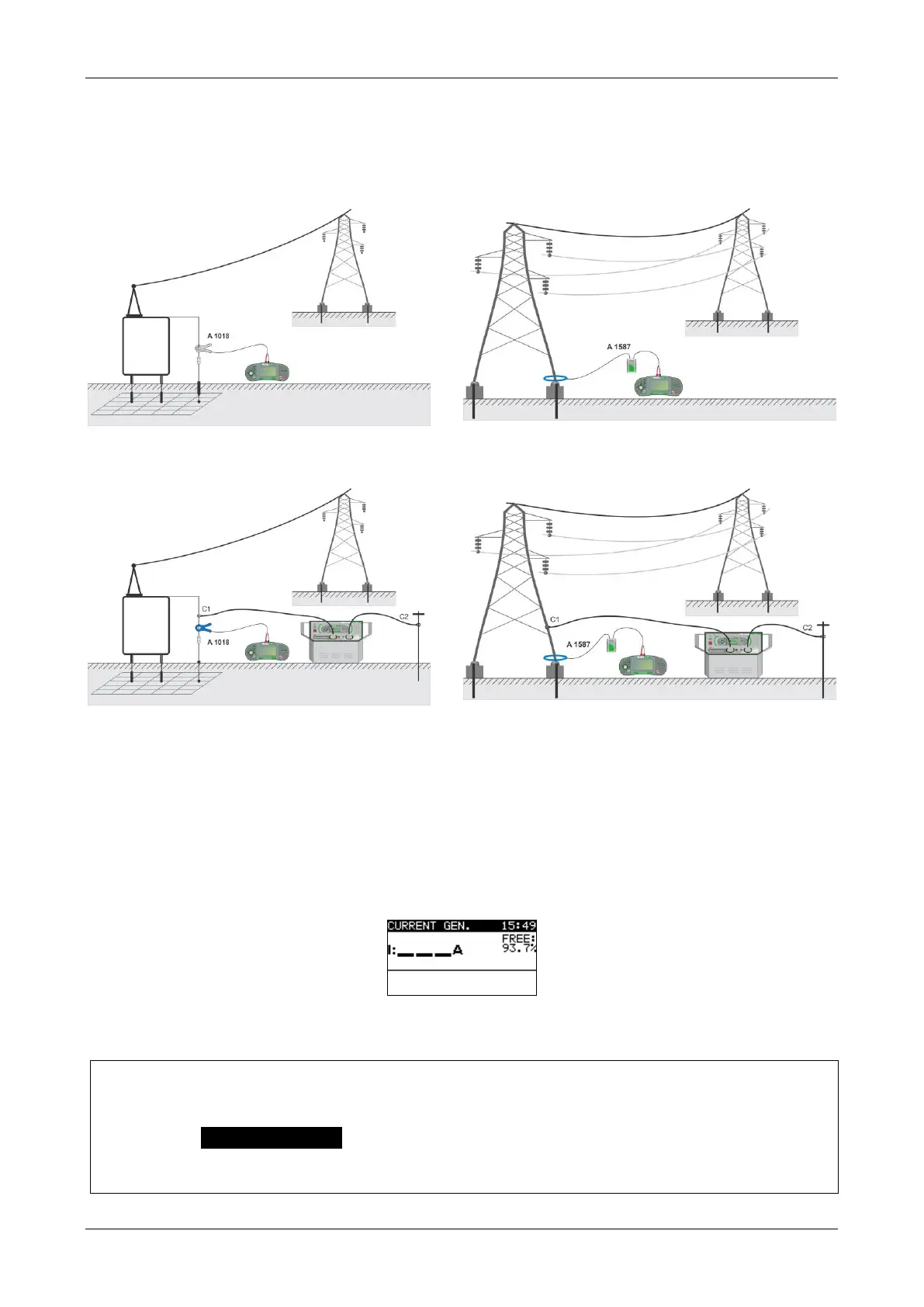

Figure 7.7: TRMS, 50 Hz, 60 Hz current measurement example: Iron clamp (left) and Flex
clamps (right)
Figure 7.8: Current measurement example – 55 Hz mode: Iron clamp (left) and Flex
clamps (right)
7.2 Step voltage, Contact/Touch voltage and Potential
7.2.1 Injection of test current
Before starting the Step voltage, Contact/Touch voltage and Potential measurements the
test current must be injected in the earth with MI 3295S.
Figure 7.9: Current generator screen
 Connect C2 test lead to the main earthing point.
 Place the earth probe.
 Connect C1 test lead to the earth probe or another auxiliary earthing point.
 Select CURRENT GEN. function.
 Press the TEST key to start the generation of the current.
 Check the value of the current.
