MI 3295 Step Contact Voltage Measuring System Data handling
40

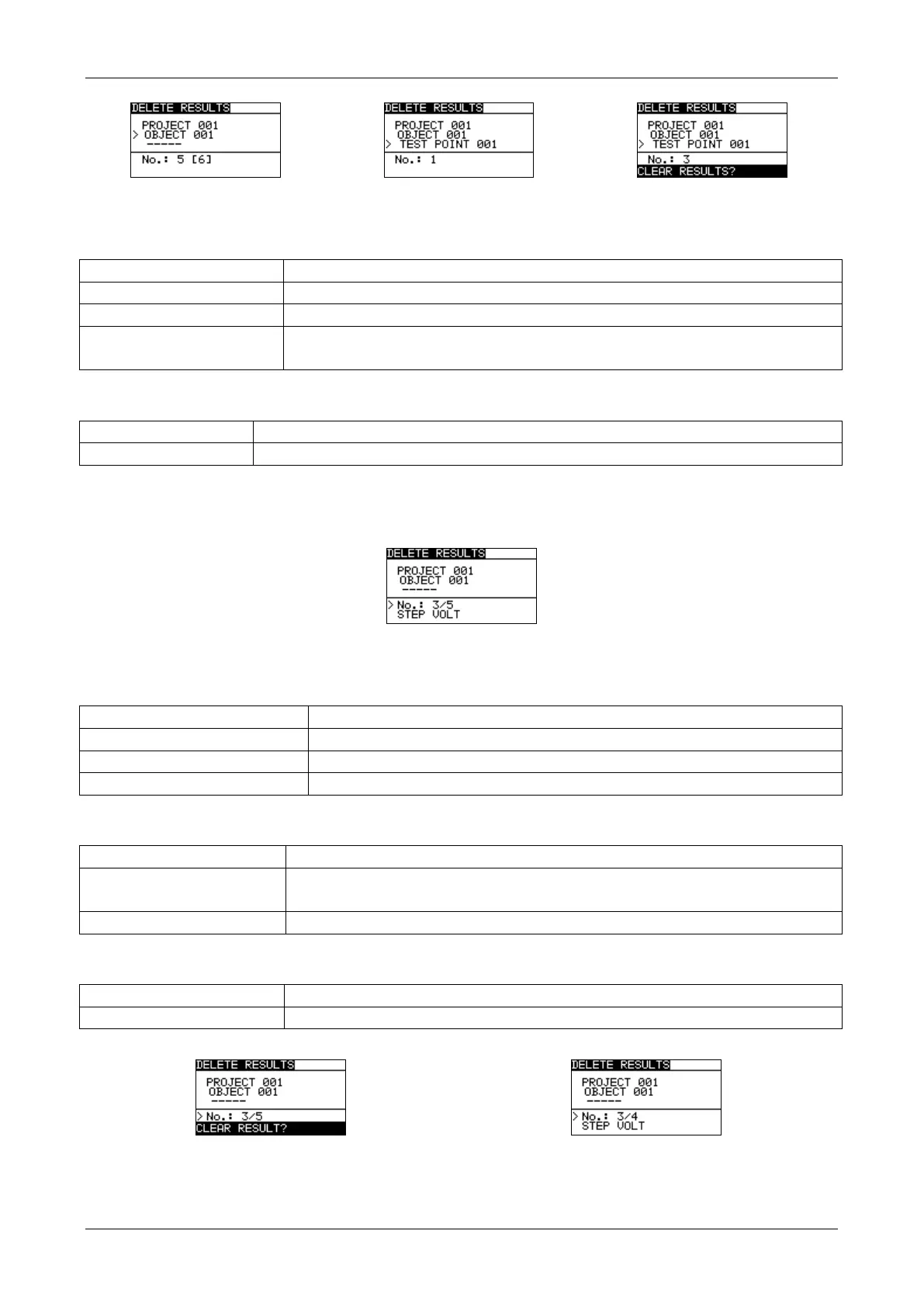

Figure 8.8: Clear measurements menu (data structure field selected)
Keys in delete results menu (data structure field selected):
Cursor UP / DOWN
Selects location element (Project / Object / Test point).
Cursor LEFT / RIGHT
Selects number of selected location element (1 to 199).
ESC
Exits back to Settings main menu.
MEM
Opens dialog for confirmation to clear result(s) in selected
location.
Keys in dialog for confirmation to clear results in selected location:
TEST
Deletes all results in selected location.
ESC
Exits back to delete results menu without changes.
Clearing individual measurements
Select DELETE RESULTS in MEMORY menu.
Figure 8.9: Menu for clearing individual measurement (measurement field selected)
Keys in delete results menu (data structure field selected):
Cursor UP / DOWN
Selects location element (Project / Object / Test point).
Cursor LEFT / RIGHT
Selects number of selected location element (1 to 199).
TEST
Enters measurements field.
ESC
Exits back to Settings main menu.
Keys in delete results menu (measurements field selected):
Cursor LEFT / RIGHT
Selects measurement.
MEM
Opens dialog box for confirmation to clear selected
measurement.
ESC
Exits back to data structure field.
Keys in dialog for confirmation to clear selected result(s):
TEST
Deletes selected measurement result.
ESC
Exits back to measurements field without changes.
Figure 8.10: Dialog for confirmation
Figure 8.11: Display after measurement
was cleared
