3.2.2 Communications
In this menu communication can be establish
with PV instrument.

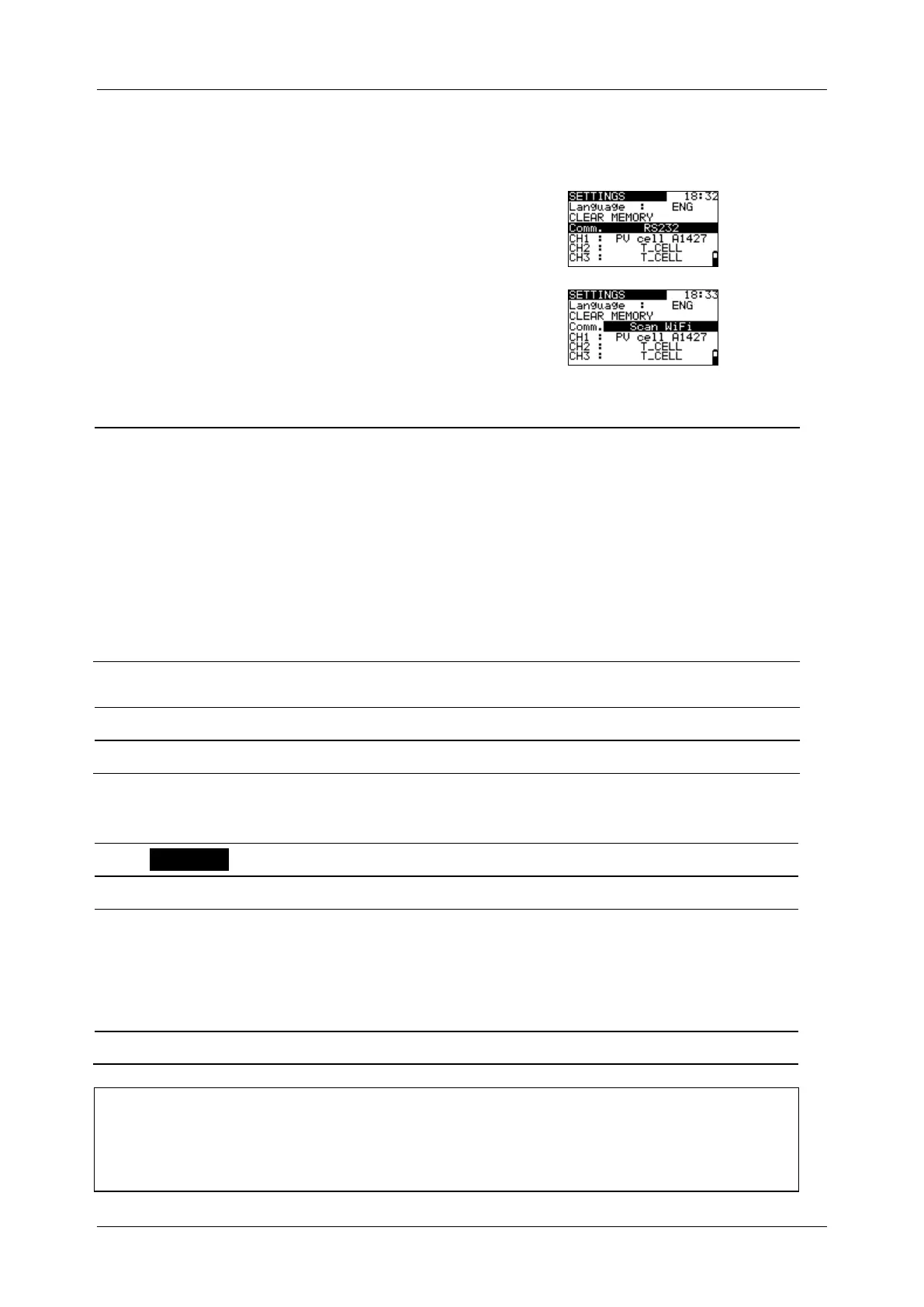

Figure 3-3: Communication screen
Communication port [RS232, Reset WiFi, Scan WiFi, BACK]
[RS232]: Communication port used only with MI 3108 and
MI 3109 instruments.
[Reset WiFi]: Wi-Fi module initialized to factory settings.
[Scan WiFi]: Communication with MI 3114 and MI 3115
instruments configured/established.
When Wi-Fi configured with selected MI3115 or MI3114
instrument, serial number of the instrument is displayed,
e. g. MI3115-22110167.
[BACK]: Return to menu without saving configuration.
Selects communication option.
Procedure to establish Wi-Fi communication with MI 3114 / MI 3115 PV instrument
Select SETTINGS menu using the function selector switch.
Select Comm. option and press the TEST key.
Select Scan WiFi option and press the TEST key.
PV Remote WL will start searching for Wi-Fi PV instrument(s). After device is found
the PV Remote WL will automatically connect to the PV instrument.
If more PV instruments are found, user can select one from the list (with UP or
DOWN keys) and connect it with PV Remote WL by pressing the TEST key.
PV Remote WL is now ready to use Wi-Fi communication with PV instrument.
Note
▪ Modification of Comm. settings will reset previous settings. Wi-Fi scan should be
performed again if communication port is switched to RS232 and then back to Wi-Fi.
