A 1785 PV Remote WL Instrument description
9
2.2 Connector panel

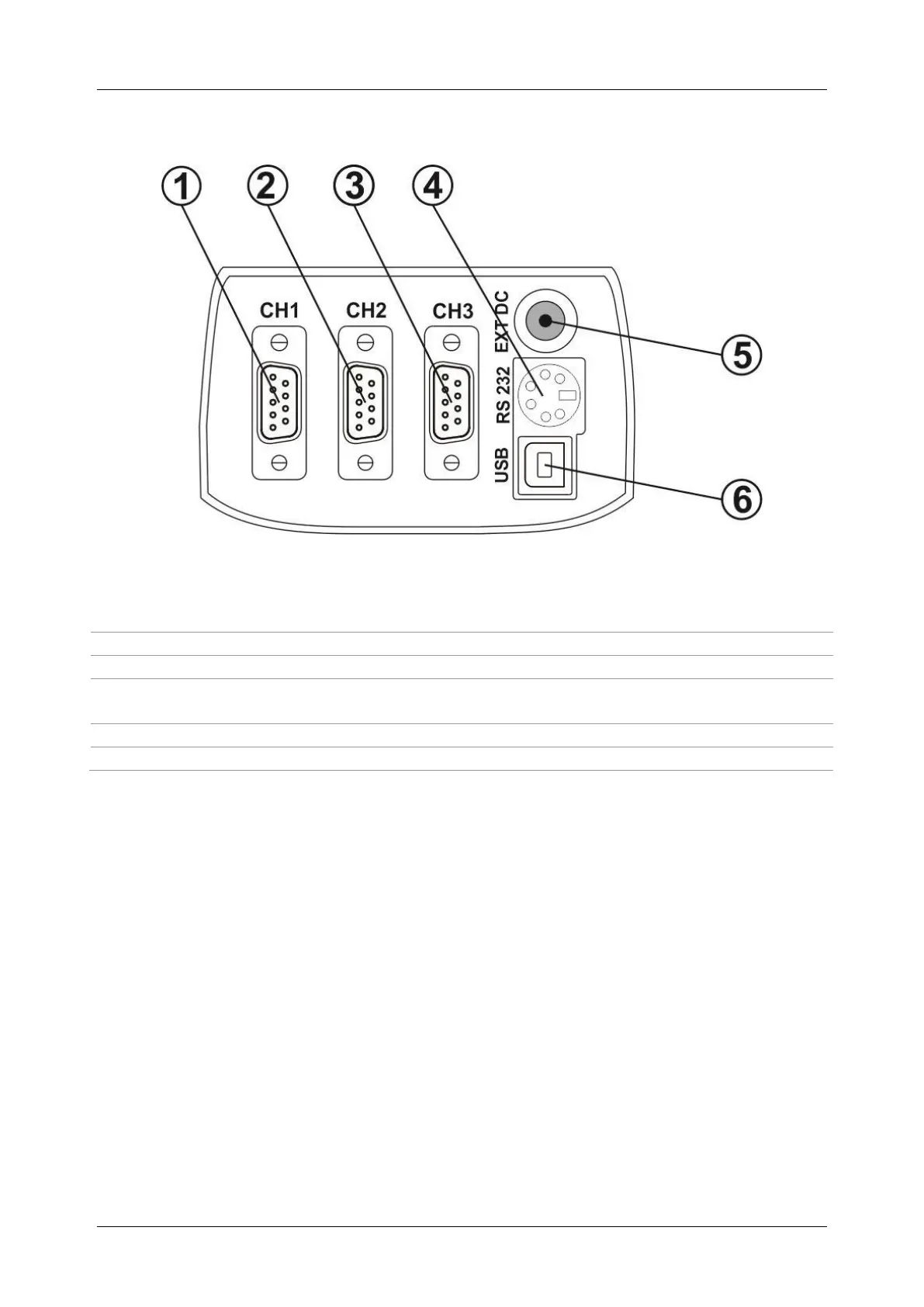

Figure 2-2: Connector panel
Legend:
1
Input 1
Input for measuring Irradiance
2
Input 2
Input for measuring Ambient / Cell temperature
3
Input 3
Input for measuring Cell temperature
4
PS/2 connector
Connection to the measuring instrument
Connection to the wireless adaptor
5
Charger socket
6
USB connector
No function in this version.
Warnings!
❑ Maximum short-term voltage of external power supply adapter is 14 V!
❑ Maximum short-term voltage on measuring inputs is 12 V!
