A 1785 PV Remote WL Saving of results
20
5 Saving of results and synchronization with the
instrument
The measured results and time of measurement are automatically stored into the PV Remote
WL
After the measurement the stored results can be synchronized with results in the instrument
MI 3108 / MI 3109 or MI 3114 / MI 3115 that were measured at the same time. The instrument
can then calculate correct STC values.
Before the measurements the time and date between the instrument and Remote WL should
be synchronized. For more information about this feature refer to MI 3108, MI 3109, MI 3114 or
MI 3115 Instruction manuals.
5.1 Synchronization with MI 3108 / MI 3109 instruments
For time and results synchronization, RS232 communication should be established first. Refer
to paragraph 3.2.2 Communications.
For time and results synchronization, the RS232 port on the instrument MI 3108 / MI 3109
must be connected with the RS232 port on the PV Remote WL. Use the PS/2 to RS232
(female) data cable delivered with the MI 3108 / MI 3109 and the RS232 (male) to PS/2 cable
adapter delivered with A 1785.

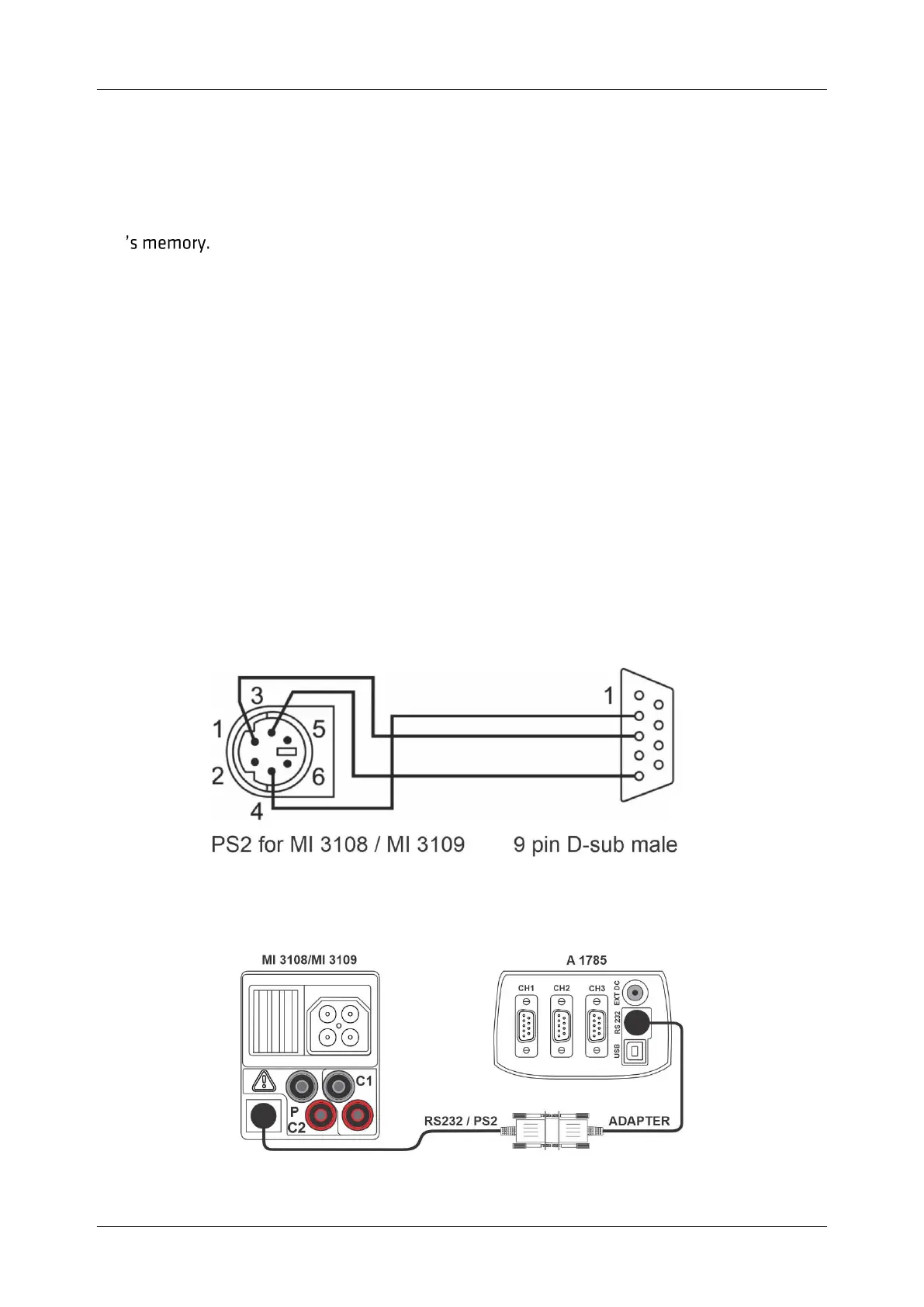

Figure 5-1: Interface connection for the RS232 (male) to PS/2 cable adapter
Connection for synchronization
Figure 5-2 Connection of the instruments during synchronization
