A 1785 PV Remote WL Instrument description
8
2 Instrument description
2.1 Front panel

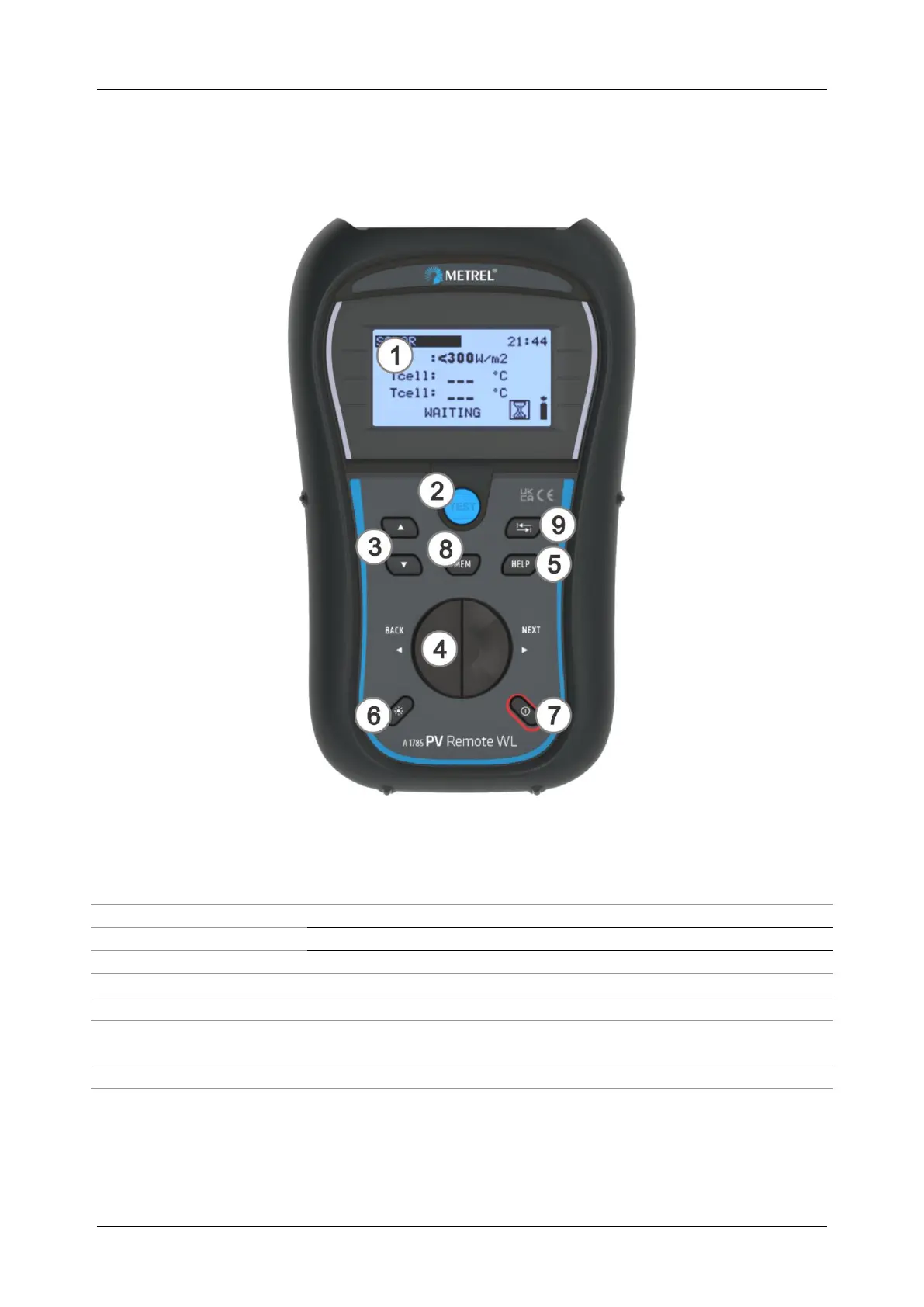

Figure 2-1: Front panel
Legend:
1
LCD
128 x 64 dots matrix display with backlight.
2
TEST
Starts / stops measurements.
3
UP/ DOWN
Modifies selected parameter.
4
Function selectors
Selects test function
5
HELP
Help screens.
6
Backlight, Contrast
Changes backlight level and contrast.
7
ON / OFF
Switches the instrument power on or off. The instrument
automatically turns off 15 minutes after the last key was pressed.
8
MEM
No function in this version
9
TAB
No function in this version
