MI 3201 TeraOhm 5 kV Plus Measurements
25

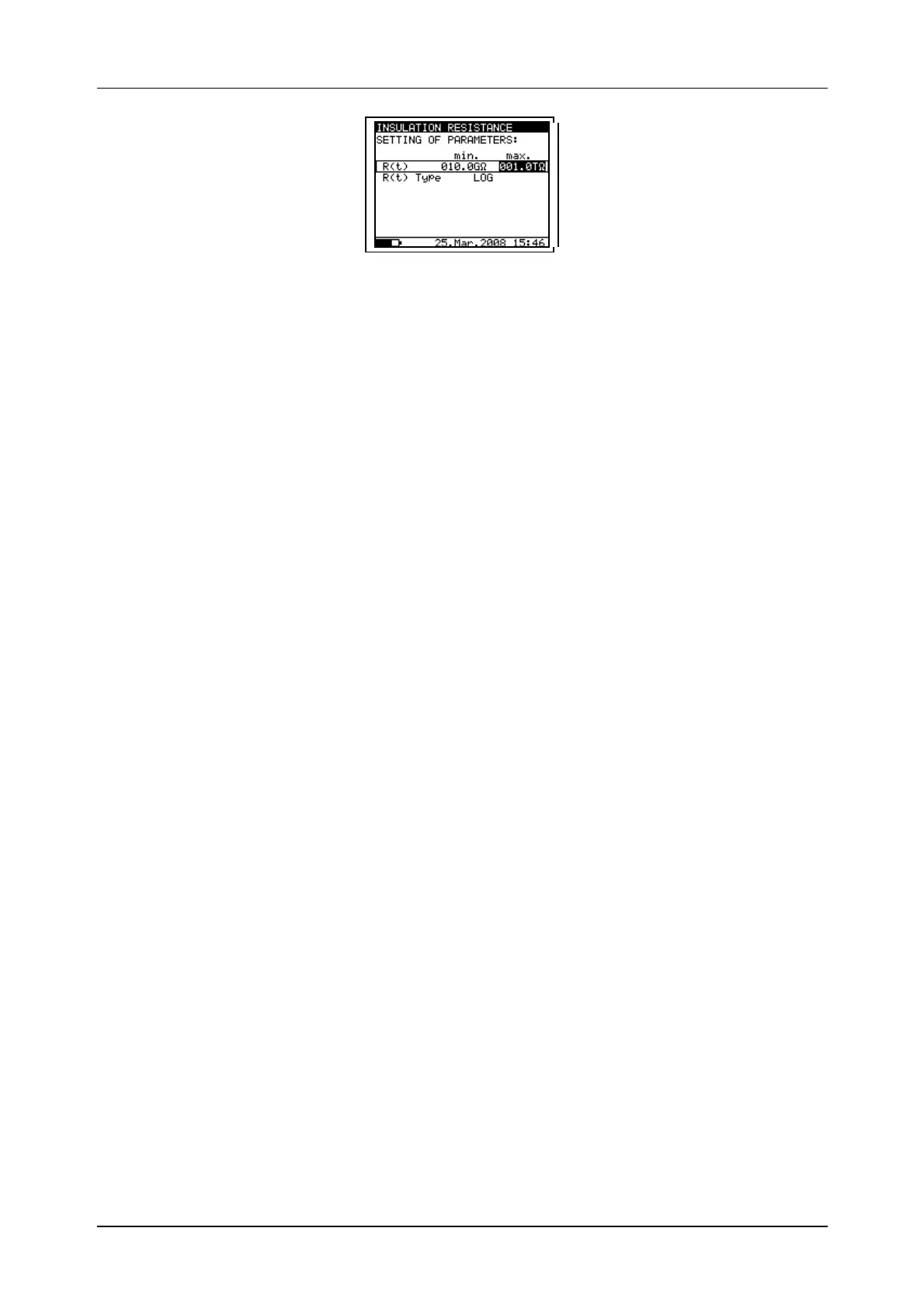

Fig. 15. Set-up menu of the Graph R(t)
Notes:
- If the Timer is OFF is not possible to Enable the Graph R(t).
- The time duration of Graph R(t) is equal to the value of Timer.
- The Timer value could be very long (up to 100 minutes), so the Special automatic
decimation algorithm is use to write the Graph R(t) to the LCD.
- The cursors of the Graph R(t) could be activated with key
- The cursors of the Graph R(t) could be moved with and keys.
Warning!
Refer to Warnings chapter for safety precautions!
