MI 3201 TeraOhm 5 kV Plus Measurements
24

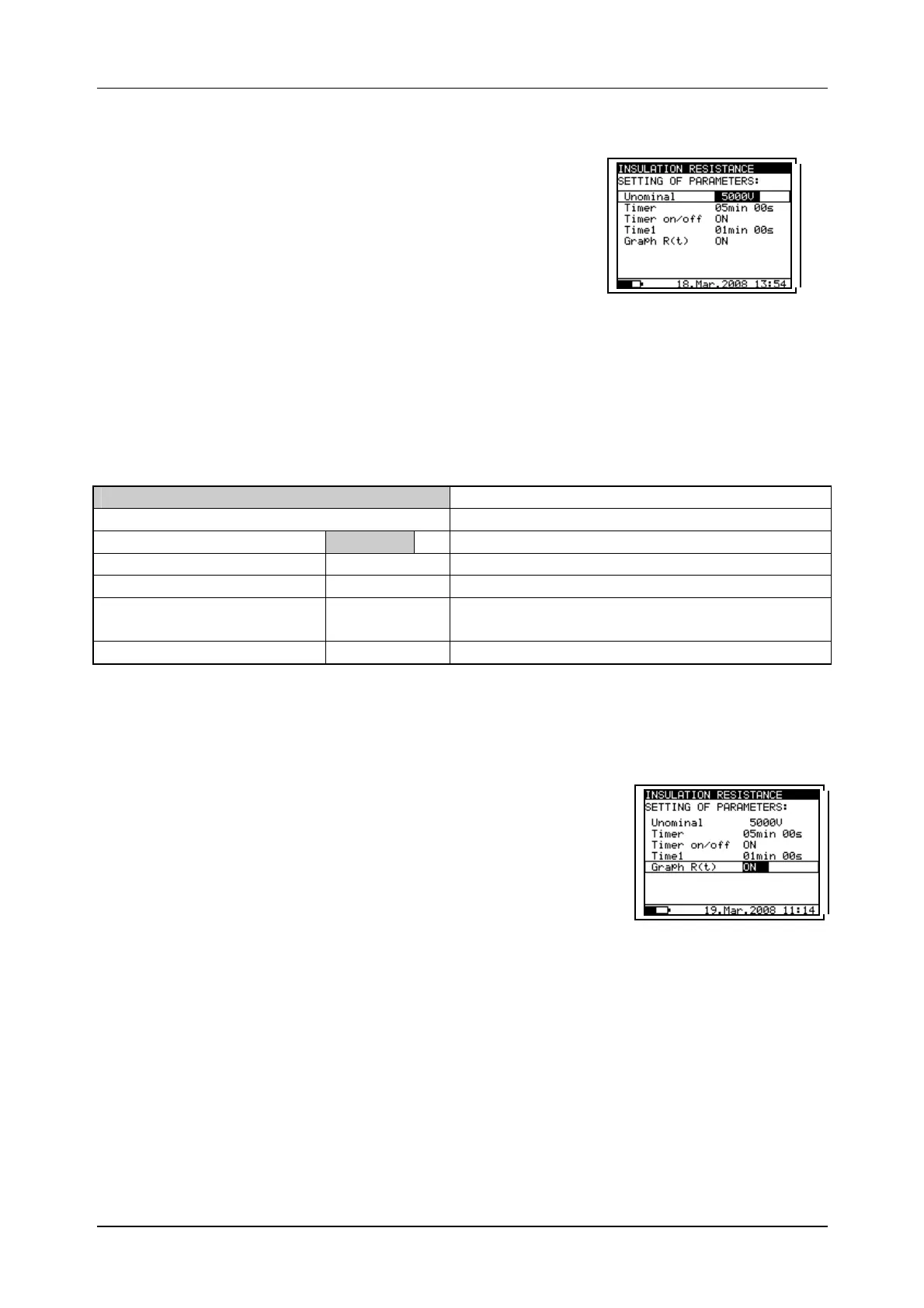

Setting up parameters for Insulation Resistance test:
- Press the SELECT key, the set-up menu will appear
on the display, see the Fig 13.
- Select the parameter (line) to be set using the  and
 keys;
- Adjust set parameter using the  and  keys. Skip
to the next sub-parameter by pressing the SELECT
key (if there are two or more sub-parameters) and
repeat the adjustment.
- Complete the set-up adjustments by pressing either
the ESC key or START/STOP key (to run the
measurement directly). The settings displayed last
are stored.
Fig. 13. Set-up menu in
Insulation Resistance
measurement
Legend of displayed symbols:
INSULATION RESISTANCE
Name of selected function
SETTING PARAMETERS:
Unominal 5000V
Set test voltage –25 V steps
Timer 5min 00s
Duration of the measurement
Timer on/off ON
ON: timer enabled, OFF: timer disabled
Time1 01min 00s
Time to accept and display first Rmin and
Rmax results
Graph R(t) ON
Enable/Disable Graph R(t)
Timer and Time1 are independent timers. Maximum time for each of them is
99 min 60 s.
Enable/Disable the graph R(t) and Set-up the graph R(t)
parameters in the Insulation Resistance function:
- Press the SELECT key, Set-up menu appears on display,
see the Fig. 14.
- Select the parameter Graph R(t) to be set using the  and
 keys;
- Enable/Disable the graph R(t) using the  and  keys.
- Press the SELECT key to Set-up the parameters of the
graph R(t), see the Fig. 15. Press the ESC key to return
to basic Set-up menu in the Insulation Resistance
function.
- Complete the set-up adjustments pressing either the ESC
key or START/STOP key (to run the measurement
directly). The last displayed settings are stored.
Fig. 14. Set-up menu in
Insulation Resistance
measurement
