MI 3201 TeraOhm 5 kV Plus Measurements
31

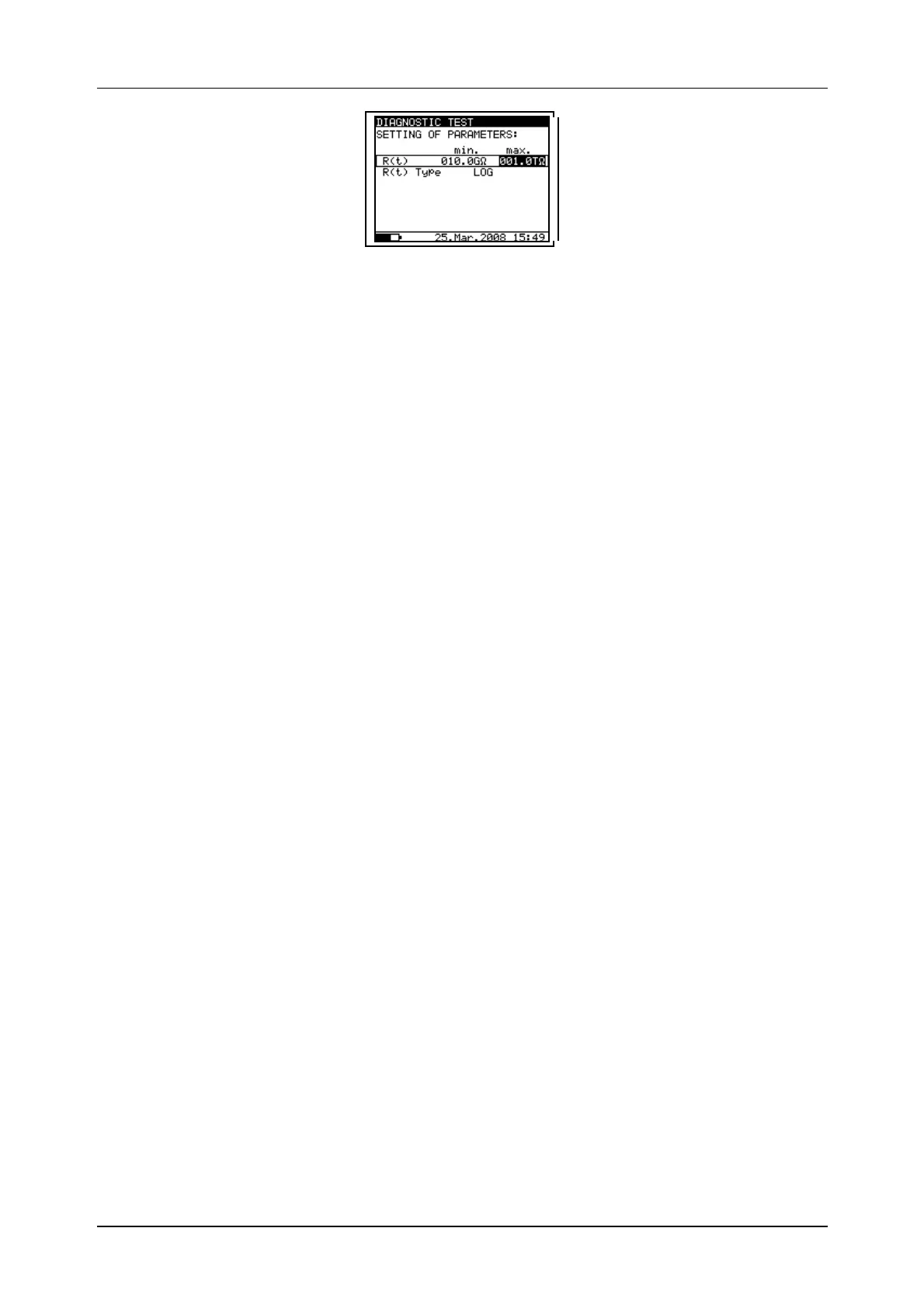

Fig. 21. Set-up menu of the Graph R(t)
Notes:
- The time duration of Graph R(t) is equal to the value of Timer 3.
- The Timer value could be very long (up to 100 minutes), so the Special automatic
decimation algorithm is use to write the Graph R(t) to the LCD.
- The cursors of the Graph R(t) could be activated with  key
- The cursors of the Graph R(t) could be moved with  and  keys.
Warning!
 Refer to Warnings chapter for safety precautions!
