MI 3201 TeraOhm 5 kV Plus Specifications
46
Noise current rejection (resistive load)
Fil0 1.5
Fil1 2.5
Fil2 4.5
Fil3 5

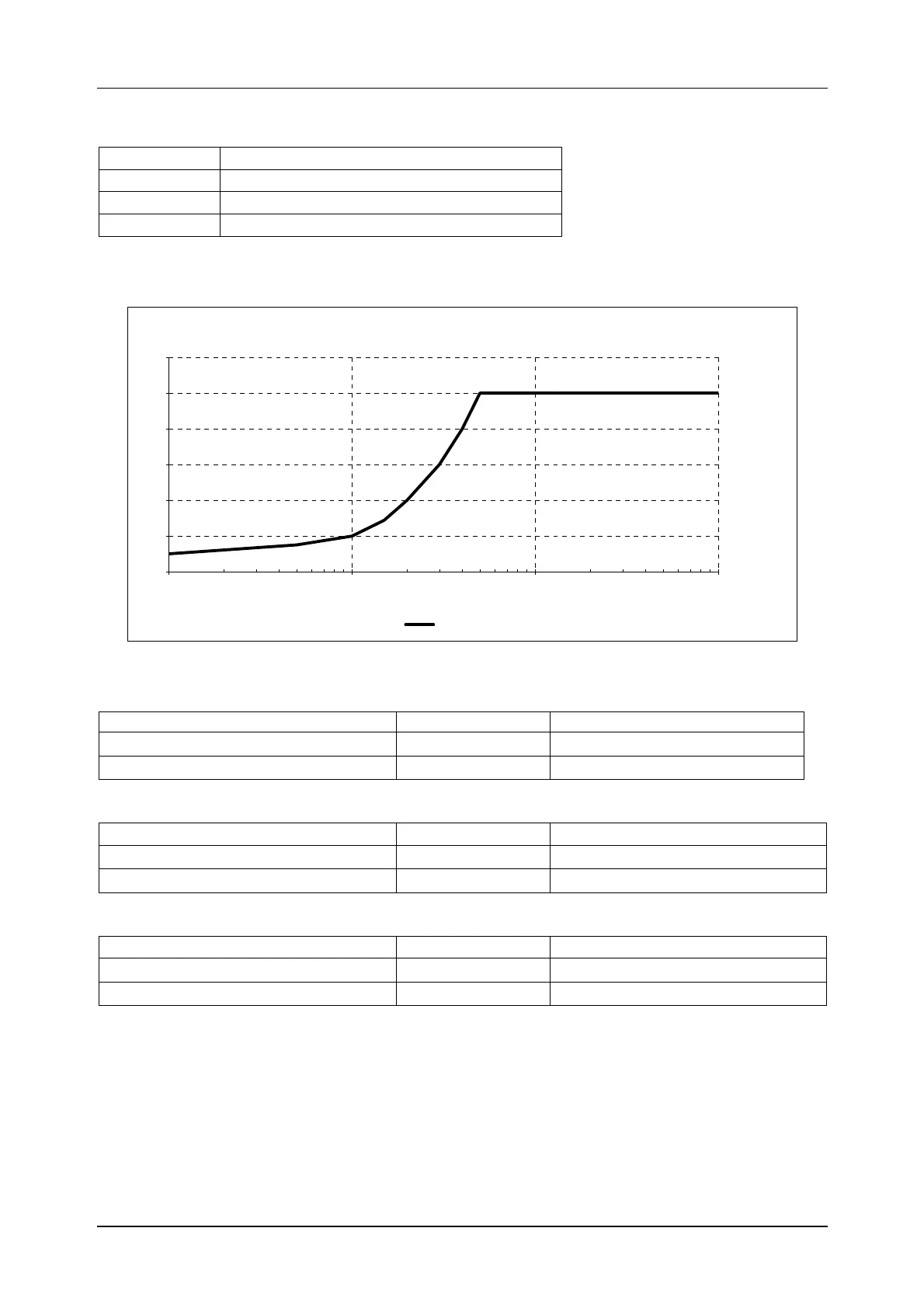

Generator Capability vs Resistance
0
1
2
3
4
5
6
0,1 1 10 100
[ M

]
[ kV ]
Utest=5kV
Dielectric absorption ratio DAR
Display range DAR Resolution Accuracy
0.01  9.99
0.01
(5% of reading + 2digits)
10.0  100.0
0.1
(5% of reading)
Polarization index PI
Display range PI Resolution Accuracy
0.01  9.99
0.01
(5 % of reading + 2 digits)
10.0  100.0
0.1
(5% of reading)
Dielectric discharge test DD
Display range DD Resolution Accuracy
0.01  9.99
0.01
(5 % of reading + 2 digits)
10.0  100.0
0.1
(5% of reading)
Capacitance range for DD test: 5 nF to 50 F.
Step voltage
DC test voltage:
Voltage value: Any value within 1000 V (200 V, 400 V, 600 V, 800 V, 1000 V)
and 5 kV (1000 V, 2000 V, 3000 V, 4000 V, 5000 V), steps by
125 V.
Accuracy: -0 / +10 % + 20 V.
