2 Overview of the instrument
860 KF Thermoprep
￭￭￭￭￭￭￭￭
7
1
8
2
3
5
6
7
4

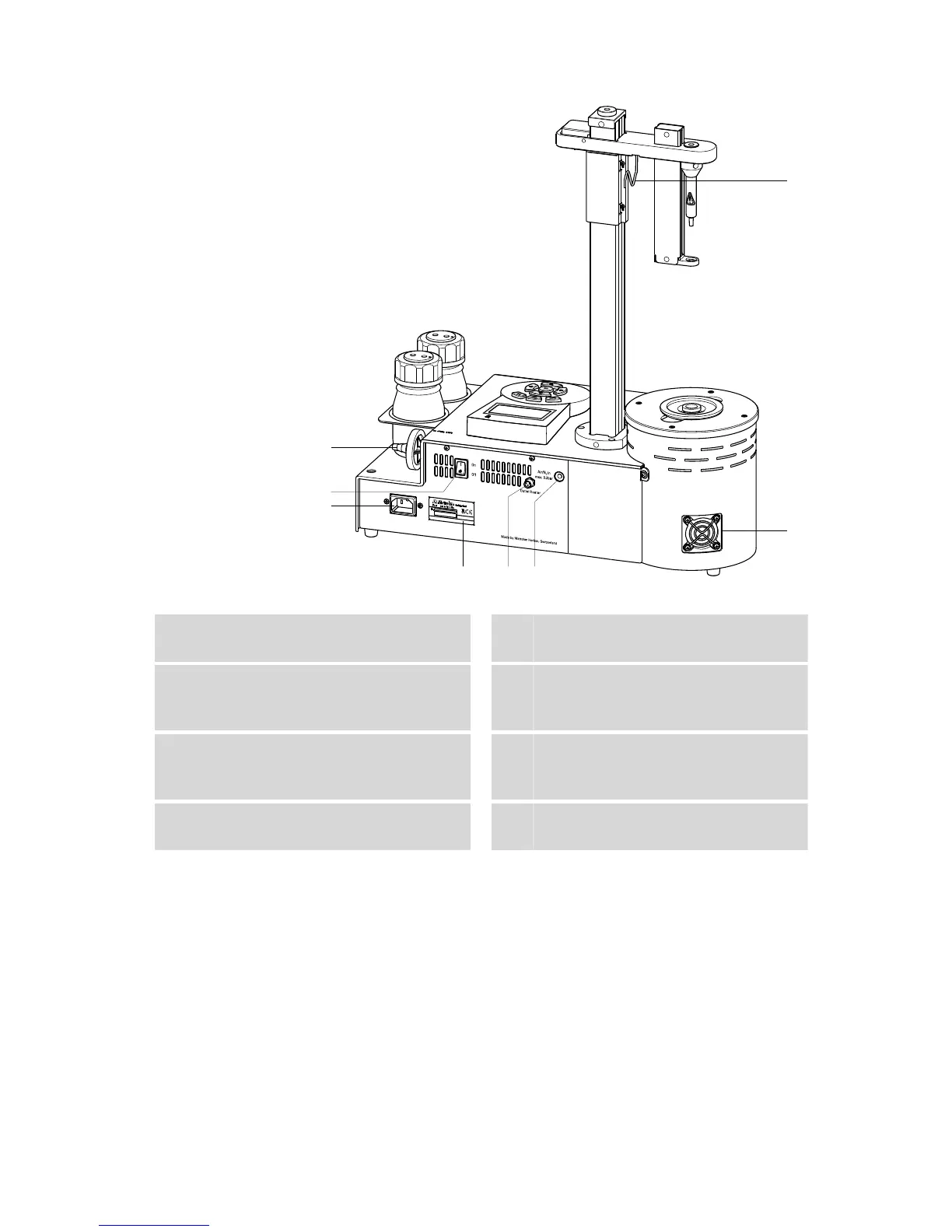

Figure 2
Rear
860 KF Thermoprep
1
Air pump inlet
With 6.2724.010 dust filter.
2
Mains switch
3
Mains connection socket
4
Type plate
Contains specifications concerning mains
voltage and serial number.
5
Outlet heating connection
For the heating tube.
6
Air/nitrogen connector
With M6 interior thread. Inlet for external
gassing.
7
Fan
For cooling the oven module.
8
Cable holder (6.2060.010)
14
16
