3 Installation
860 KF Thermoprep
￭￭￭￭￭￭￭￭
9
3.3 Mounting the guidance rod
The guidance rod with the guide head is enclosed separately with the 860
KF Thermoprep and must first be mounted.
Proceed as follows:
1
Move the guide head of the guidance rod a bit downwards by press-
ing the fixing lever.

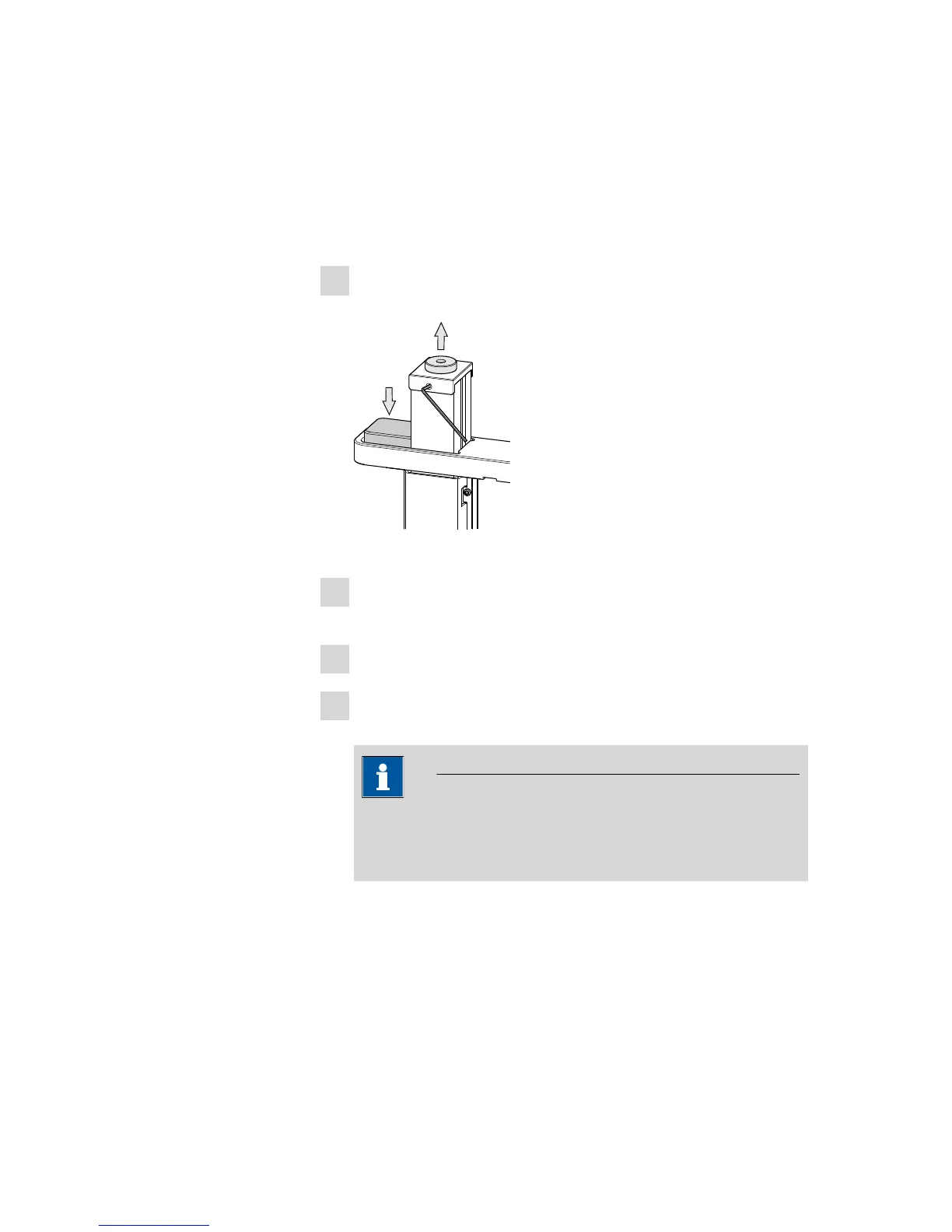

Figure 4 Loosen the adapter
2
Loosen the adapter on the head of the guidance rod with a hexagon
key.
3
Remove the adapter.
4
Insert the tubing jutting out of the housing from below into the guid-
ance rod.
Note
This tubing conveys the gas from the flow controller upward
through the guidance rod to the guide head. From there the gas is
guided to the double hollow needle, see next chapter.
