3.3 Mounting the guidance rod
■■■■■■■■■■■■■■■■■■■■■■
10
■■■■■■■■
860 KF Thermoprep
4
5

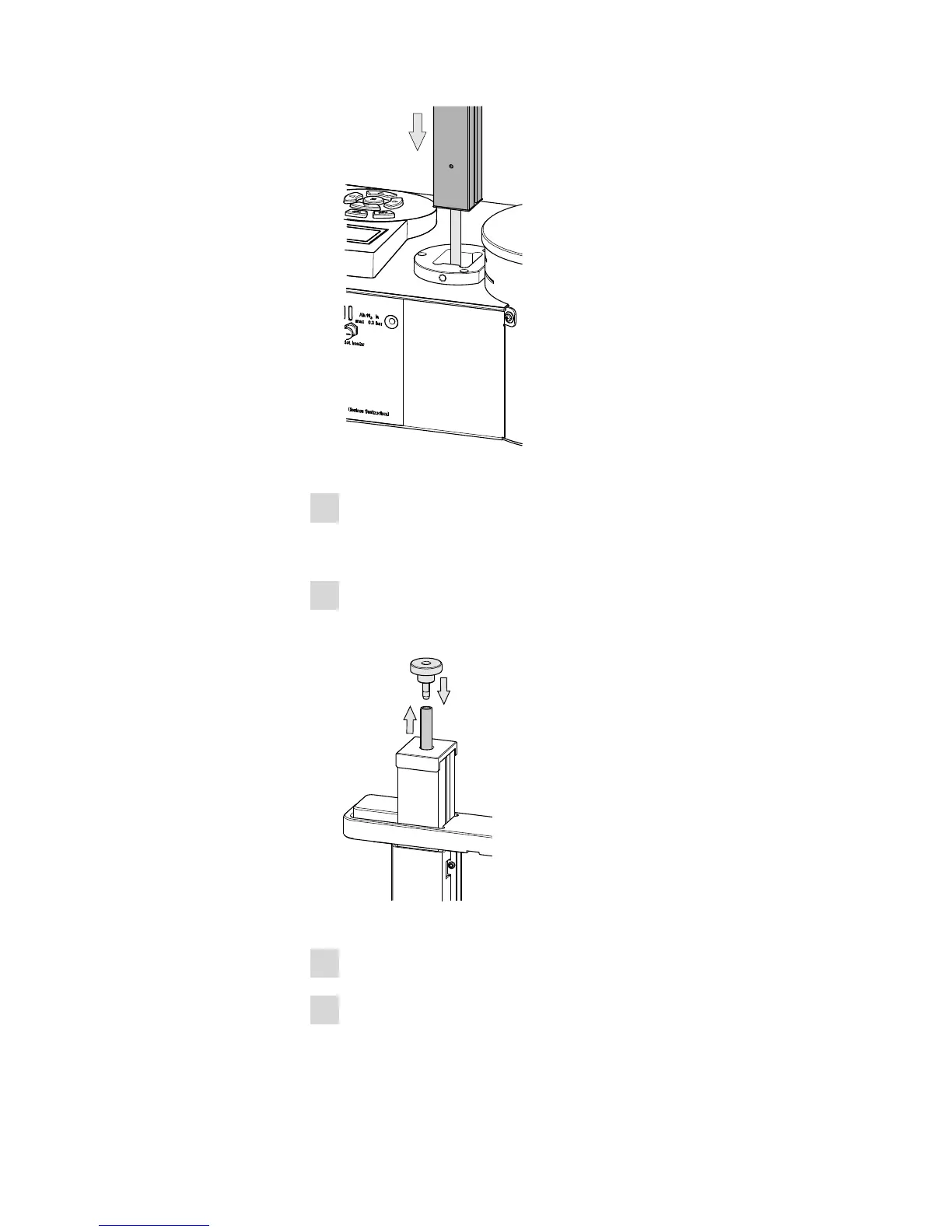

Figure 5 Mounting the guidance rod
5
Insert the guidance rod into the opening intended for this purpose
from above and push it downwards until it hits the stop. Observe the
orientation of the guidance rod.
6
Pull out the tubing inside the guidance rod as far as possible. Eventu-
ally use a piece of sand paper in order to be able to better grasp the
tubing.
7
6
Figure 6 Mounting tubing
7
Fasten the tubing on the olive of the 4.860.4260 adapter.
8
Pull out the guidance rod as far as possible in order that the adapter
rests close on the guidance rod.
