3.6 Mounting the heating tubing
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14
￭￭￭￭￭￭￭￭
860 KF Thermoprep
2
Screw the 6.2816.080 outlet needle onto the Luer connector of
the needle holder.
3
Carefully guide the 6.2816.070 injection needle into the opening
of the distributor from above and allow it to drop down.
Note
Take care to ensure that the white PTFE seal is positioned securely
on the needle.
4
Screw the 6.1805.100 FEP tubing by hand onto the opening of
the distributor. Screw the other end of the tubing into the opening
on the upper side of the guidance rod.
3.6 Mounting the heating tubing

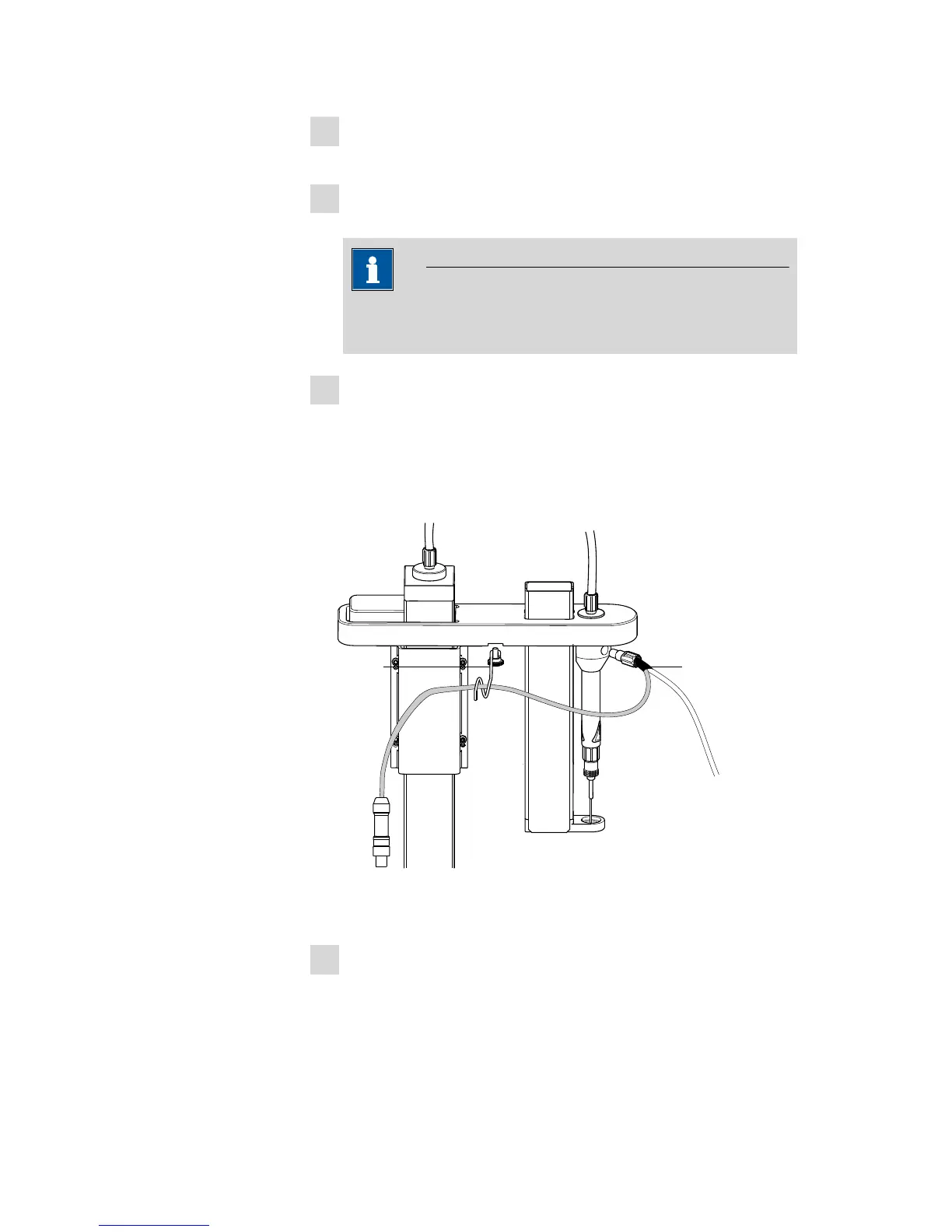

Figure 11 Mounting the heating tubing (view from rear)
Proceed as follows:
1
Screw the M6 connector of the 6.1830.030 heating tubing into
the side opening of the distributor on the guide head.
