3 Installation
Combustion-IC-System
￭￭￭￭￭￭￭￭
13
Next steps
Connect
capillary/
tubing at
port …
… to
1 T connector (6.1808.060)
2 Bottle with the absorber solution
3 Connect the Metrosep A Trap 1 – 100/4.0 inlet
You can find detailed instructions in the manual for the 920 Absorber
Module.
3.4 10-port-valve
3.4.1 Connecting the ports
The transfer tubing and capillaries for all of the liquids being used are con-
nected to the 10-port valve.
Connecting the 10-port valve
Connect the ports of the 10-port valve according to the following figure:
NOTICE
We recommend connecting the central port first.

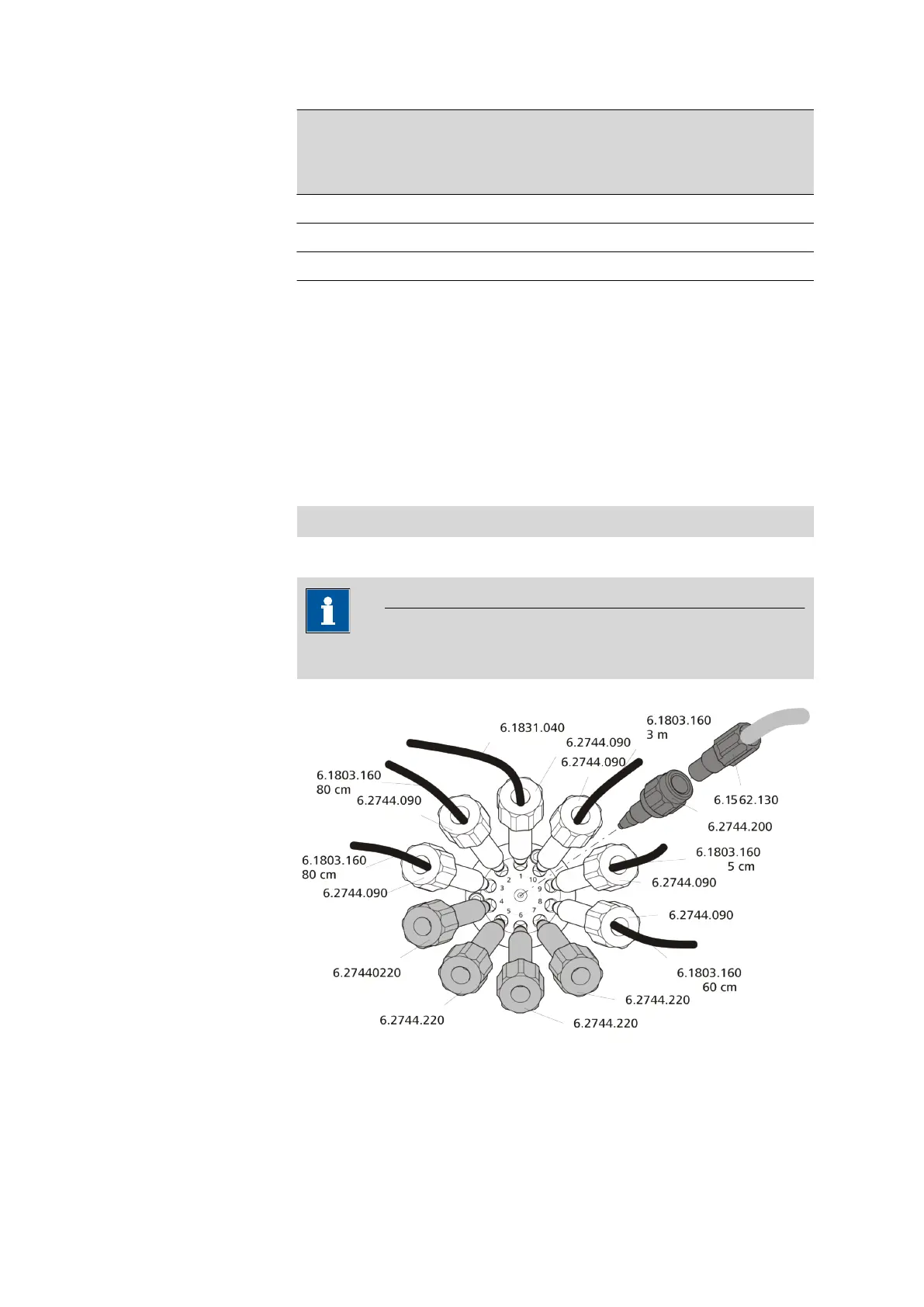

Figure 7 Connecting the 10-port valve
