3 Installation
Combustion-IC-System
￭￭￭￭￭￭￭￭
21
3.6.4 Connecting the Combustion Oven (TEI) outlet

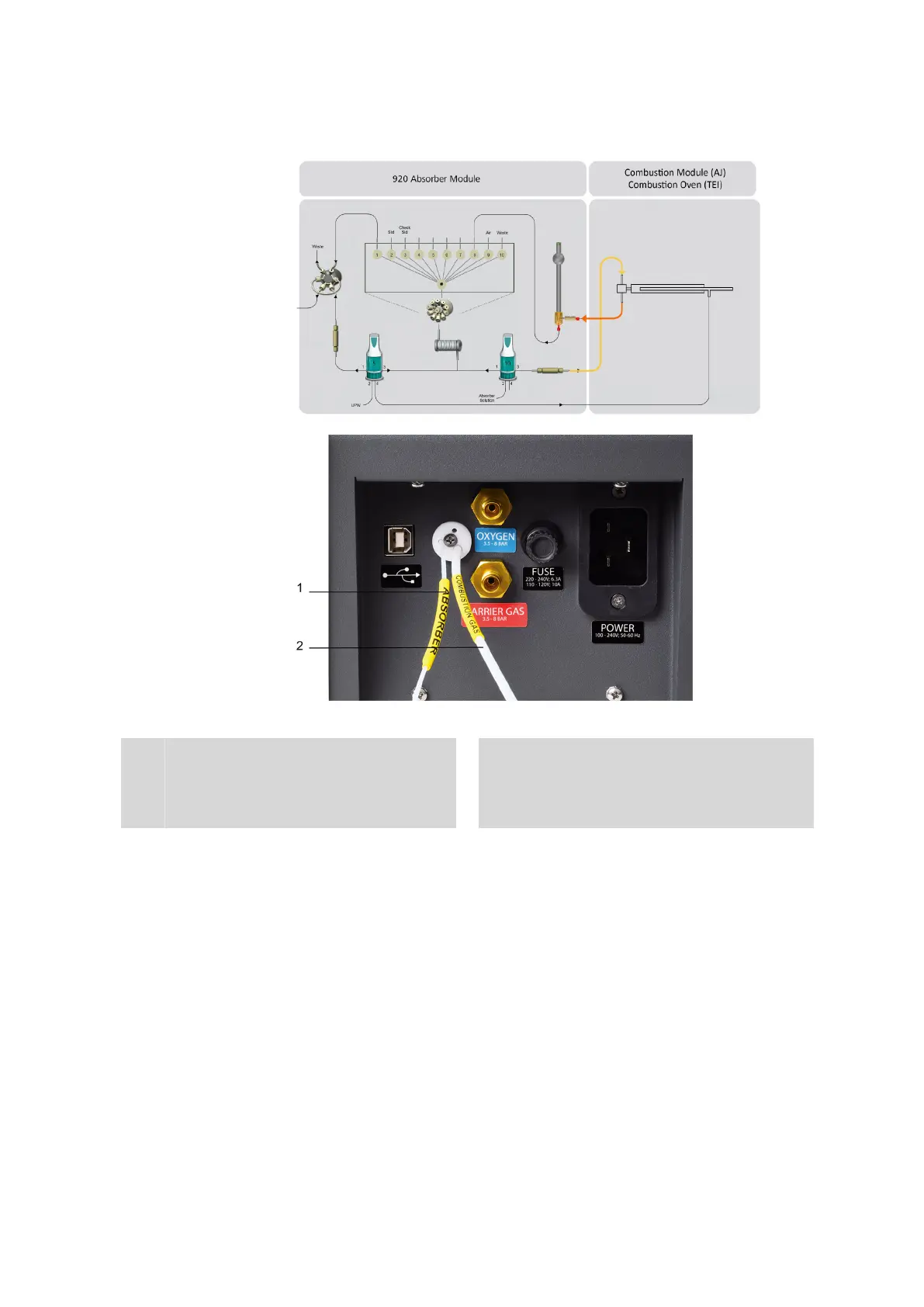

Figure 12 Combustion Oven (TEI) – Outlet
1
Absorber solution capillary
Capillary for the infeed of absorber solution
at the tube outlet.
2
Combustion gases capillary
Capillary for transporting the combustion
gases from the tube outlet to the absorber
tube.
3.6.5 Connecting the 930 Compact IC Flex
Combustion Module (AJ): A capillary is routed out on the left side of the
920 Absorber Module.
Combustion Oven (TEI): A capillary is routed out on the right side of the
920 Absorber Module.
This capillary is connected to the injection valve of the 930 Compact IC
Flex.
