3.5 6-port valve
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14
￭￭￭￭￭￭￭￭
Combustion-IC-System
Next step
Connect
capillary/
tubing at
port …
… to
1 6-port valve (see chapter 3.5, page 14)
2 Bottle with standard solution
3 Bottle with check standard
8 Absorber tube
10 Waste container
You can find detailed instructions in the manual for the 920 Absorber
Module.
3.5 6-port valve
3.5.1 Connecting the ports
Connecting the 6-port valve
Connect the ports of the 6-port valve according to the following figure:
6.1803.030
6.1803.160
6.1803.030
6.2744.010
6.2744.010
6.2744.010
6.2744.010
6.1831.040
6.1825.290
1
2
3
4 5
6

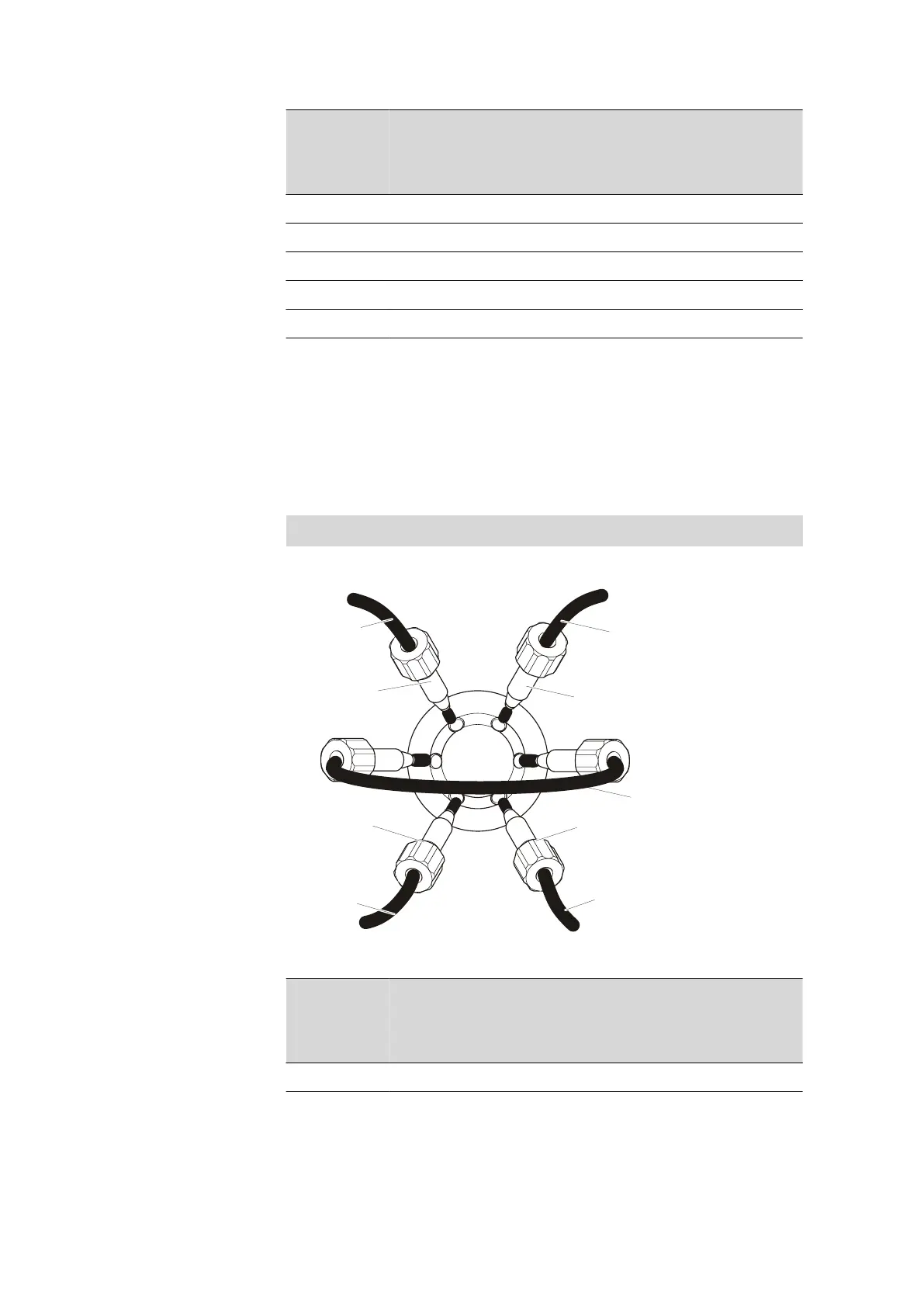

Figure 8 Connecting the 6-port valve
Next steps
Connect
capillary/
tubing at
port …
… to
2 Waste container
