3.6 Connecting the 920 Absorber Module to the remaining components
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
18
￭￭￭￭￭￭￭￭
Combustion-IC-System
3.6.2 Connecting the Combustion Module (AJ) outlet: absorber solution
The capillary with the yellow colored sleeve and the thicker capillary are
connected to the CIC T connector in the Combustion Module (AJ).
There are 2 connections on the CIC T connector in the Combustion Mod-
ule (AJ):

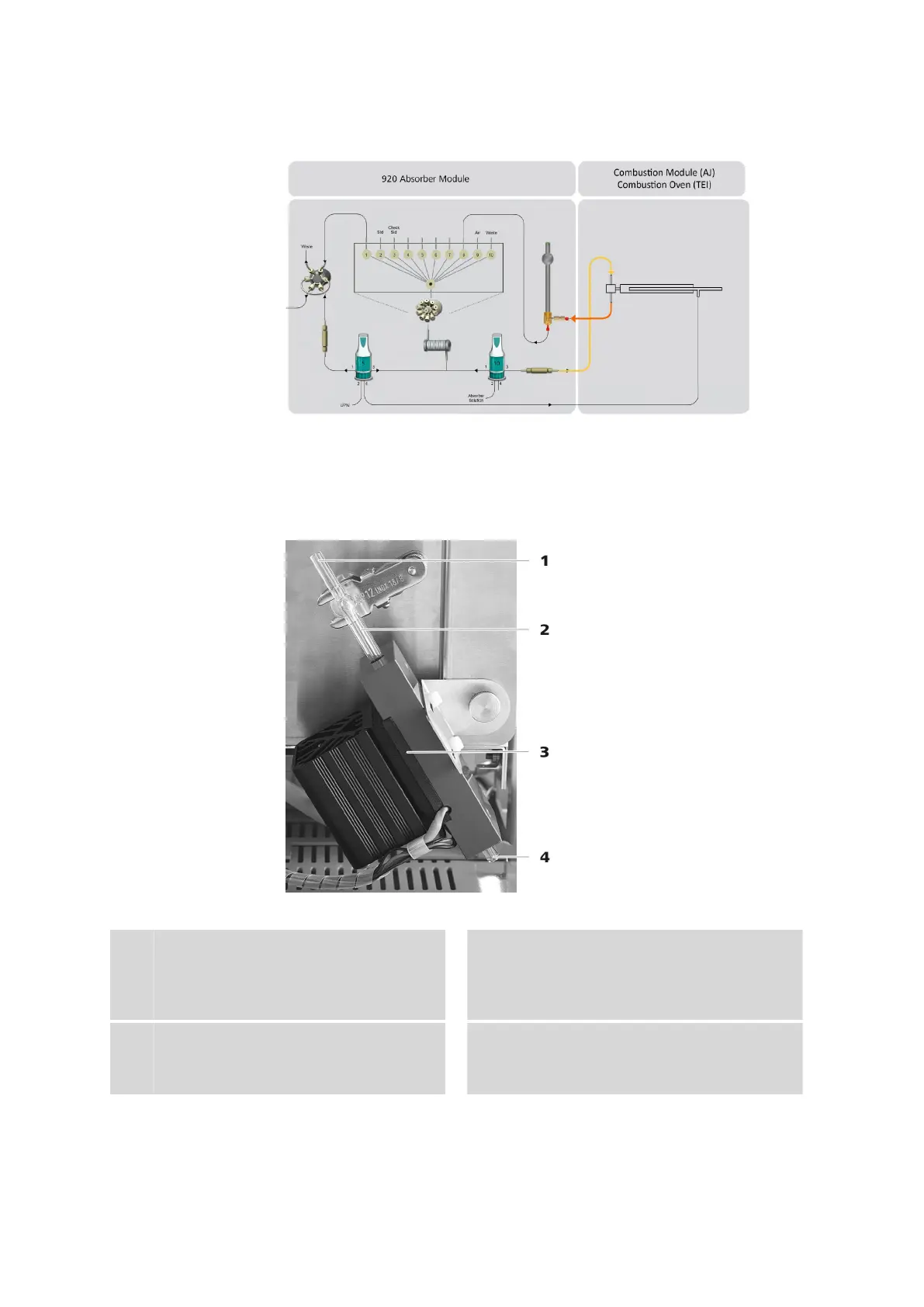

Figure 10
Combustion tube – Outlet
1
Absorber solution connection
Connection for the capillary with the yellow
colored sleeve (4-9).
2
T connector CIC (6.7301.210)
T connector on the combustion tube's out-
let. For feeding the absorber solution in and
removing the combustion gases.
3
Peltier cooler
For cooling the combustion gases at the
combustion tube's outlet.
4
Combustion gases connector
Connector for the PTFE capillary, 1/8 / 1/16
ID / 1.5 m (6.1803.130) (4-8).
