WARNING
WHENEVER WORKING INSIDE THE ACTUATOR BE SURE TO FOLLOW
ALL GUIDELINES, AND HEED ALL WARNINGS IN THIS MANUAL. IF
INSTALLING AN OPTION KIT, BE SURE TO READ AND FOLLOW THE
SUPPLIED INSTRUCTIONS CAREFULLY AND HEED ANY ADDITIONAL
WARNINGS
This option can be installed in the eld; for 115 VAC
applications, order kit P/N VC099716 and for 230 VAC
applications, order kit P/N VC099723.
4.2 Option “I” – ISO 5211 Output
150 – 600 lb•in (12 - 25 lb•ft; 17 - 68 Nm) models are
supplied with a 3/4” female square output coupling; when
the “I” option is selected they are supplied with a 14 mm
female square.
1000 – 3000 lb•in (83 - 250 lb•ft; 113 - 339 Nm) models are
supplied with a 1” female square output coupling; when the
“I” option is selected, 1000 lb•in (83 lb•ft; 113 Nm) models
are supplied with a 19 mm female square and 1500 – 3000
lb•in (125 - 250 lb•ft; 169 - 339 Nm) models are supplied
with a 22 mm female square.
This option is factory installed only.
4.3 Option “K” – Mechanical Brake
P/N VC099715
The brake option prevents back-driving; it is required
on all buttery valve and damper applications. It is also
recommended on PVC ball valves and resilient seated
valves. The brake option draws 4 watts and is universal to
all standard V-Series actuators. It is simple to install with a
plug-in connector and two philips head mounting screws.
No additional brackets are required.
WARNING
WHENEVER WORKING INSIDE THE ACTUATOR BE SURE TO FOLLOW
ALL GUIDELINES, AND HEED ALL WARNINGS IN THIS MANUAL. IF
INSTALLING AN OPTION KIT, BE SURE TO READ AND FOLLOW THE
SUPPLIED INSTRUCTIONS CAREFULLY AND HEED ANY ADDITIONAL
WARNINGS.
This option can be installed in the eld; order kit P/N
VC099715.
4.4 Option “P” – Feedback Potentiometer
P/N VC099200
The Feedback Potentiometer option provides 0 – 1000 Ohm
resistance feedback and includes a 12-position terminal block
for internal wiring (see IMO-I9200 for additional reference).
WARNING
WHENEVER WORKING INSIDE THE ACTUATOR BE SURE TO FOLLOW
ALL GUIDELINES, AND HEED ALL WARNINGS IN THIS MANUAL. IF
INSTALLING AN OPTION KIT, BE SURE TO READ AND FOLLOW THE
SUPPLIED INSTRUCTIONS CAREFULLY AND HEED ANY ADDITIONAL
WARNINGS
This option can be installed in the eld; order kit P/N
VC099200.
4.5 Option “S2” – Two Auxiliary Limit
Switches P/N VC099000
The extra switches and stainless steel cams provide dry
contacts and are fully adjustable to trip at any position. They
are often used for position indication or to interlock other
devices (such as in sequencing operations). The switches
are single pole, double throw switches rated for 1/2 HP,
11 amps @ 250 VAC, CSA certied. Auxiliary switch kit P/N
VC099000 is universal to all standard V-Series actuators and
includes “ying wiring leads” for termination inside of the
actuator enclosure using the supplied 6-position terminal
block.
WARNING
WHENEVER WORKING INSIDE THE ACTUATOR BE SURE TO FOLLOW
ALL GUIDELINES, AND HEED ALL WARNINGS IN THIS MANUAL. IF
INSTALLING AN OPTION KIT, BE SURE TO READ AND FOLLOW THE
SUPPLIED INSTRUCTIONS CAREFULLY AND HEED ANY ADDITIONAL
WARNINGS.
This option can be installed in the eld; order kit P/N
VC099000.
4.6 Option “T” – Heater and Thermostat
P/N VC099515, P/N VC099523
The heater and thermostat option is a self-adhesive,
resistance heater strip which is applied to the primary

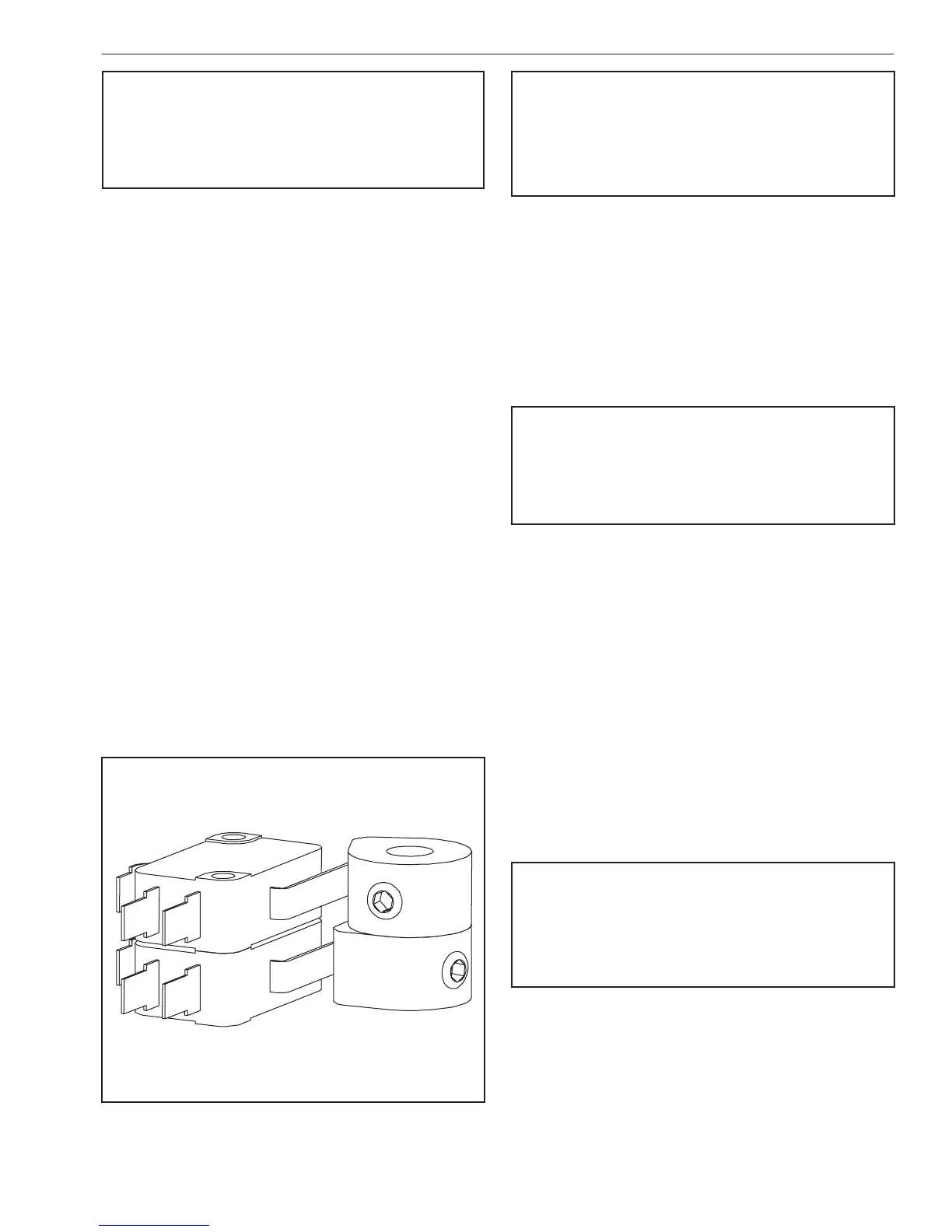

Figure 7
Option ”S2” - Two Auxiliary Limit Switches
IMO 11/17
IMO-I2500 EN 9
