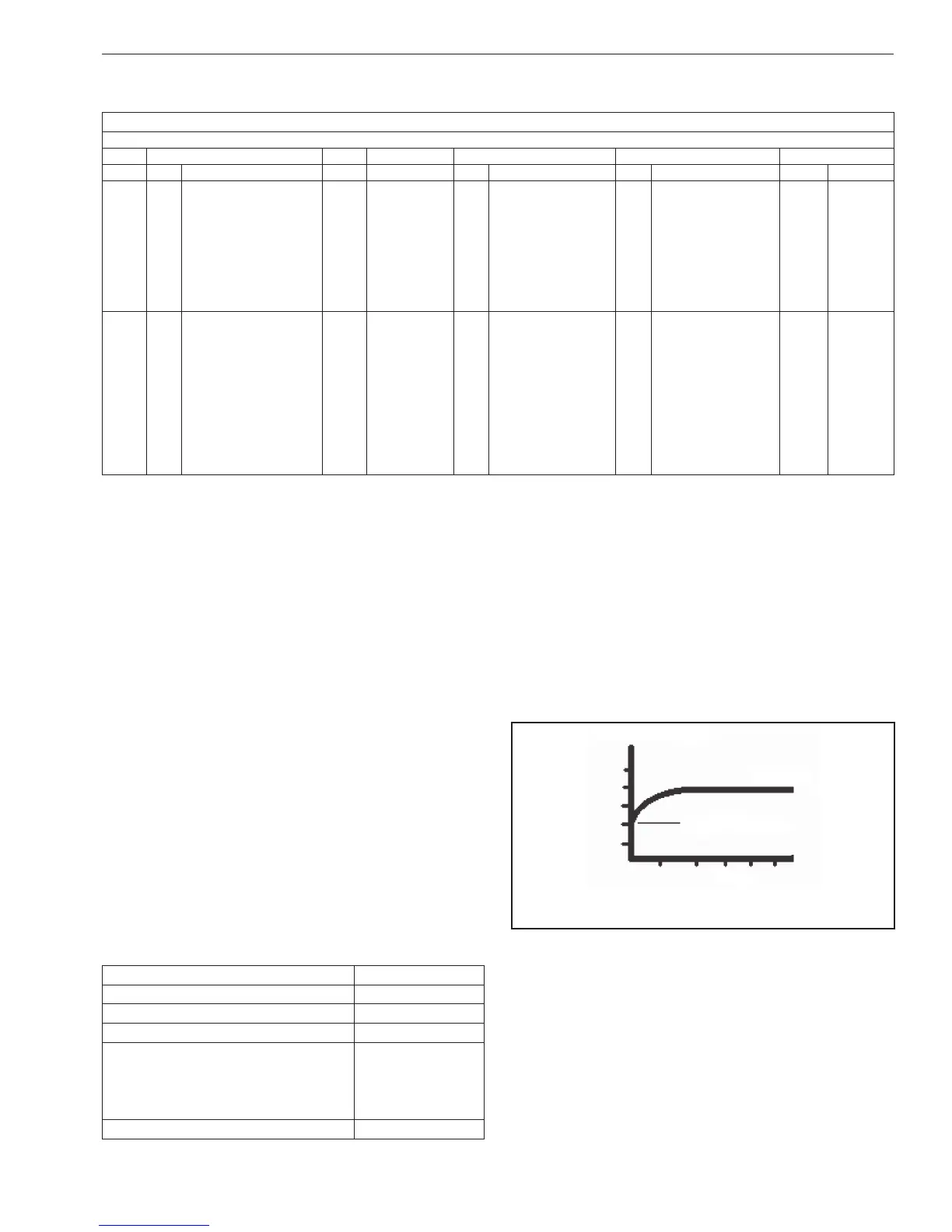

7. VSERIES ACTUATORS BY MODEL NUMBER
Table 3
Standard V/LV-Series Actuators (with “N” in model number before the voltage code)
Series Enclosure Type Torque Board Options
1
Other Options Operating Voltage
Code Description Code Description Code Description Code Description Code Description
V W Weathertight 150 150 lb•in; C Control Board H
2
Tropical Heater/Thermostat N115AC 115 VAC
NEMA 4/4X 12 lb•ft; 17 Nm J Speed Control/Timer Board I
3a
ISO 5211 Output N230AC 230 VAC
300 300 lb•in; U Iso/Readback Board K Brake
WX Weathertight & Explosionproof 25 lb•ft; 34 Nm P Feedback Potentiometer
NEMA 4/4X/7&9 600 600 lb•in; S2 Two Auxiliary Limit Switches
50 lb•ft; 68 Nm T
4
Heater/Thermostat
Y
5a
Keyed Output
Z Handwheel
LV W Weathertight 1000 1000 lb•in C Control Board H
2
Tropical Heater/Thermostat N115AC 115 VAC
NEMA 4/4X 83 lb•ft; 113 Nm J Speed Control/Timer Board I
3b
ISO 5211 Output N230AC 230 VAC
1500 1500 lb•in U Iso/Readback Board K Brake
WX Weathertight & Explosionproof 125 lb-ft; 169 Nm P Feedback Potentiometer
NEMA 4/4X/7&9 2000 2000 lb•in S2 Two Auxiliary Limit Switches
167 lb-ft; 226 Nm T
4
Heater/Thermostat
2500 2500 lb•in Y
5b
Keyed Output
208 lb-ft; 282 Nm Z Handwheel
3000 3000 lb•in
250 lb-ft; 339 Nm
Notes: 1. Select only one board option, as needed.
2. This heater option activates at or below 90˚F and deactivates at 110˚F; it is recommended in high-humidity applications.
3a. 150 – 600 lb•in (12 - 25 lb•ft; 17 - 68 Nm) models with “I” option are supplied with a 14 mm female square (note that without option “I”
the female square is 3/4”)
3b. 1000 lb•in (83 lb•ft; 113 Nm) models with “I” option are supplied with a 19 mm female square and 1500 – 3000 lb•in (125 - 250 lb•ft;
169 - 339 Nm) models are supplied with a 22 mm female square (note that without option “I” the female square is 1”)
4. This heater option activates at or below 40˚F and deactivates at 60˚F; it is recommended in applications where the temperature may
drop below 32˚F.
5a. 150 - 600 lb•in (12 - 25 lb•ft; 17 - 68 Nm) models with “Y” option are supplied with a 15mm female keyed output.
5b. 1000 - 3000 lb•in (83 - 250 lb•ft; 113 - 339 Nm) models with “Y” option are supplied with a 20mm female keyed output.
For enclosure specications and dimensions see Tables 1-2
and Figure 8.
• Enclosure “W” (weathertight) is certied by CSA
to meet specications for NEMA 4/4X; IP 66 for
weathertight and dust-tight, environments and is CE
compliant. It is intended for non-hazardous locations;
indoor or outdoor use.
• Enclosure “WX” (weathertight & explosionproof) is
certied by CSA to meet specications for NEMA 7&9,
hazardous locations, (Class I, Division 1, Groups C, and
D; Class II, Division 1, Groups E, F, and G; Class III) as well
as to meet NEMA 4/4X and IP 66 specications. The
enclosure is CE compliant, certied to ATEX directive
94/9/EC: Ex d IIB T6 Gb, and IECEx CSA 14.0057X.
Sample Model Code: LVW1500CHIKS2N230AC
Actuator Series LV
Enclosure Type W
Torque 1500
Board Option C
Other Options (if applicable) H
I
K
S2
Operating Voltage N230AC
• Torque = Breakaway Torque Valvcon electric actuators
are rated at breakaway torque. This is the torque required
to move a full load immediately upon power-up.
Running
Breakaway
Time
Actuator
Torque
Figure 10
IMO 11/17
IMO-I2500 EN 15
