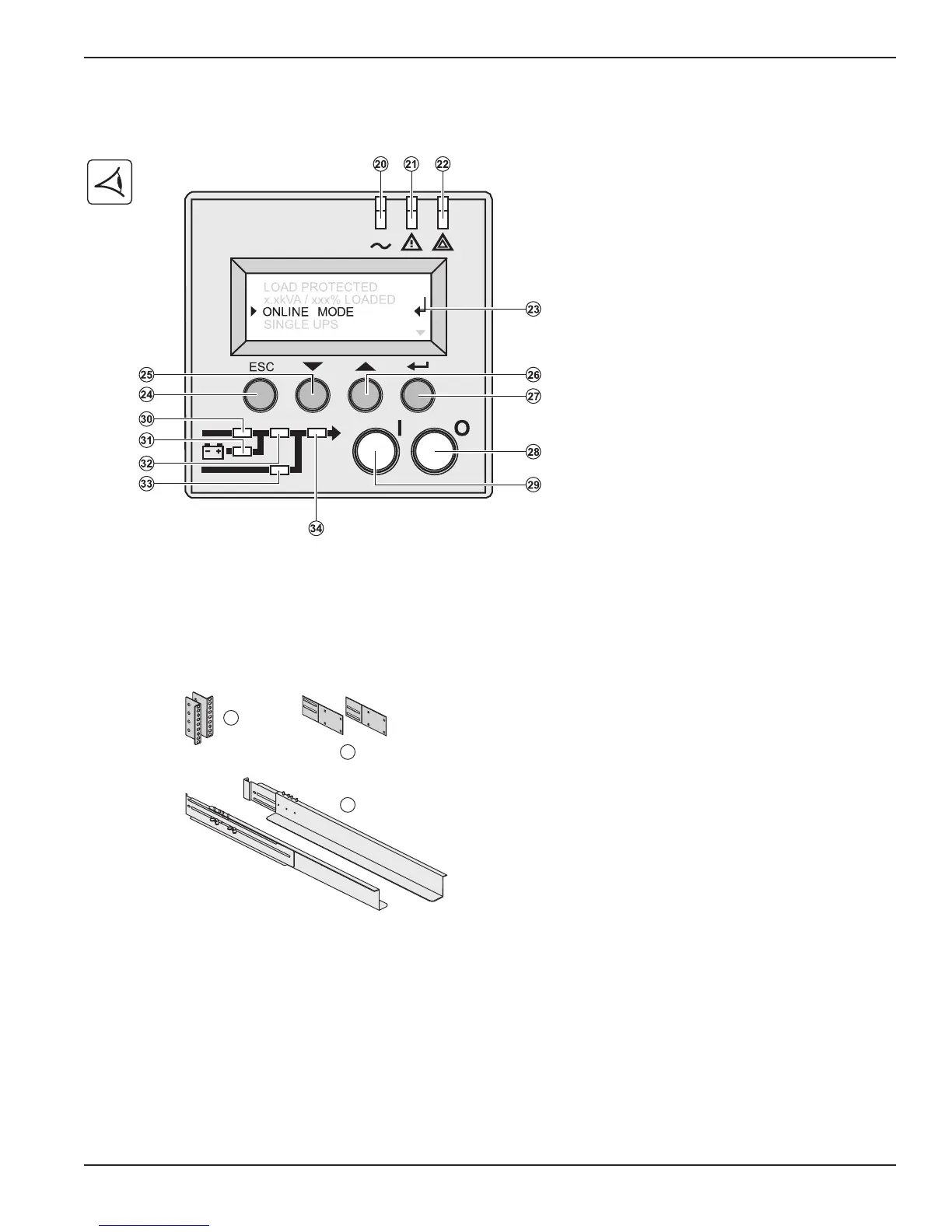

1.3 Display and Control Panel
1.4 Accessories for Rack Mount
Rack Mounting Kit
Telescopic rails for Pulsar MX RT mounting in 19’’ enclosure with mounting hardware
(35) Front mounting bracket
(36) Rear support bracket
(37) Telescopic rails, 639 mm to 1005 mm
length (27.36’’ to 39.96’’)
35
36
37
(20) Load protected LED
(21) Downgraded operation LED
(22) Load not protected LED
(23) Alphanumeric display
(24) Escape (cancel) button
(25) Function buttons (scroll down)
(26) Function buttons (scroll up)
(27) Enter (confirm) button
(28) UPS OFF button
(29) UPS ON button
(30) Rectifier LED
(31) Battery LED
(32) Inverter LED
(33) Bypass LED
(34) Load supplied LED
