2.2 Internal Battery Connection (Battery Start-up)
2.3 Installation in Tower Position

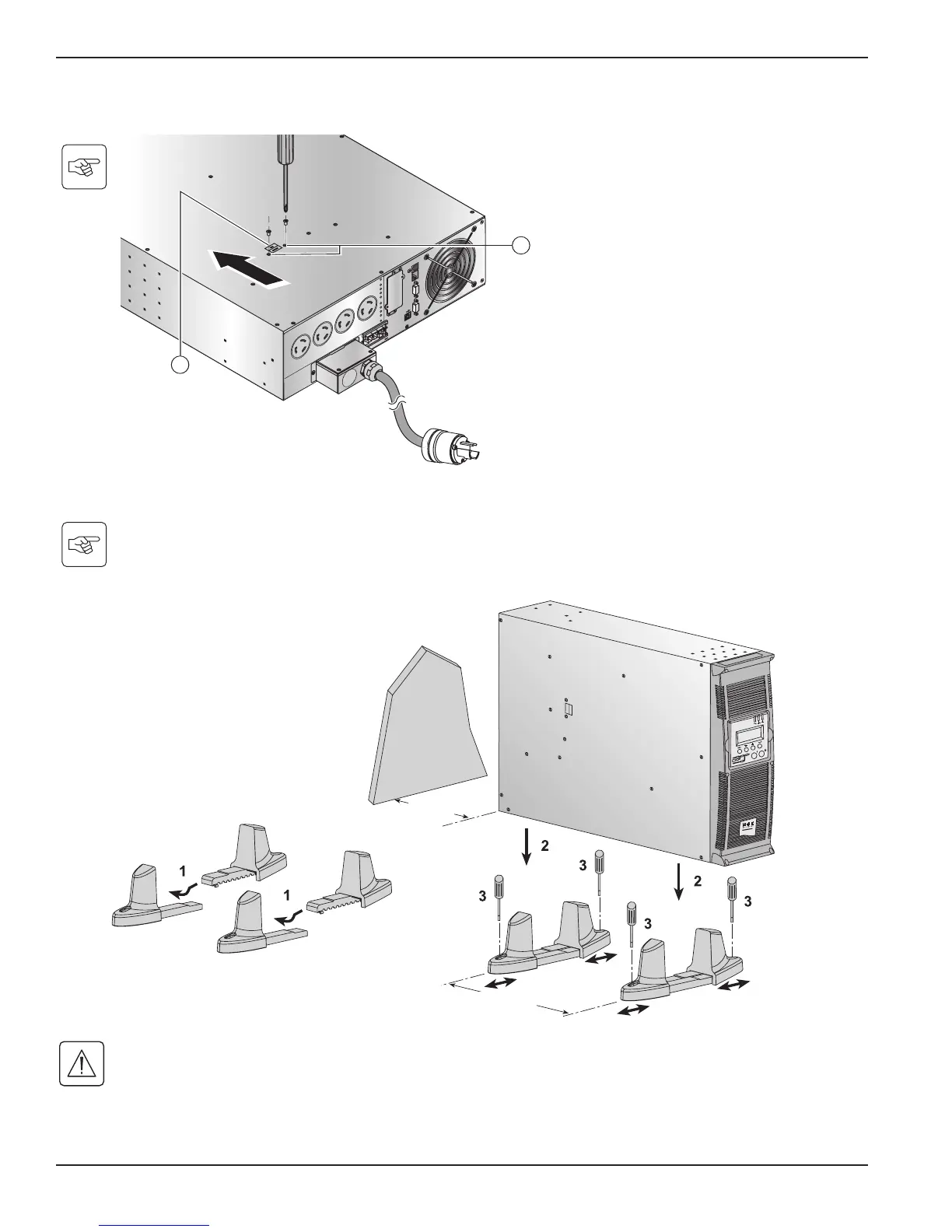

Follow steps 1 to 3 in the illustration below to adjust the tower stands for the upright position.
Always keep 6 inches free space behind the UPS rear panel. The distance between the tower stands should
be 17.7 inches.
6 inches
17.7 inches
1. Remove the two mounting screws (59) to
free the battery disconnect switch (60).
2. Push the battery disconnect switch so that
you can read “Connected”.
3. Secure the two mounting screws (59).
B
A
T
T
. N
O
.
20
0
-
25
0V
~
,
2
4
A
R
P
O
R
S
-
232
C
A
UT
I
O
N:
D
O
N
O
T
D
IS
C
O
N
N
E
C
T
B
A
T
TE
R
Y
C
A
B
L
E
U
N
D
E
R
L
O
A
D
B
A
T
T
E
R
Y
C
O
N
N
E
C
T
O
R
1
8
0
VD
d
c
59
60
Input Cable L6-30P
Pulsar MX
