ZLR964222L Line Module User Guide
21
Microsemi Corporation Confidential and Proprietary
5.3.1 Profile Wizard Menu
Figure 7 below shows the Main Menu of the Profile Wizard application with the ZLR964222L project file loaded.
Please note that the Tone, Cadence and Caller ID require a license to the VP-API-II and are not available with the
VP-API-II Lite version.

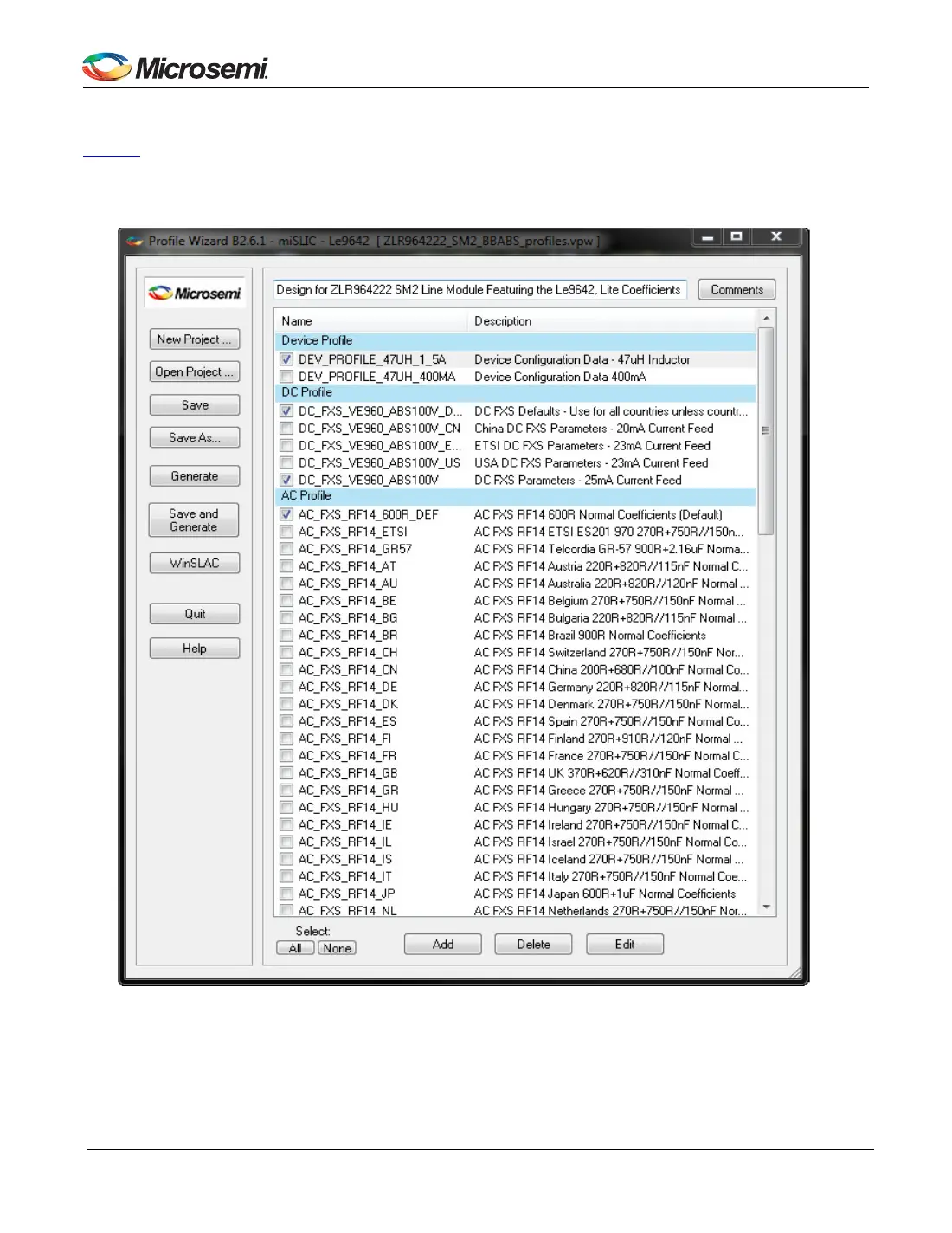

Figure 7 - Profile Wizard Main Menu - ZLR964222L Project File
Please refer to the Le9642 data sheet for more information about the settings of the various profiles. Note that
Microsemi has Profile examples for many countries.
