6.2.3 Gain Tracking and Noise

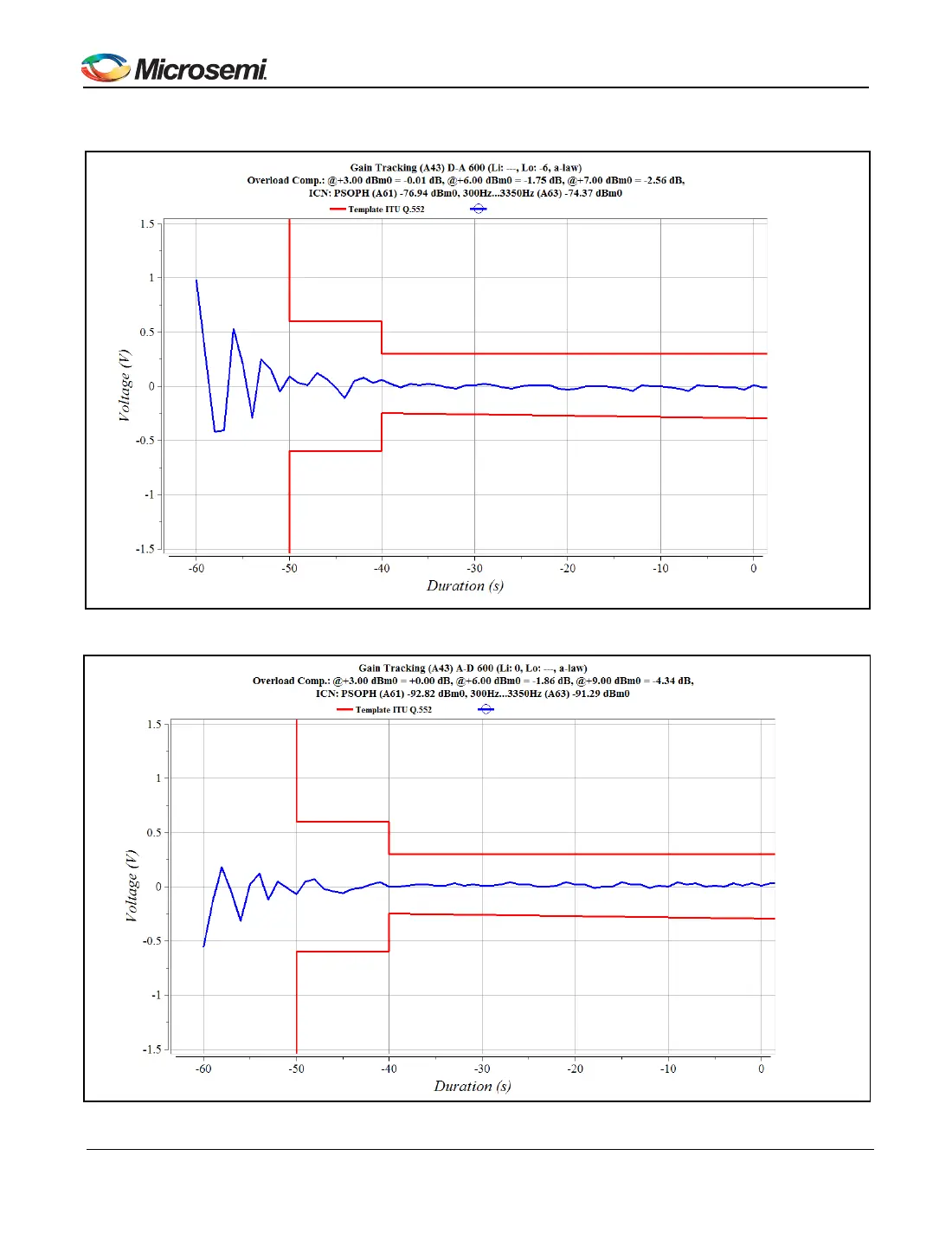

Figure 15 - Receive Path (D to A) Gain Tracking (Narrowband)

Figure 16 - Transmit Path (A to D) Gain Tracking (Narrowband)
