6.3 Wideband Transmission Performance
The following graphs illustrate the wideband (150 - 6800 Hz) transmission performance using a W&G PCM-4. Note
that the Le9642 device supports per-channel wideband mode.
6.3.1 Return Loss

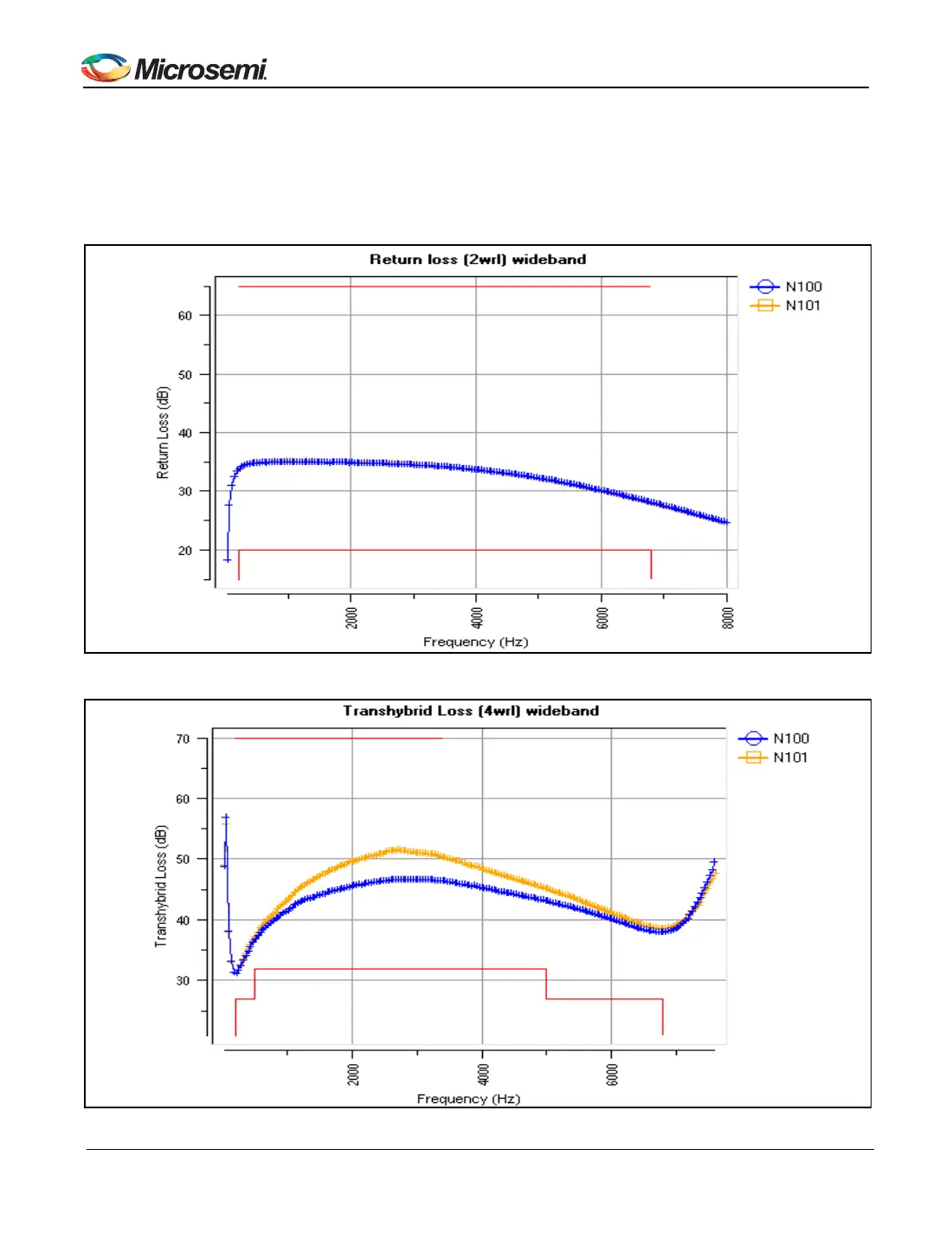

Figure 19 - Two-Wire Return Loss (Wideband)
Figure 20 - Four-Wire Return Loss (Wideband)


