6.3.4 Total Distortion and Harmonic Distortion

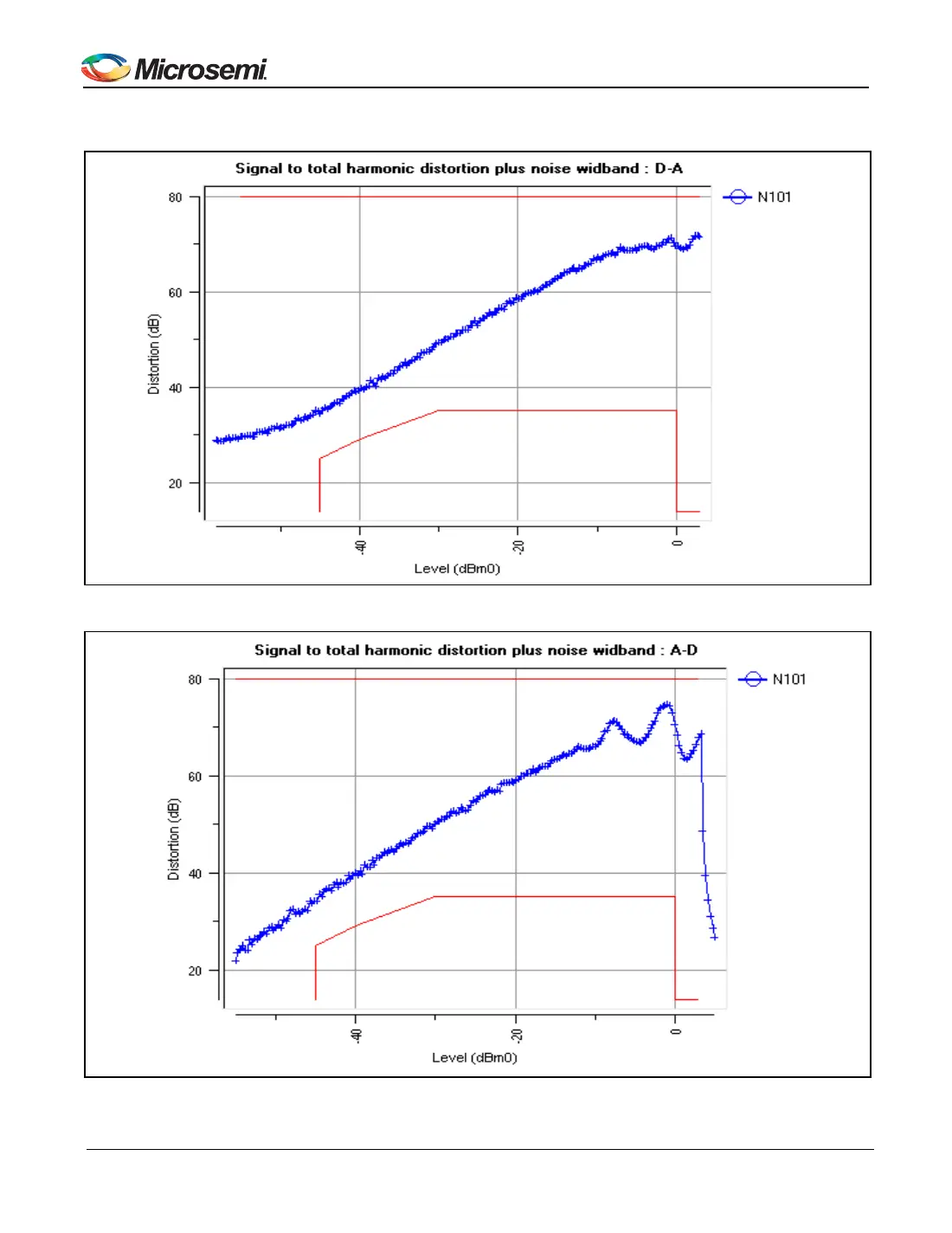

Figure 25 - Receive Path (D to A) Total Distortion (Wideband)

Figure 26 - Transmit Path (A to D) Total Distortion (Wideband)


