ZLR964222L Line Module User Guide

Microsemi Corporation Confidential and Proprietary

6.3.3 Gain Tracking and Noise

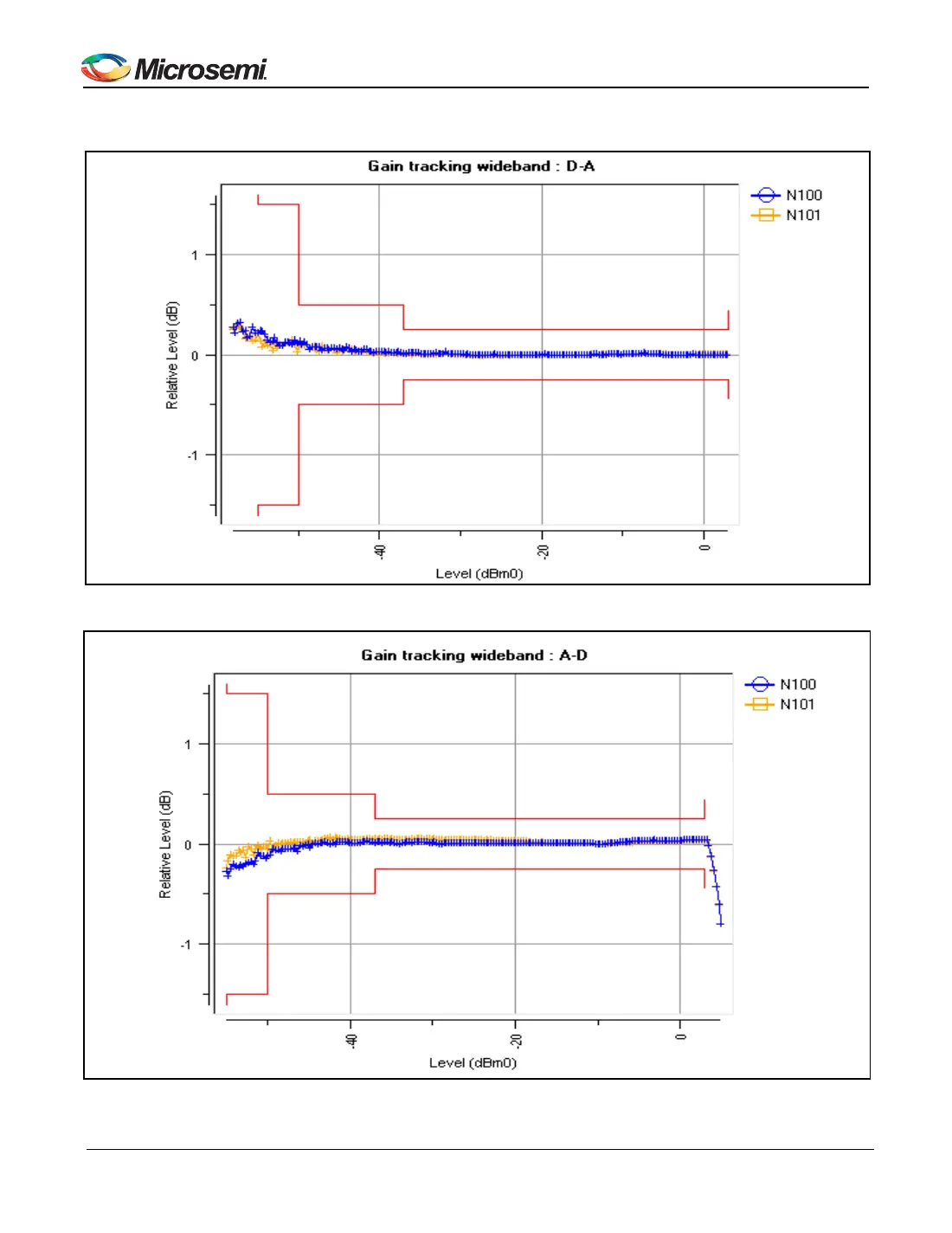

Figure 23 - Receive Path (D to A) Gain Tracking (Wideband)

Figure 24 - Transmit Path (A to D) Gain Tracking (Wideband)


