2-6 Micron Electronics, Inc.
Micron ClientPro 766Xi/Xe User’s Guide
Jumper Settings
Configuration
The jumpers on the Micron ClientPro 766Xi/Xe are preset at the factory and in
most cases do not need to be changed. However, if certain functions need to be
changed, the jumpers may need to be reconfigured. The following figure shows
an example of a jumper.

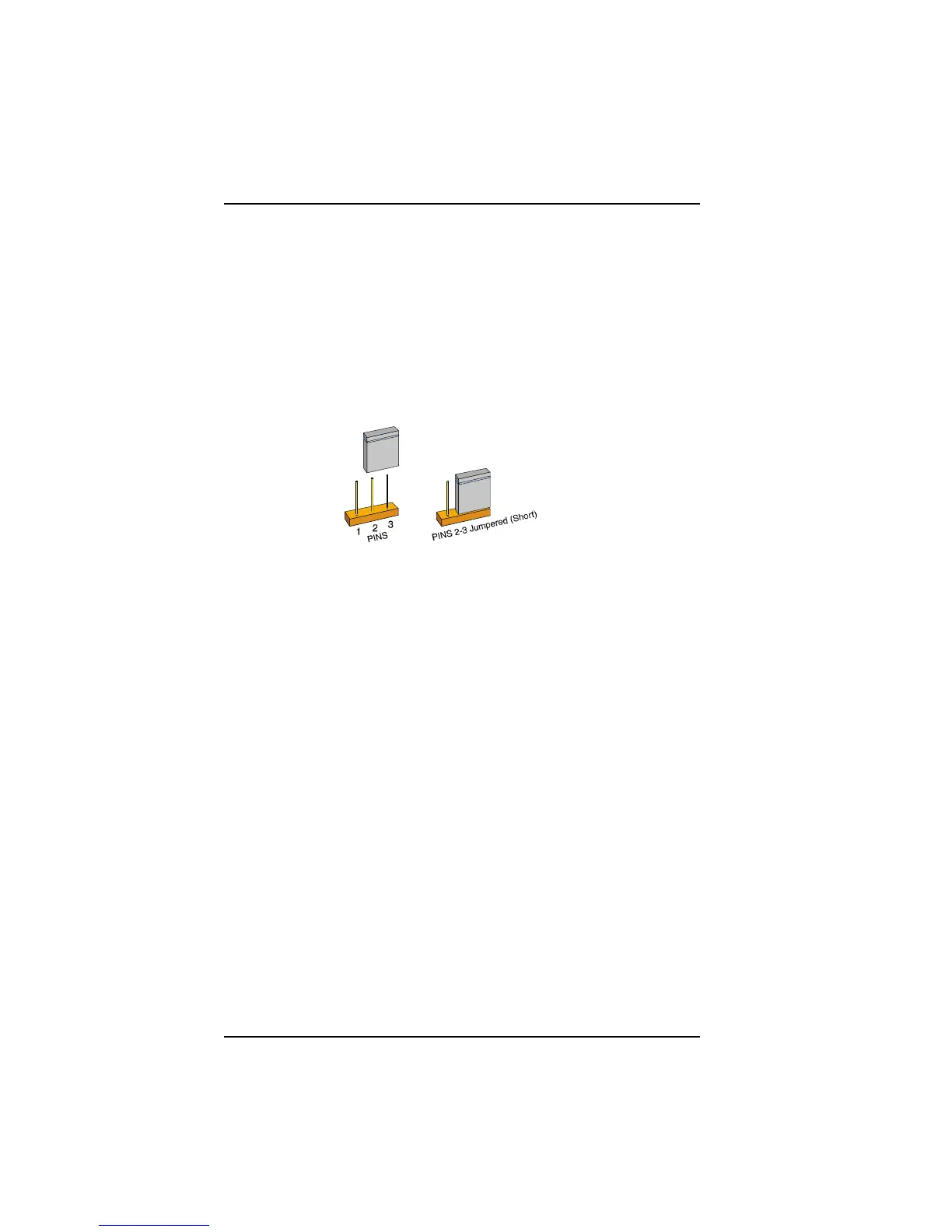

Figure 2-4. Example of a Jumper and Jumper Block
