Chapter 2: Technical Information

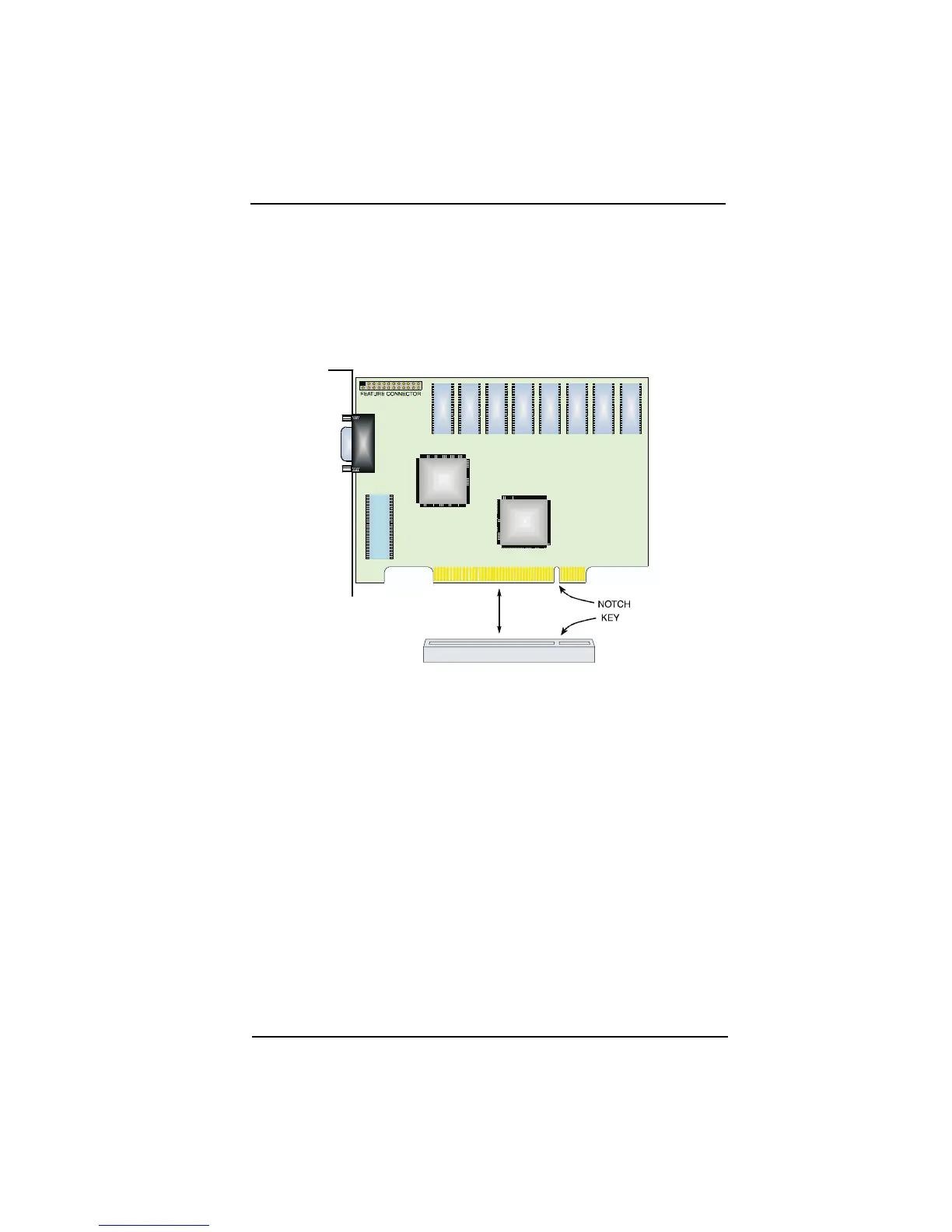

Figure 2-6. Installing a PCI Local Bus Card
NOTE: The ISA slot (J4B2) and the PCI slot (J4B1) are “shared slots.” When a
PCI card is installed into the (J4B1) PCI slot, the (J4B2) ISA slot is disabled.
Conversely, when a peripheral card is installed into the (J4B2) ISA slot, the
(J4B1) PCI slot is disabled.
