12-4 MS-4 Imager User’s Manual

Send

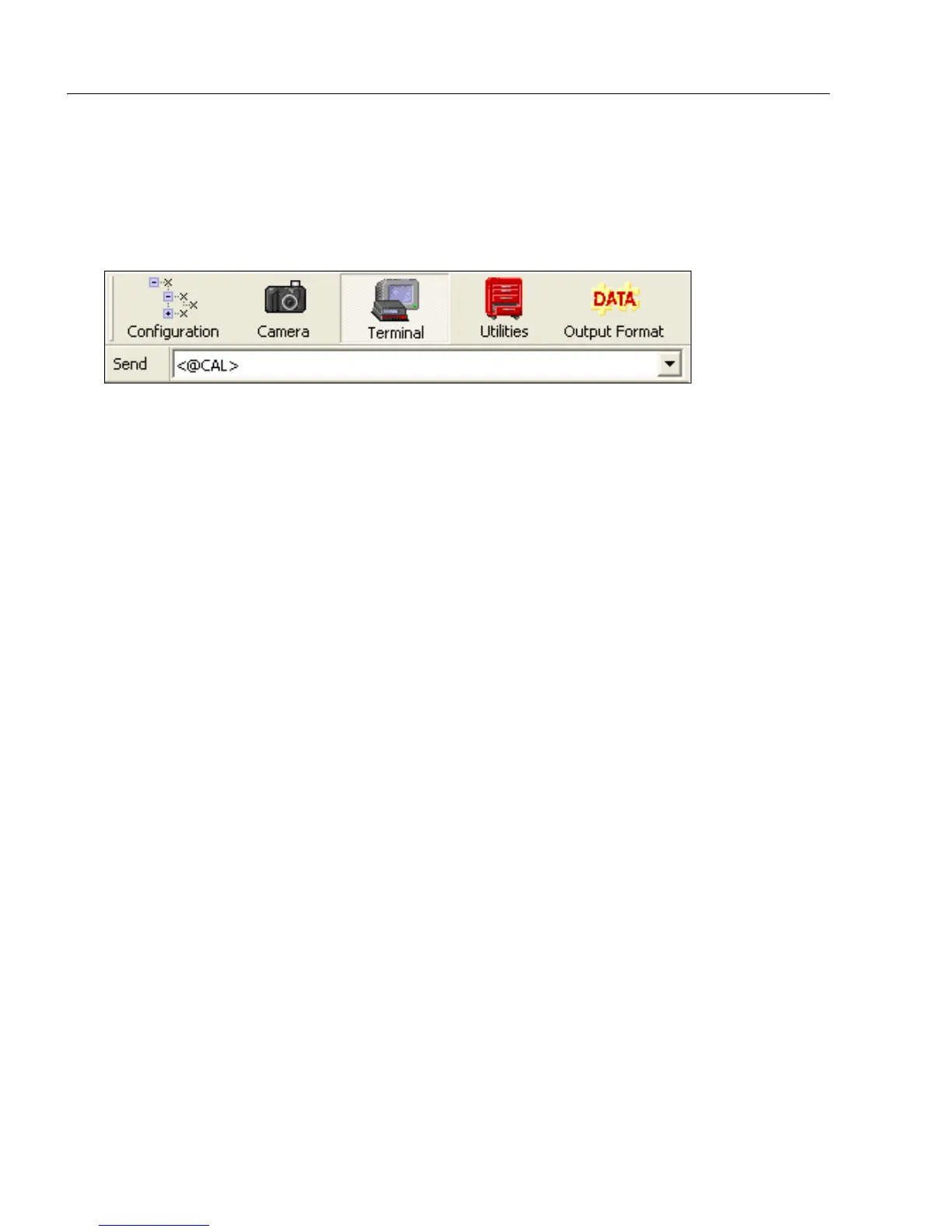

The Send function allows you to enter serial commands and then send them to the

imager.

• Type the command into the Send box.

• Press Enter.

• Click the Send button to the left of the text field to send .
