24 Port Gigabit Ethernet PoE Switch – User Manual Page 39 of 72
________________________________________________________________________
©2014 MICROSENS GmbH & Co. KG – Hamm/Germany www.microsens.com
3-2-10. Mirroring Configuration
Function name
Mirror Configuration
Function description
Mirror Configuration is provided to monitor the traffic in the network. This switch
supports one-port mirror multi-ports. For example, we assume that port A and port
B are source ports, and port C is mirror port respectively, thus, the traffic passing
through port A and port B will be copied to port C for monitor purpose.

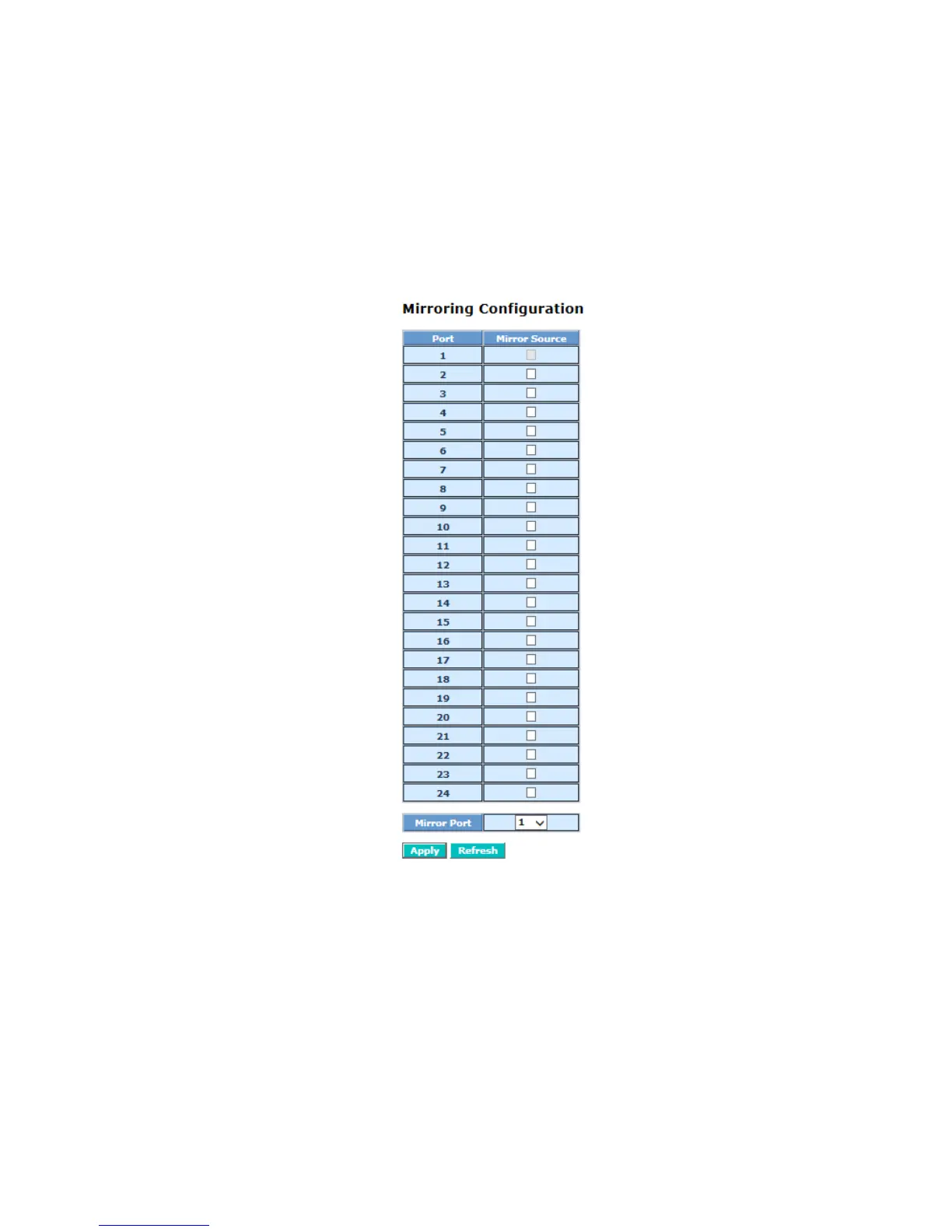

Fig. 3-15 Mirror ports configuration
Parameter description
Source Port:
Set up the port for being monitored. Just tick the check box () beside the port
x and valid port is Port 1~24.
Mirror Port: Use the drop-down menu to select a mirror port.
